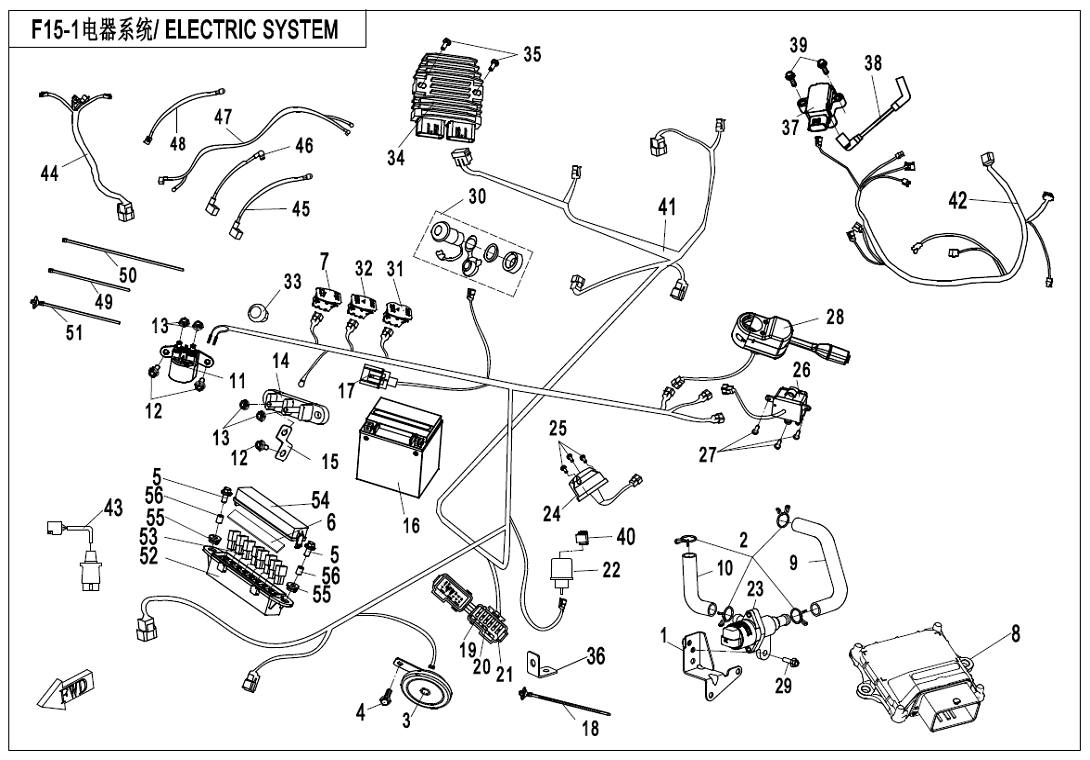

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9GQA-030010
Part Name: BRACKET,STEEPING MOTOR
Alternative parts:
Price: 2,20 € : 2,20 €
-+
02
P/N (SKU): 30601-117010
Part Name: CLAMP A17
Alternative parts:
Specification: A17
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 6050-150500
Part Name: ELECTRIC HORN
Alternative parts:
Price: 7,00 € : 7,00 €
-+
04
P/N (SKU): 30006-080014810
Part Name: BOLT
Alternative parts:
Specification: M8×14
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30016-060016810
Part Name: BOLT
Alternative parts: 30102-060025810
Specification: M6×16
Price: 0,55 € : 0,55 €
06
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER,RELAY BOX COVER
Alternative parts:
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 5UW2-151000
Part Name: STOP SWITCH, ENGINE
Alternative parts:
Price: 9,55 € : 9,55 €
-+
08
P/N (SKU): 0GRB-174000-30000
Part Name: ECU
Alternative parts:
Specification: BOSCH MSE6.0
Price: 185,80 € : 185,80 €
-+
09
P/N (SKU): 9GQA-001001
Part Name: INLET PIPE, STEPPER MOTOR SEAT
Alternative parts:
Price: 15,80 € : 15,80 €
-+
10
P/N (SKU): 9GQA-001002
Part Name: EXHAUST PIPE, STEPPER MOTOR SEAT
Alternative parts:
Price: 9,55 € : 9,55 €
-+
11
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Alternative parts:
Price: 23,30 € : 23,30 €
-+
12
P/N (SKU): 30006-060012810
Part Name: BOLT
Alternative parts:
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 30202-060110
Part Name: NUT
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 7030-151611
Part Name: TERMINAL, CABLE
Alternative parts:
Price: 2,20 € : 2,20 €
-+
15
P/N (SKU): 7030-151612
Part Name: GROUND CONNECTOR
Alternative parts:
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 31023000
Part Name: BATTERY
Alternative parts:
Specification: DYNOVOLT,12V30Ah
Price: 155,00 € : 155,00 €
-+
16
P/N (SKU): 31023004
Part Name: BATTERY
Alternative parts:
Price: 266,90 € : 266,90 €
-+
16
P/N (SKU): 31023002
Part Name: BATTERY
Alternative parts:
Specification: YUASA,12V30Ah
Price: 553,00 € : 553,00 €
-+
17
P/N (SKU): 9CR6-103501
Part Name: FUSE (40A)
Alternative parts:
Specification: 40A
Price: 2,60 € : 2,60 €
-+
18
P/N (SKU): 7030-150005
Part Name: TIE BAND
Alternative parts:
Price: 0,95 € : 0,95 €
-+
19
P/N (SKU): 8080-151301
Part Name: FUSE (5A)
Alternative parts:
Specification: 5A
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 806A-151302
Part Name: FUSE (10A)
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 806A-151305
Part Name: FUSE (15A)
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 5UW2-150340
Part Name: FLASHER
Alternative parts:
Price: 16,50 € : 16,50 €
-+
23
P/N (SKU): 0GQ0-175000
Part Name: STEEPING MOTOR ASSY.
Alternative parts:
Price: 88,50 € : 88,50 €
-+
24
P/N (SKU): 7020-150800
Part Name: POWER SOCKET,TRAILER
Alternative parts:
Specification: ORDINARY
Price: 12,10 € : 12,10 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW
Alternative parts:
Specification: M5×30
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 5UW2-160700
Part Name: SWTICH ASSY.,2WD/4WD
Alternative parts:
Price: 26,40 € : 26,40 €
-+
27
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Alternative parts:
Specification: ST4.8×16
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 7030-160800
Part Name: COMBINATION SWITCH
Alternative parts:
Specification: ORDINARY
Price: 54,00 € : 54,00 €
-+
29
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6×12
Alternative parts:
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
30
P/N (SKU): 7020-150500
Part Name: OUTPUT SEAT,POWER
Alternative parts:
Specification: ORDINARY
Price: 15,20 € : 15,20 €
-+
31
P/N (SKU): 7030-151400
Part Name: OVERRIDING SWITCH
Alternative parts:
Price: 7,35 € : 7,35 €
-+
32
P/N (SKU): 7030-151600
Part Name: ALARM SWITCH
Alternative parts:
Price: 8,10 € : 8,10 €
-+
33
P/N (SKU): 7030-170300
Part Name: BUTTON,CLOCK
Alternative parts:
Specification: WITHOUT WIRE
Price: 9,55 € : 9,55 €
-+
34
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Alternative parts:
Specification: LOW POWER
Price: 102,20 € : 102,20 €
-+
34
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 161,70 € : 161,70 €
-+
35
P/N (SKU): 30006-060030810
Part Name: BOLT
Alternative parts:
Specification: M6×30
Price: 0,55 € : 0,55 €
-+
36
P/N (SKU): 7020-038002
Part Name: BRACKET,FUSE BOX
Alternative parts:
Price: 0,95 € : 0,95 €
-+
37
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Alternative parts:
Price: 35,60 € : 35,60 €
-+
38
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Alternative parts:
Price: 15,30 € : 15,30 €
-+
39
P/N (SKU): 30006-060025810
Part Name: BOLT
Alternative parts:
Specification: M6X25
Price: 0,55 € : 0,55 €
-+
40
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Alternative parts:
Price: 0,55 € : 0,55 €
-+
41
P/N (SKU): 5UR2-150100
Part Name: MAIN CABLE
Alternative parts:
Price: 250,50 € : 250,50 €
-+
42
P/N (SKU): 5UR2-150200
Part Name: AUXILIARY CABLE, EFI
Alternative parts:
Price: 133,00 € : 133,00 €
-+
43
P/N (SKU): 9010-151020
Part Name: JOINT SEAT, TRAILER POWER
Alternative parts:
Price: 13,20 € : 13,20 €
-+
44
P/N (SKU): 7030-150300
Part Name: AUXILIARY CABLE, TAIL LIGHT
Alternative parts:
Specification: ORDINARY STATE
Price: 18,00 € : 18,00 €
-+
45
P/N (SKU): 7030-150510
Part Name: POSITIVE CABLE, BATTERY
Alternative parts:
Price: 17,30 € : 17,30 €
-+
46
P/N (SKU): 7030-150610
Part Name: NEGATIVE CABLE, BATTERY
Alternative parts:
Price: 11,80 € : 11,80 €
-+
47
P/N (SKU): 7030-150520
Part Name: CABLE, STARTER MOTOR
Alternative parts:
Price: 80,90 € : 80,90 €
-+
48
P/N (SKU): 7030-150530
Part Name: CABLE, STARTER RELAY
Alternative parts:
Price: 7,70 € : 7,70 €
-+
49
P/N (SKU): 9010-150004
Part Name: TIE BAND
Alternative parts:
Price: 0,55 € : 0,55 €
-+
50
P/N (SKU): 8010-150003
Part Name: TIE BAND
Alternative parts:
Specification: 5×250
Price: 1,25 € : 1,25 €
-+
51
P/N (SKU): 801F-100101
Part Name: TIE BAND
Alternative parts:
Price: 0,95 € : 0,95 €
-+
52
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Alternative parts:
Price: 7,15 € : 7,15 €
-+
53
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Alternative parts:
Price: 6,65 € : 6,65 €
-+
54
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Alternative parts:
Price: 3,70 € : 3,70 €
-+
54
P/N (SKU): 7020-040412
Part Name: COVER,RELAY BOX
Alternative parts: 7020-040412-10000
Price: 6,10 € : 6,10 €
55
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Alternative parts:
Price: 0,95 € : 0,95 €
-+
56
P/N (SKU): 6090-040303
Part Name: BUSHING
Alternative parts:
Price: 0,55 € : 0,55 €
-+
