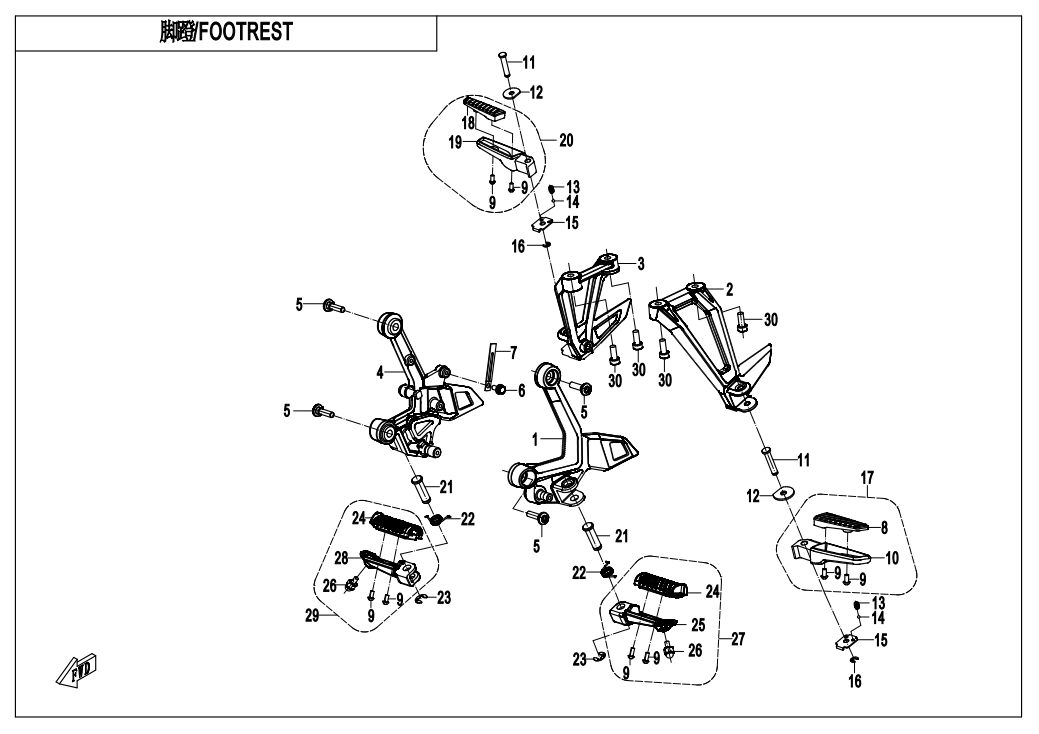

FOOTREST (ABS) - F14-B

No.

01
P/N (SKU): 6KM0-140100
Part Name: BRACKET ASSY., FROTN FOOTREST(LH)
Alternative parts:
Price: 58,90 € : 58,90 €
-+
02
P/N (SKU): 6KM0-140001-10000
Part Name: BRACKET, REAR FOOTREST(LH)
Alternative parts:
Price: 71,10 € : 71,10 €
-+
03
P/N (SKU): 6KM0-140002-10000
Part Name: BRACKET, REAR FOOTREST(RH)
Alternative parts:
Price: 60,70 € : 60,70 €
-+
04
P/N (SKU): 6KM0-140200
Part Name: BRACKET ASSY., FROTN FOOTREST(RH)
Alternative parts:
Price: 63,50 € : 63,50 €
-+
05
P/N (SKU): 6KM0-140103
Part Name: FLANGE BOLT, M8X25
Alternative parts:
Price: 0,95 € : 0,95 €
-+
05
P/N (SKU): 6100-140103
Part Name: BOLT M8X25
Alternative parts:
Specification: M8X25
Price: 4,40 € : 4,40 €
-+
06
P/N (SKU): 30102-060012810
Part Name: SCREW
Alternative parts:
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Alternative parts:
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 6KJ0-140132
Part Name: RUBBER, FOOT PEDAL(LH)
Alternative parts:
Price: 4,40 € : 4,40 €
-+
09
P/N (SKU): 30105-050014410
Part Name: SCREW
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 6KJ0-140151-2V600
Part Name: REAR FOOTREST SEAT, LH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 11,80 € : 11,80 €
-+
11
P/N (SKU): A000-140142
Part Name: PIN SHAFTφ8
Alternative parts:
Specification: φ8
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): A000-140106
Part Name: LOCATING GASKET Ⅱ
Alternative parts:
Price: 0,95 € : 0,95 €
-+
13
P/N (SKU): 5190-037813
Part Name: SPRING
Alternative parts:
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Alternative parts:
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): A000-140104
Part Name: LOCATING GASKET Ⅰ
Alternative parts:
Price: 1,25 € : 1,25 €
-+
16
P/N (SKU): 30802-00605
Part Name: CIRCLIP 6
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 6KJ0-140150-1V600
Part Name: REAR FOOTREST, LH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 17,60 € : 17,60 €
-+
18
P/N (SKU): 6KJ0-140142
Part Name: RUBBER ASSY., FOOTREST(RH)
Alternative parts:
Price: 5,90 € : 5,90 €
-+
19
P/N (SKU): 6KJ0-140161-2V600
Part Name: REAR FOOT PEDAL ASSY, RH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 11,80 € : 11,80 €
-+
20
P/N (SKU): 6KJ0-140160-1V600
Part Name: REAR FOOTREST,RH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 17,60 € : 17,60 €
-+
21
P/N (SKU): A000-140141
Part Name: PIN SHAFTφ12
Alternative parts:
Specification: φ12
Price: 1,85 € : 1,85 €
-+
22
P/N (SKU): A000-140103-10000
Part Name: TORSION SPRING
Alternative parts:
Price: 0,95 € : 0,95 €
-+
23
P/N (SKU): 30802-00903
Part Name: SPLIT WASHER
Alternative parts:
Specification: 9
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 6KM0-140170
Part Name: RUBBERS, FOOTREST
Alternative parts:
Price: 4,80 € : 4,80 €
-+
25
P/N (SKU): 6KM0-140131-1V600
Part Name: FRONT FOOTREST SEAT, LH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 11,40 € : 11,40 €
-+
26
P/N (SKU): A010-140123
Part Name: LIMIT BOLT
Alternative parts:
Price: 4,80 € : 4,80 €
-+
26
P/N (SKU): 6KM0-130123
Part Name: LIMIT BOLT
Alternative parts:
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 6KM0-140130-1V600
Part Name: FRONT FOOT PEDAL ASSY, LH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 29,00 € : 29,00 €
-+
28
P/N (SKU): 6KM0-140141-1V600
Part Name: FRONT FOOTREST SEAT, RH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 11,40 € : 11,40 €
-+
29
P/N (SKU): 6KM0-140140-1V600
Part Name: FRONT FOOT PEDAL ASSY, RH
Alternative parts:
Specification: MATTE SILVER WHITE
Price: 29,00 € : 29,00 €
-+
30
P/N (SKU): 30102-080020810
Part Name: SCREW
Alternative parts:
Specification: M8×20
Price: 0,55 € : 0,55 €
-+
