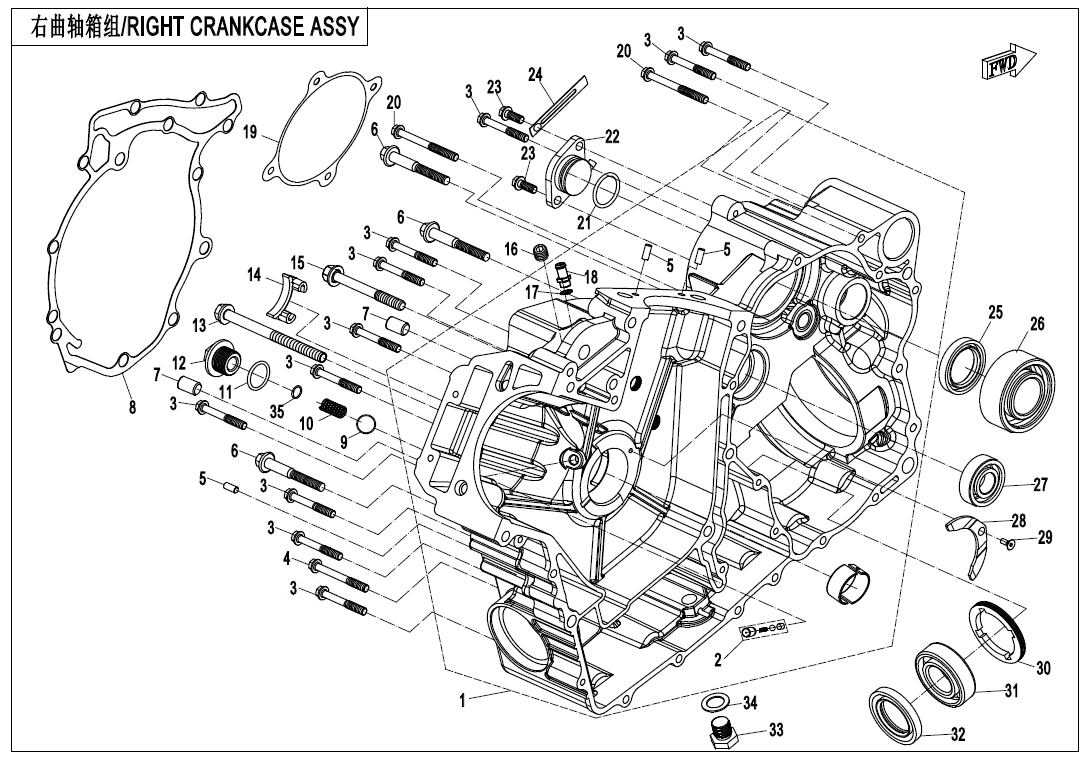

RIGHT CRANKCASE ASSY. - E01-2-B

No.

01
P/N (SKU): 0JWA-012100-20001
Part Name: RH CRANKCASE ASSY
Alternative parts:
Price: 304,70 € : 304,70 €
-+
02
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY.
Alternative parts:
Price: 6,60 € : 6,60 €
-+
03
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6×45
Alternative parts:
Specification: M6×45
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6×55
Alternative parts:
Specification: M6×55
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5×11.8
Alternative parts:
Specification: P5×11.8
Price: 1,05 € : 1,05 €
-+
06
P/N (SKU): 0130-011109-0010
Part Name: BOLT M8×60
Alternative parts:
Specification: M8×60
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 0010-021005
Part Name: DOWEL PIN φ10×14
Alternative parts:
Specification: φ10×14
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0JWA-012001
Part Name: GASKET(1), CVT CASE
Alternative parts:
Price: 3,05 € : 3,05 €
-+
09
P/N (SKU): 3120015
Part Name: STEEL BALL
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0700-012603-1000
Part Name: SPRING,RELIEF VALVE
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0180-332004
Part Name: O-SEAL RING 19×2.5
Alternative parts:
Specification: 19×2.5
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0GR0-014003
Part Name: SCREW PLUG,RELIEF VALVE
Alternative parts:
Price: 2,20 € : 2,20 €
-+
13
P/N (SKU): 0130-011115-0010
Part Name: BOLT M8×106
Alternative parts:
Specification: M8×106
Price: 1,85 € : 1,85 €
-+
14
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Alternative parts:
Price: 1,65 € : 1,65 €
-+
15
P/N (SKU): 0700-012003
Part Name: BOLT M8×73
Alternative parts:
Specification: M8×73
Price: 1,25 € : 1,25 €
-+
16
P/N (SKU): 01A0-012010
Part Name: SCREW
Alternative parts:
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 0010-011008
Part Name: O-SEAL RING 15.8×2.4
Alternative parts:
Specification: 15.8×2.4
Price: 1,05 € : 1,05 €
-+
18
P/N (SKU): 0JWA-080009
Part Name: JIONT, WATER PUMP COVER
Alternative parts:
Price: 3,05 € : 3,05 €
-+
19
P/N (SKU): 0JWA-012002
Part Name: GASKET(2), CVT CASE
Alternative parts:
Price: 2,05 € : 2,05 €
-+
20
P/N (SKU): 0A70-011005
Part Name: BOLT M6×75
Alternative parts:
Specification: M6×75
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 0180-023002
Part Name: O-SEAL RING 24×2.5
Alternative parts:
Specification: 24×2.5
Price: 1,05 € : 1,05 €
-+
22
P/N (SKU): 0800-012200
Part Name: GEAR SENSOR ASSY.
Alternative parts:
Specification: ORDINARY
Price: 16,30 € : 16,30 €
-+
22
P/N (SKU): 0800-012200-1000
Part Name: GEAR SENSOR
Alternative parts:
Specification: SUMITOMO PLUG
Price: 21,30 € : 21,30 €
-+
23
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6×16
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Alternative parts:
Price: 0,55 € : 0,55 €
-+
25
P/N (SKU): 0180-012006
Part Name: OIL SEAL 30×45×7
Alternative parts:
Specification: 30×45×7
Price: 5,10 € : 5,10 €
-+
26
P/N (SKU): 30499-03000
Part Name: BEARING
Alternative parts:
Specification: 5206
Price: 66,10 € : 66,10 €
-+
27
P/N (SKU): 30400-01704
Part Name: BEARING
Alternative parts:
Specification: 17
Price: 9,55 € : 9,55 €
-+
28
P/N (SKU): 0800-011003
Part Name: THRUST WASHER, CRANKCASE
Alternative parts:
Price: 5,15 € : 5,15 €
-+
29
P/N (SKU): 30122-040010850
Part Name: SCREW
Alternative parts:
Specification: M4×10
Price: 1,25 € : 1,25 €
-+
30
P/N (SKU): 0JWA-012004
Part Name: MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFT
Alternative parts:
Price: 6,60 € : 6,60 €
-+
31
P/N (SKU): 30400-02501
Part Name: BEARING
Alternative parts:
Specification: 25
Price: 5,15 € : 5,15 €
-+
32
P/N (SKU): 0010-011002
Part Name: OIL SEAL 25×40×8
Alternative parts:
Specification: 25×40×8
Price: 3,30 € : 3,30 €
-+
33
P/N (SKU): 0JWA-012200
Part Name: OIL DRAIN BOLT M14×1.5
Alternative parts:
Specification: M14×1.5
Price: 2,60 € : 2,60 €
-+
34
P/N (SKU): 0JWA-012003
Part Name: SPACER 14.1×22×1
Alternative parts:
Specification: 14.1×22×1
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 30304-050440
Part Name: WASHER
Remarks: USE AS MANY AS NEEDED
Alternative parts:
Price: 0,55 € : 0,55 €
-+
