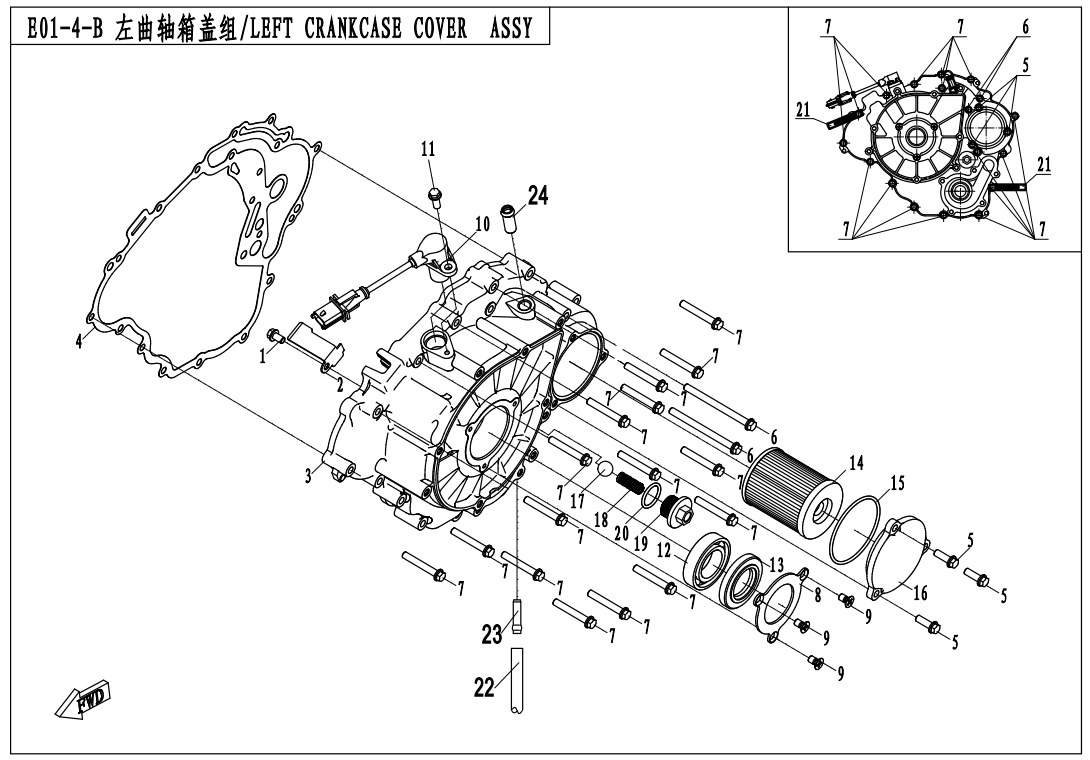

LEFT CRANKCASE COVER ASSY.(WITH RECOIL START) - E01-4-B

No.

01
P/N (SKU): 0010-080010-0010
Part Name: BOLT M6x10
Alternative parts:
Specification: M6x10
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0GR0-014005
Part Name: PLATE
Alternative parts:
Price: 0,95 € : 0,95 €
-+
03
P/N (SKU): 0GR0-014001-10000
Part Name: CRANKCASE COVER, LH
Alternative parts:
Price: 68,10 € : 68,10 €
-+
04
P/N (SKU): 0GR0-014002
Part Name: GASKET, LH CRANKCASE COVER
Alternative parts:
Price: 6,05 € : 6,05 €
-+
05
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Alternative parts:
Specification: M6x18
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 0A70-011005
Part Name: BOLT M6x75
Alternative parts:
Specification: M6x75
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Alternative parts:
Specification: M6x40
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0180-014007-0010
Part Name: PRESS PLATE, OIL SEAL
Alternative parts:
Price: 4,05 € : 4,05 €
-+
09
P/N (SKU): 0180-014009-00001
Part Name: SCREW, PRESS PLATE
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0800-014100-1000
Part Name: RPM SENSOR
Alternative parts:
Specification: SUMITOMO PLUG
Price: 18,30 € : 18,30 €
-+
10
P/N (SKU): 0800-014100
Part Name: RPM SENSOR
Alternative parts:
Specification: ORDINARY
Price: 16,20 € : 16,20 €
-+
11
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 30400-02800
Part Name: BEARING
Alternative parts:
Price: 9,50 € : 9,50 €
-+
13
P/N (SKU): 0180-014008
Part Name: OIL SEAL 28x52x7
Alternative parts:
Specification: 28x52x7
Price: 5,15 € : 5,15 €
-+
14
P/N (SKU): 0800-011300-0004
Part Name: OIL FILTER, ENGINE
Alternative parts:
Specification: BENGBU JINWEI
Price: 9,15 € : 9,15 €
-+
15
P/N (SKU): 0800-014003
Part Name: O-SEAL RING 63x2.5
Alternative parts:
Specification: 63x2.5
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 0800-014002
Part Name: FILTER CAP
Alternative parts:
Price: 4,05 € : 4,05 €
-+
17
P/N (SKU): 3120015
Part Name: STEEL BALL
Alternative parts:
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 0700-012603-1000
Part Name: SPRING, RELIEF VALVE
Alternative parts:
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0GR0-014003
Part Name: SCREW PLUG, RELIEF VALVE
Alternative parts:
Price: 2,20 € : 2,20 €
-+
20
P/N (SKU): 0180-332004
Part Name: O-SEAL RING 19x2.5
Alternative parts:
Specification: 19x2.5
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Alternative parts:
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 0800-014013
Part Name: OVERFLOW HOSE
Alternative parts:
Price: 0,95 € : 0,95 €
-+
23
P/N (SKU): 01A0-022102
Part Name: PIPE JOINT
Alternative parts:
Price: 1,25 € : 1,25 €
-+
24
P/N (SKU): 0010-013006-0010
Part Name: JOINT, BREATHER HOSE
Alternative parts:
Price: 0,95 € : 0,95 €
-+
