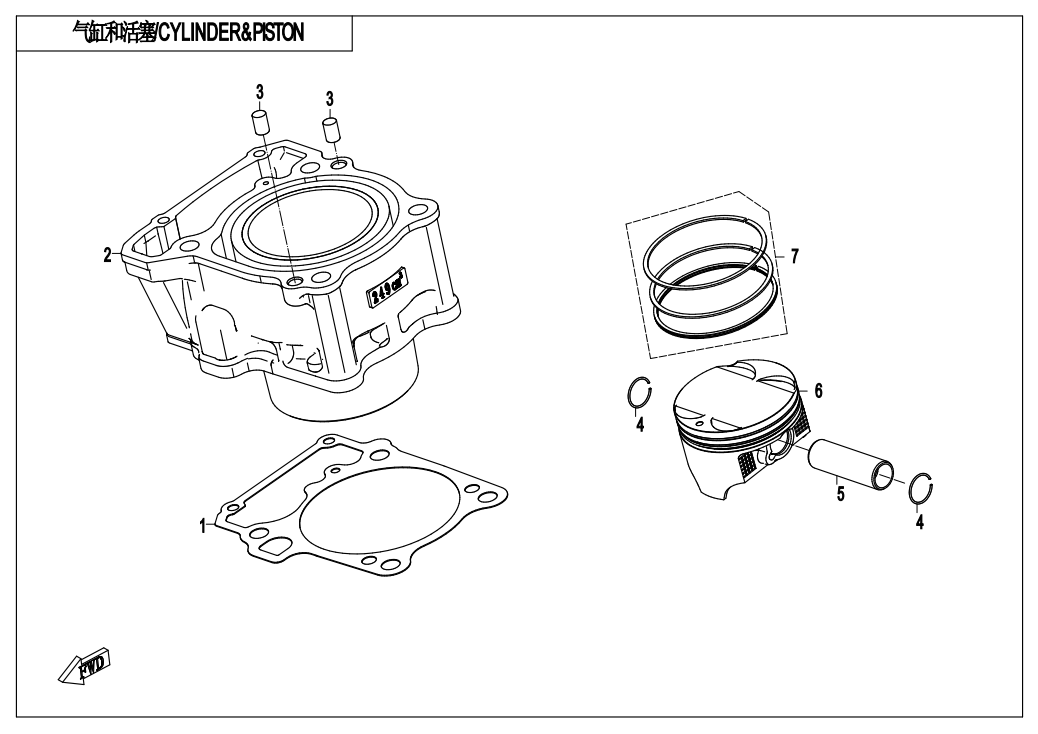

CYLINDER @^ PISTON - E02-3

No.

01
P/N (SKU): 0DM0-023001-10000
Part Name: SEAL GASKET, CYLINDER
Effective: 2024-09-10
Alternative parts:
Price: 4,80 € : 4,80 €
-+
02
P/N (SKU): 0DNV-023100-4000-Q0-0BP01
Part Name: CYLINDER BODY ASSY
Effective: 2024-09-10
Remarks: Ⅰ
Alternative parts:
Price: 0,00 € : 0,00 €
-+
02
P/N (SKU): 0DNV-023100-4000-Q0-0BP02
Part Name: CYLINDER BODY ASSY
Effective: 2024-09-10
Remarks: Ⅱ
Alternative parts:
Price: 0,00 € : 0,00 €
-+
03
P/N (SKU): 30410-00800
Part Name: ROLLER
Effective: 2024-09-10
Alternative parts:
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 0110-040006-0050
Part Name: CIRCLIP, PISTON PIN
Effective: 2024-09-10
Alternative parts:
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 0DN0-040008
Part Name: PISTON PIN
Effective: 2024-09-10
Alternative parts:
Price: 3,70 € : 3,70 €
-+
06
P/N (SKU): 0DNV-040007-4000-Q0-00001
Part Name: PISTON
Effective: 2024-09-10
Alternative parts:
Price: 0,00 € : 0,00 €
-+
06
P/N (SKU): 0DNV-040007-4000-Q0-00002
Part Name: PISTON
Effective: 2024-09-10
Alternative parts:
Price: 0,00 € : 0,00 €
-+
07
P/N (SKU): 0DN0-0401A0
Part Name: PISTON RING ASSY
Effective: 2024-09-10
Alternative parts:
Price: 20,20 € : 20,20 €
-+
