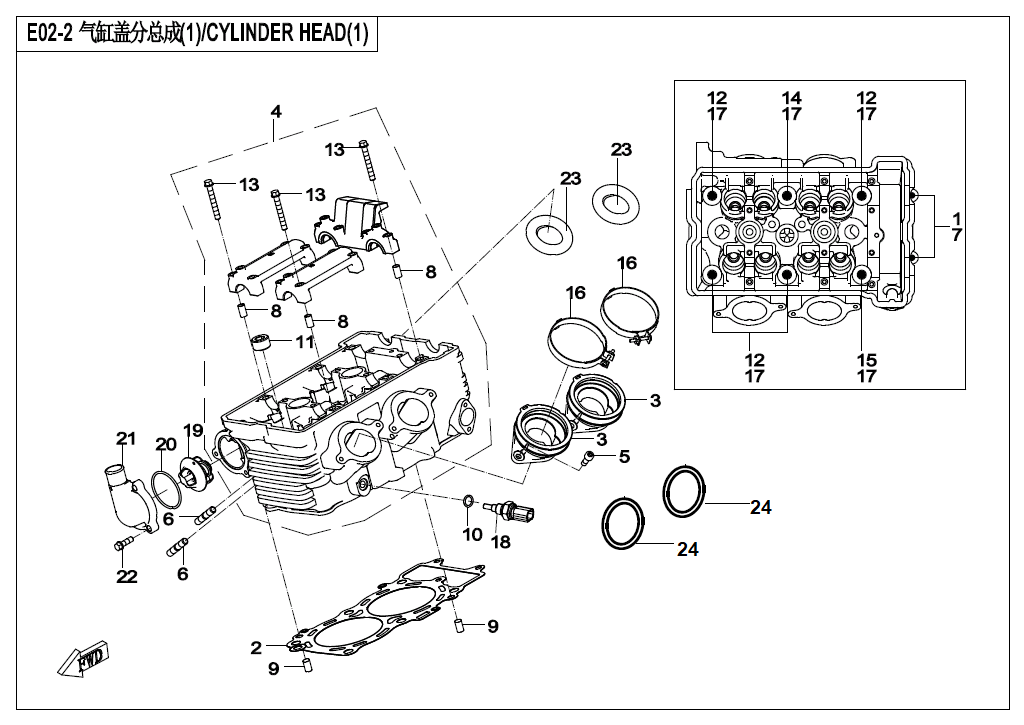

CYLINDER HEAD(1) - E02-2

No.

01
P/N (SKU): 0HU0-022002
Part Name: INNER HEX SCREW M6x30
Effective: 2023-11-21
Alternative parts:
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0700-022100-0001
Part Name: CYLINDER HEAD GASKET ASSY
Effective: 2023-11-21
Alternative parts:
Price: 31,20 € : 31,20 €
-+
03
P/N (SKU): 0700-022320-20000
Part Name: AIR INLET PIPE ASSY
Effective: 2023-11-21
Alternative parts:
Price: 16,30 € : 16,30 €
-+
04
P/N (SKU): 0HU0-022200-3BY02
Part Name: CYLINDER HEAD ASSY
Effective: 2023-11-21
Remarks: for CF700-2C
Alternative parts:
Specification: NANO BLACK
Price: 256,51 € : 256,51 €
-+
04
P/N (SKU): 0HU0-022200-3BP01
Part Name: CYLINDER HEAD
Effective: 2023-11-21
Remarks: CF700-2A
Alternative parts:
Price: 492,90 € : 492,90 €
-+
04
P/N (SKU): 0HU0-022200-3BY01
Part Name: CYLINDER HEAD
Effective: 2024-04-08
Remarks: CF700-2C
Alternative parts:
Price: 249,75 € : 249,75 €
-+
04
P/N (SKU): 0HU0-022200-3BP02
Part Name: CYLINDER HEAD ASSY
Effective: 2024-04-08
Remarks: CF700-2A
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 256,51 € : 256,51 €
-+
04
P/N (SKU): 0HU0-022200-3BP03
Part Name: CYLINDER HEAD ASSY
Effective: 2024-09-12
Remarks: CF700-2A
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
-+
05
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2023-11-21
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2023-11-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 0060-030004-0030
Part Name: WASHER
Effective: 2023-11-21
Alternative parts:
Specification: 6x10.4x1.6
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2023-11-21
Alternative parts:
Specification: 8X14
Price: 1,05 € : 1,05 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2023-11-21
Alternative parts:
Specification: 8x14
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0700-022019
Part Name: WASHER
Effective: 2023-11-21
Alternative parts:
Specification: 12.5x20x1
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 0700-022236
Part Name: PLUG, PT1/2
Effective: 2023-11-21
Alternative parts:
Price: 1,10 € : 1,10 €
-+
12
P/N (SKU): 0700-022013-00001
Part Name: CYLINDER HEAD BOLT
Effective: 2023-11-21
Alternative parts:
Specification: M10x158@GALVANIZED TR
Price: 2,95 € : 2,95 €
-+
13
P/N (SKU): 0700-022204
Part Name: HEX FLANGE BOLT M6x45
Effective: 2023-11-21
Alternative parts:
Specification: M6X45
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 0700-022014-10001
Part Name: CYLINDER HEAD BOLT
Effective: 2023-11-21
Alternative parts:
Specification: M10x176@GALVANIZED TRIVALENT CH
Price: 2,95 € : 2,95 €
-+
15
P/N (SKU): 0700-022015-00002
Part Name: CYLINDER HEAD BOLT
Effective: 2023-11-21
Alternative parts:
Price: 1,85 € : 1,85 €
-+
16
P/N (SKU): 0700-022330
Part Name: CLAMP, AIR INLET PIPE
Effective: 2023-11-21
Alternative parts:
Price: 2,60 € : 2,60 €
-+
17
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2023-11-21
Alternative parts:
Specification: 10.5x19x2.3
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 018B-022810
Part Name: WATER TEMPERATURE SENSOR
Effective: 2023-11-21
Alternative parts:
Price: 26,50 € : 26,50 €
-+
19
P/N (SKU): 0700-022500-0001
Part Name: THERMOSTAT
Effective: 2023-11-21
Alternative parts:
Price: 12,10 € : 12,10 €
-+
20
P/N (SKU): 0700-022011
Part Name: O-RING
Effective: 2023-11-21
Alternative parts:
Specification: 44.5x2.5
Price: 1,85 € : 1,85 €
-+
21
P/N (SKU): 0HU0-022009-0BP00
Part Name: THERMOSTAT CAP
Effective: 2023-11-21
Remarks: for CF700-2A
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 7,00 € : 7,00 €
-+
21
P/N (SKU): 0HU0-022009-0BY00
Part Name: THERMOSTAT CAP
Effective: 2023-11-21
Remarks: for CF700-2C
Alternative parts:
Specification: NANO BLACK
Price: 7,00 € : 7,00 €
-+
22
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2023-11-21
Alternative parts:
Specification: M6x20
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 0700-022012
Part Name: GASKET, EXHAUST PIPE
Effective: 2023-11-21
Alternative parts:
Price: 1,25 € : 1,25 €
-+
24
P/N (SKU): 0MQ0-022301
Part Name: O-RING 47.5x2.5
Effective: 2023-11-21
Alternative parts:
Price: 1,65 € : 1,65 €
-+
