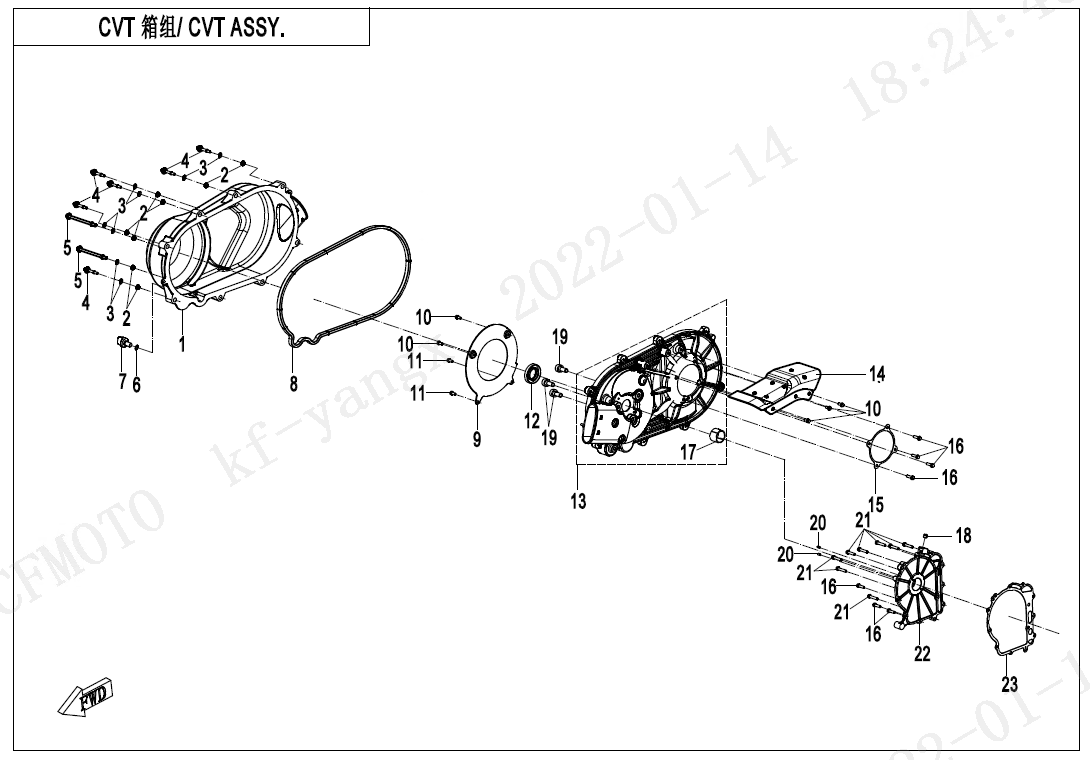

CVT CASE ASSY. - E01-3

No.

1
P/N (SKU): 0GSV-013201-3001
Part Name: CVT COVER
Effective: 2023-05-22
Alternative parts:
Price: 86,40 € : 86,40 €
-+
2
P/N (SKU): 0800-021102-10000
Part Name: RUBBER WASHER
Effective: 2023-05-22
Alternative parts:
Price: 0,95 € : 0,95 €
-+
3
P/N (SKU): 0800-021103
Part Name: CAP, RUBBER WASHER
Effective: 2023-05-22
Alternative parts:
Price: 0,55 € : 0,55 €
-+
4
P/N (SKU): 0GSV-013004-3000
Part Name: CVT COVER BOLT 1
Effective: 2023-05-22
Alternative parts:
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0GSV-013002-3001
Part Name: CVT COVER BOLT
Effective: 2023-05-22
Alternative parts:
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 0700-012701
Part Name: O-SEAL RING
Effective: 2023-05-22
Alternative parts:
Specification: 10x2
Price: 0,95 € : 0,95 €
-+
7
P/N (SKU): 0JWV-013202-6000
Part Name: DRAIN BOLT
Effective: 2023-05-22
Alternative parts:
Price: 1,25 € : 1,25 €
-+
8
P/N (SKU): 0GSV-013104-3000
Part Name: GASKET, CVT COVER
Effective: 2023-05-22
Alternative parts:
Price: 5,50 € : 5,50 €
-+
9
P/N (SKU): 0GSV-013103-3000
Part Name: WIND GUARD
Effective: 2023-05-22
Alternative parts:
Price: 7,00 € : 7,00 €
-+
10
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2023-05-22
Alternative parts:
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 0010-013008-0010
Part Name: BOLT M6x35
Effective: 2023-05-22
Alternative parts:
Specification: M6x35
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL
Effective: 2023-05-22
Alternative parts:
Specification: 32X55X10
Price: 4,60 € : 4,60 €
-+
13
P/N (SKU): 0GSV-0131A0
Part Name: CVT CASE
Effective: 2023-05-22
Alternative parts:
Price: 128,10 € : 128,10 €
-+
14
P/N (SKU): 0GSV-013102-3000
Part Name: HEAT INSULATOR, CVT
Effective: 2023-05-22
Alternative parts:
Price: 12,50 € : 12,50 €
-+
15
P/N (SKU): 0800-012002-10000
Part Name: GASKET 2, CVT CASE
Effective: 2023-05-22
Alternative parts:
Price: 2,60 € : 2,60 €
-+
16
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2023-05-22
Alternative parts:
Specification: M6x20
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 0JY0-013102-00011
Part Name: PLAIN BEARING, CVT
Effective: 2023-05-22
Alternative parts:
Specification: RED
Price: 6,60 € : 6,60 €
-+
17
P/N (SKU): 0JY0-013102-00021
Part Name: PLAIN BEARING, CVT
Effective: 2023-05-22
Alternative parts:
Specification: BLUE
Price: 6,60 € : 6,60 €
-+
18
P/N (SKU): 01A0-012010-00001
Part Name: SCREW
Effective: 2023-05-22
Alternative parts:
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 30102-080020810
Part Name: SCREW M8x20
Effective: 2023-05-22
Alternative parts:
Specification: M8x20
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2023-05-22
Alternative parts:
Specification: 8X14
Price: 1,05 € : 1,05 €
-+
21
P/N (SKU): 0010-070003-00002
Part Name: BOLT
Effective: 2023-05-22
Alternative parts:
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 0GSV-015001-3001
Part Name: RH CRANKCASE COVER
Effective: 2023-05-22
Alternative parts:
Price: 35,90 € : 35,90 €
-+
23
P/N (SKU): 0GR0-013001-20000
Part Name: STEEL GASKET, CVT CASE
Effective: 2023-05-22
Alternative parts:
Price: 5,90 € : 5,90 €
-+
