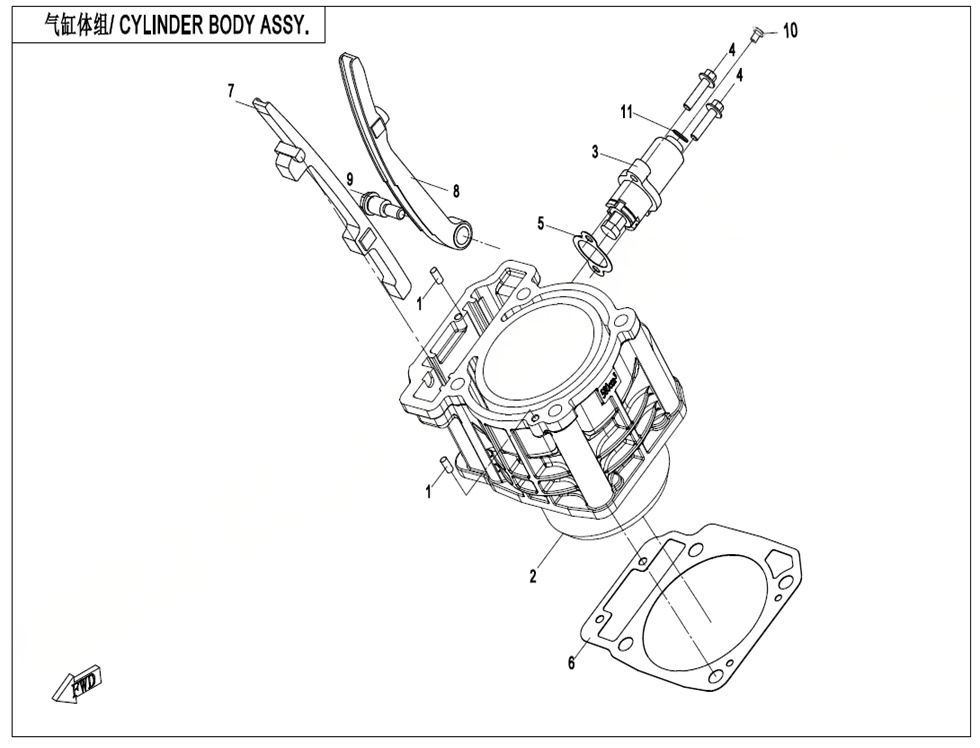

CYLINDER BODY ASSY. - E02-3-V2

CYLINDER BODY ASSY. - E02-3-V2

No.

01
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE
Effective: 2023-10-19
Alternative parts:
Specification: P5x11.8
Price: 1,05 € : 1,05 €
-+
02
P/N (SKU): 0GR0-023100-20011
Part Name: CYLINDER BODY ASSY
Effective: 2023-10-19
Alternative parts:
Specification: GROUP 1
Price: 105,90 € : 105,90 €
-+
02
P/N (SKU): 0GR0-023100-20021
Part Name: CYLINDER BODY ASSY
Effective: 2023-10-19
Alternative parts:
Specification: GROUP 2
Price: 105,90 € : 105,90 €
-+
03
P/N (SKU): 0GS0-023200-00001
Part Name: TENSIONER ASSY
Effective: 2023-10-19
Alternative parts:
Price: 20,20 € : 20,20 €
-+
04
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2023-10-19
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 0180-023003
Part Name: TENSIONER GASKET
Effective: 2023-10-19
Alternative parts:
Price: 1,05 € : 1,05 €
-+
06
P/N (SKU): 0GR0-023001
Part Name: GASKET, CYLINDER BODY
Effective: 2023-10-19
Alternative parts:
Price: 1,65 € : 1,65 €
-+
07
P/N (SKU): 0GR0-023300
Part Name: CHAIN GUIDE BLOCK
Effective: 2023-10-19
Alternative parts:
Price: 9,15 € : 9,15 €
-+
08
P/N (SKU): 0GR0-023200
Part Name: TENSION PLATE
Effective: 2023-10-19
Alternative parts:
Price: 14,30 € : 14,30 €
-+
09
P/N (SKU): 0700-024008-00001
Part Name: PIN SHAFT
Effective: 2023-10-19
Alternative parts:
Price: 1,25 € : 1,25 €
-+
10
P/N (SKU): 0JYA-023001-00001
Part Name: HEX FLANGE BOLT
Effective: 2023-10-19
Alternative parts:
Specification: M6x6@GALVANIZED TRIVALEN
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 0700-011202
Part Name: O-SEAL RING
Effective: 2023-10-19
Alternative parts:
Specification: 8.2x1.90
Price: 0,95 € : 0,95 €
-+
