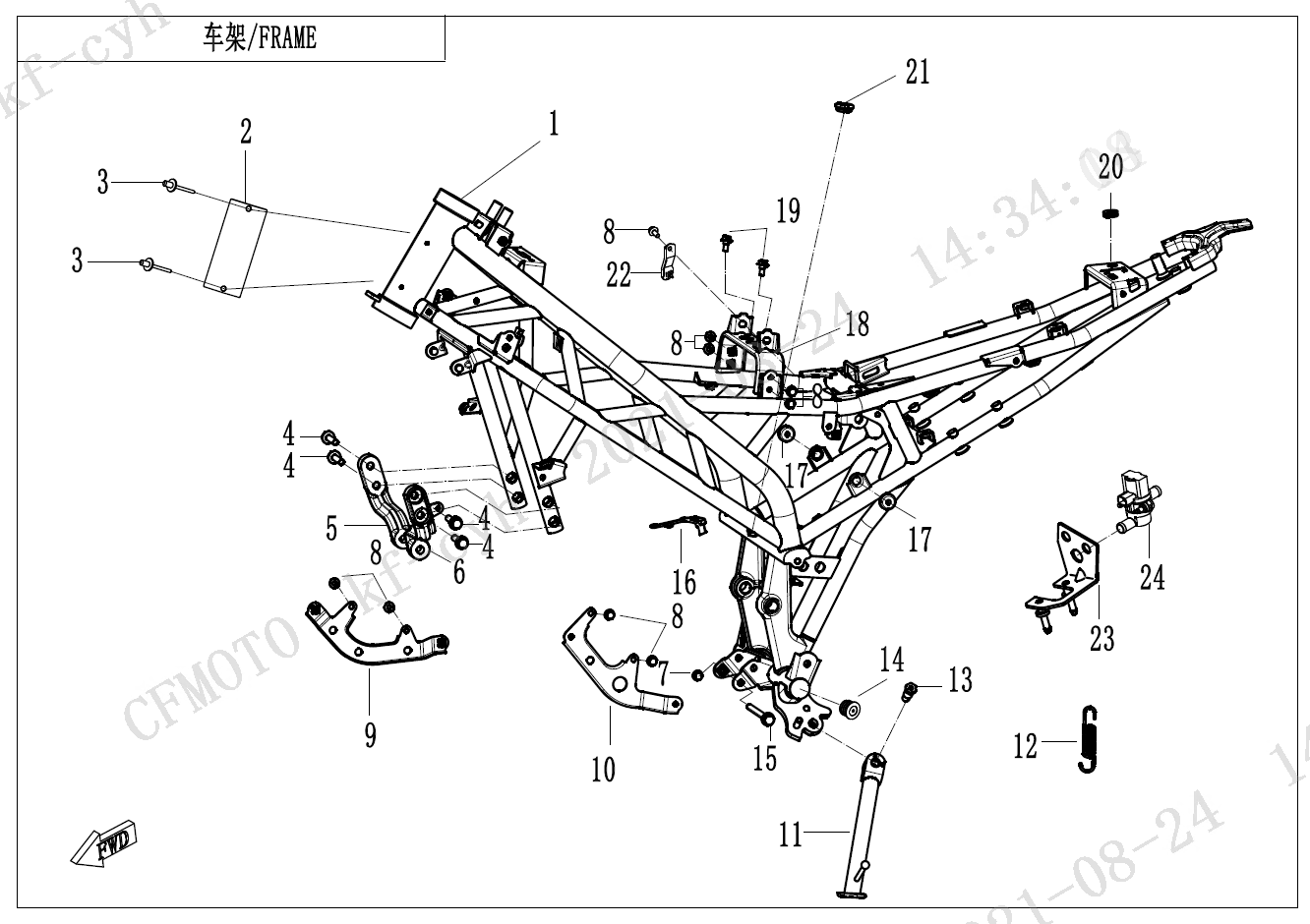

FRAME - F03-1

FRAME - F03-1

No.

01
P/N (SKU): 6KMV-031000-B001-01-0BP00
Part Name: MAIN FRAME ASSY
Effective: 2022-12-12
Alternative parts: 6KMV-031000-B002-01-0BP00
Specification: MAUD SPIRIT BLACK
Price: 808,00 € : 808,00 €
01
P/N (SKU): 6KMV-031000-B002-01-0BP00
Part Name: FRONT FRAME ASSY
Effective: 2023-09-08
Alternative parts:
Price: 763,20 € : 763,20 €
-+
01
P/N (SKU): 6KMV-031000-B002-01-0EK00
Part Name: FRONT FRAME ASSY
Effective: 2023-09-08
Alternative parts:
Price: 969,90 € : 969,90 €
-+
02
P/N (SKU): 6KNV-190011-9000
Part Name: VEHICLE PLATE
Effective: 2022-12-12
Alternative parts:
Price: 0,95 € : 0,95 €
-+
02
P/N (SKU): 6KMA-191004
Part Name: VIN PLATE
Effective: 2022-12-12
Remarks: Australia
Alternative parts:
Specification: FOR AUSTRIALIA
Price: 2,20 € : 2,20 €
-+
03
P/N (SKU): 30902-0400820
Part Name: BLIND RIVET
Effective: 2022-12-12
Alternative parts: 30902-0401320
Specification: 4x8
Price: 0,55 € : 0,55 €
04
P/N (SKU): 6KM0-140107
Part Name: BOLT
Effective: 2022-12-12
Alternative parts:
Specification: M8
Price: 0,95 € : 0,95 €
-+
05
P/N (SKU): 6KM0-030006-1B200
Part Name: RH MOUNTING BRACKET, ENGINE
Effective: 2022-12-12
Alternative parts:
Specification: MATTE BLACK
Price: 21,60 € : 21,60 €
-+
06
P/N (SKU): 6KM0-030005-1B200
Part Name: LH MOUNTING BRACKET, ENGINE
Effective: 2022-12-12
Alternative parts:
Specification: MATTE BLACK
Price: 21,60 € : 21,60 €
-+
07
P/N (SKU): 30006-102110110
Part Name: BOLT M10x1.25x110
Effective: 2022-12-12
Alternative parts:
Specification: M10x1.25x110
Price: 2,05 € : 2,05 €
-+
08
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2022-12-12
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 6KM0-030020-0B200
Part Name: BRACKET, ENGINE RH PANEL
Effective: 2022-12-12
Alternative parts:
Specification: MATTE BLACK
Price: 6,25 € : 6,25 €
-+
10
P/N (SKU): 6KM0-030010-0B200
Part Name: BRACKET, ENGINE LH PANEL
Effective: 2022-12-12
Alternative parts:
Specification: MATTE BLACK
Price: 5,90 € : 5,90 €
-+
11
P/N (SKU): 6KMV-030200-B000
Part Name: SIDE BRACKET ASSY
Effective: 2022-12-12
Alternative parts:
Price: 8,80 € : 8,80 €
-+
12
P/N (SKU): A000-030210
Part Name: SIDE STAND SPRING ASSY
Effective: 2022-12-12
Alternative parts:
Price: 4,80 € : 4,80 €
-+
13
P/N (SKU): 6KMV-030006-8500
Part Name: SIDE BRACKET BOLT
Effective: 2022-12-12
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6KJ0-030503
Part Name: RUBBER PLUG
Effective: 2022-12-12
Alternative parts:
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 30006-080090810
Part Name: BOLT M8x90
Effective: 2022-12-12
Alternative parts:
Specification: M8x90
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 6KMV-030030-9000
Part Name: BRACKET, SOLENOID VALVE
Effective: 2022-12-12
Alternative parts:
Price: 2,95 € : 2,95 €
-+
17
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2022-12-12
Alternative parts:
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 6KM0-030100-2B200
Part Name: REAR MOUNTING ASSY,FUEL TANK
Effective: 2022-12-12
Alternative parts:
Specification: MATTE BLACK
Price: 18,00 € : 18,00 €
-+
19
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2022-12-12
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
20
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2022-12-12
Alternative parts:
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2022-12-12
Alternative parts:
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 6KM0-030050-0B200
Part Name: ABS BRACKET
Effective: 2022-12-12
Alternative parts:
Specification: MATTE BLACK
Price: 2,60 € : 2,60 €
-+
23
P/N (SKU): 6KMV-030010-9001
Part Name: BRACKET, AIS VALVE
Effective: 2022-12-12
Alternative parts:
Price: 4,80 € : 4,80 €
-+
24
P/N (SKU): 0HU0-179000
Part Name: GULP VALVE
Effective: 2022-12-12
Alternative parts:
Price: 50,90 € : 50,90 €
-+
