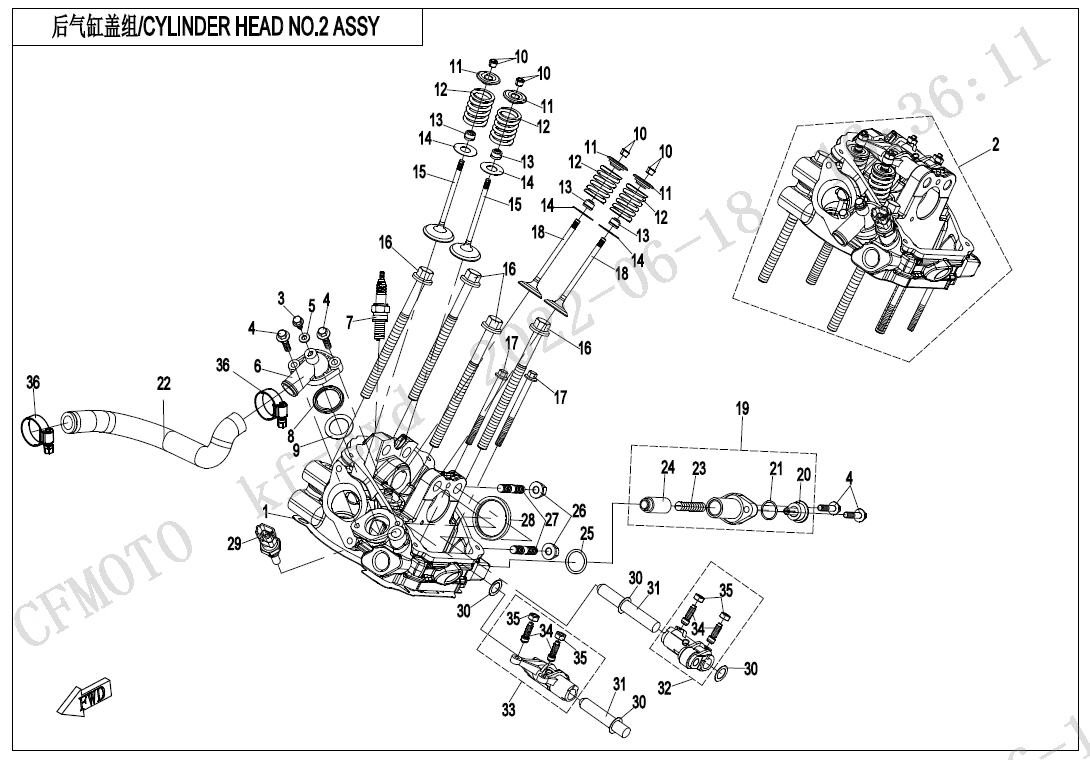

CYLINDER HEAD NO.2 ASSY - E02-6-V2

CYLINDER HEAD NO.2 ASSY - E02-6-V2

No.

01
P/N (SKU): 0800-022200-00002
Part Name: GASKET, CYLINDER HEAD
Effective: 2022-07-16
Alternative parts:
Price: 12,50 € : 12,50 €
-+
02
P/N (SKU): 0JWD-026100
Part Name: CYLINDER HEAD ASSY, SECOND CYLINDER
Effective: 2022-07-16
Alternative parts:
Price: 201,30 € : 201,30 €
-+
03
P/N (SKU): 30138-550160050
Part Name: SCREW
Effective: 2022-07-16
Alternative parts:
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2022-07-16
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 0800-022011
Part Name: WASHER 5.3x11x1.5
Effective: 2022-07-16
Alternative parts: 0800-022011-00001
Specification: 5.3x11x1.5
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 0800-022013-10000
Part Name: THERMOSTAT CAP
Effective: 2022-07-16
Alternative parts:
Price: 3,70 € : 3,70 €
-+
07
P/N (SKU): 0JWV-170200-7000
Part Name: SPARK PLUG
Effective: 2022-07-16
Alternative parts:
Price: 26,80 € : 26,80 €
-+
08
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2022-07-16
Alternative parts:
Price: 2,05 € : 2,05 €
-+
09
P/N (SKU): 0800-026002
Part Name: WASHER 20.5x30x0.8
Effective: 2022-07-16
Alternative parts:
Specification: 20.5x30x0.8
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0800-022006-10000
Part Name: SPRING, VALVE
Effective: 2022-07-16
Alternative parts: 0800-022006-10001
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0800-022006-10001
Part Name: VALVE SPRING
Effective: 2023-04-08
Alternative parts:
Price: 1,85 € : 1,85 €
-+
13
P/N (SKU): 0010-022500-10000
Part Name: SEAL RING, VALVE STEM
Effective: 2022-07-16
Alternative parts:
Price: 1,55 € : 1,55 €
-+
14
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2022-07-16
Alternative parts:
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2022-07-16
Alternative parts:
Price: 12,20 € : 12,20 €
-+
16
P/N (SKU): 0800-022003-00001
Part Name: CYLINDER BOLT
Effective: 2022-07-16
Alternative parts:
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,60 € : 2,60 €
-+
17
P/N (SKU): 0800-022009-00001
Part Name: BOLT M6x80
Effective: 2022-07-16
Alternative parts:
Specification: M6x80
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 0800-022005
Part Name: VALVE, EXHAUST
Effective: 2022-07-16
Alternative parts:
Price: 12,20 € : 12,20 €
-+
19
P/N (SKU): 0800-022400-10000
Part Name: TENSIONER
Effective: 2022-07-16
Alternative parts:
Price: 12,50 € : 12,50 €
-+
20
P/N (SKU): 0800-022402
Part Name: SCREW PLUG, TENSIONER
Effective: 2022-07-16
Alternative parts:
Price: 3,30 € : 3,30 €
-+
21
P/N (SKU): 0800-022407
Part Name: O-RING
Effective: 2022-07-16
Alternative parts:
Specification: 17x1.45
Price: 1,25 € : 1,25 €
-+
22
P/N (SKU): 0JYA-026001
Part Name: CONNECTING PIPE, FRONT @^ REAR CYLINDER
Effective: 2022-07-16
Alternative parts:
Price: 5,90 € : 5,90 €
-+
23
P/N (SKU): 0800-022405
Part Name: SPRING, CHAIN TENSIONER
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0800-022410
Part Name: PLUNGER, CHAIN TENSIONER
Effective: 2022-07-16
Alternative parts:
Price: 1,85 € : 1,85 €
-+
25
P/N (SKU): 0800-022017
Part Name: SEAL RING, TENSIONER
Effective: 2022-07-16
Alternative parts:
Specification: 20.8x2.4
Price: 1,55 € : 1,55 €
-+
26
P/N (SKU): 0010-011700-0010
Part Name: FLANGE NUT M8
Effective: 2022-07-16
Alternative parts: 8010-020001
Specification: M8
Price: 0,55 € : 0,55 €
27
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2022-07-16
Alternative parts:
Price: 0,95 € : 0,95 €
-+
28
P/N (SKU): 0800-022300
Part Name: BUSHING, EXHAUST PIPE
Effective: 2022-07-16
Alternative parts:
Price: 3,30 € : 3,30 €
-+
29
P/N (SKU): 018B-022810
Part Name: WATER TEMPERATURE SENSOR
Effective: 2022-07-16
Alternative parts:
Price: 26,50 € : 26,50 €
-+
30
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2022-07-16
Alternative parts:
Specification: 12.3x18.5x0.5
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2022-07-16
Alternative parts:
Price: 3,30 € : 3,30 €
-+
32
P/N (SKU): 0800-022600-20000
Part Name: ROCKER ARM ASSY, AIR EXHAUST
Effective: 2022-07-16
Alternative parts:
Price: 27,50 € : 27,50 €
-+
33
P/N (SKU): 0800-022500-20000
Part Name: ROCKER ARM ASSY, AIR INTAKE
Effective: 2022-07-16
Alternative parts:
Price: 26,40 € : 26,40 €
-+
34
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2022-07-16
Alternative parts:
Price: 2,20 € : 2,20 €
-+
35
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2022-07-16
Alternative parts:
Price: 0,55 € : 0,55 €
-+
36
P/N (SKU): 30603-025020
Part Name: CLAMP D25
Effective: 2022-07-16
Alternative parts: 30603-125020
Specification: D25
Price: 0,95 € : 0,95 €
