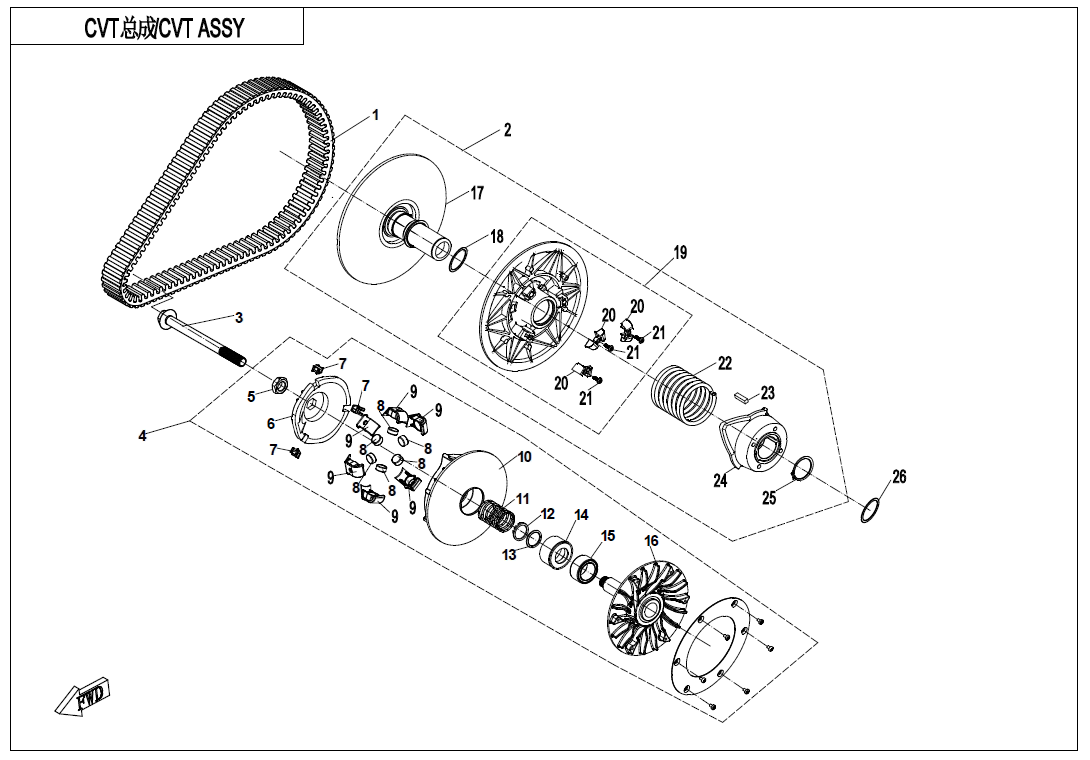

CVT ASSY - E05

CVT ASSY - E05

No.

01
P/N (SKU): 0JWA-055000-10000
Part Name: TOOTHED DRIVE BELT
Effective: 2022-07-16
Alternative parts:
Specification: MITSUBOSHI
Price: 198,00 € : 198,00 €
-+
02
P/N (SKU): 0JYA-052000
Part Name: DRIVEN PULLEY ASSY
Effective: 2022-07-16
Alternative parts:
Price: 391,50 € : 391,50 €
-+
03
P/N (SKU): 0JY0-050001-00001
Part Name: DRIVE PULLEY BOLT
Effective: 2022-07-16
Alternative parts:
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 5,10 € : 5,10 €
-+
04
P/N (SKU): 0JWA-051000-10002
Part Name: DRIVE PULLEY ASSY
Effective: 2022-07-16
Alternative parts: 0JWA-051000-10003
Price: 779,90 € : 779,90 €
05
P/N (SKU): 0JYA-051013-10001
Part Name: NUT, DRIVE PULLEY
Effective: 2022-07-16
Alternative parts:
Price: 15,40 € : 15,40 €
-+
06
P/N (SKU): 0JYA-051006-10000
Part Name: THRUST COLLAR
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 202,40 € : 202,40 €
-+
07
P/N (SKU): 0JYA-051004-10000
Part Name: THRUST DISC NYLON PARTS
Effective: 2022-07-16
Alternative parts:
Price: 9,15 € : 9,15 €
-+
08
P/N (SKU): 0JWA-051001
Part Name: WEIGHT ROLLER
Effective: 2022-07-16
Alternative parts:
Specification: 24g
Price: 5,15 € : 5,15 €
-+
09
P/N (SKU): 0GR0-051005
Part Name: NYLON PROTECTOR, WEIGHT ROLLER
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 16,90 € : 16,90 €
-+
10
P/N (SKU): 0JYA-051100
Part Name: MOVING PLATE ASSY, DRIVE PULLEY
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 339,50 € : 339,50 €
-+
11
P/N (SKU): 0JYA-051005
Part Name: SPRING, DRIVE PULLEY
Effective: 2022-07-16
Alternative parts:
Price: 33,70 € : 33,70 €
-+
12
P/N (SKU): 0GR0-051009-10000
Part Name: NYLON WASHER
Effective: 2022-07-16
Alternative parts:
Price: 11,80 € : 11,80 €
-+
13
P/N (SKU): 0GR0-051011
Part Name: STEEL WASHER
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
14
P/N (SKU): 0GR0-051001
Part Name: SPRING SEAT
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 56,80 € : 56,80 €
-+
15
P/N (SKU): 0GR0-051400-10000
Part Name: BEARING
Effective: 2022-07-16
Alternative parts:
Price: 127,10 € : 127,10 €
-+
16
P/N (SKU): 0JWA-051200
Part Name: DRIVE FIXED PULLEY ASSY
Effective: 2022-07-16
Alternative parts:
Price: 520,40 € : 520,40 €
-+
17
P/N (SKU): 0GR0-052100
Part Name: DRIVEN FIXED PULLEY ASSY
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 377,30 € : 377,30 €
-+
18
P/N (SKU): 0JYA-052007
Part Name: NYLON WASHER
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
19
P/N (SKU): 0GR0-0522A0
Part Name: SLIDING FLANGE ASSY
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 318,50 € : 318,50 €
-+
20
P/N (SKU): 0GR0-052005
Part Name: NYLON BLOCK
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
21
P/N (SKU): 0GR0-052006
Part Name: SCREW
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 2,95 € : 2,95 €
-+
22
P/N (SKU): 0GR0-052001
Part Name: SPRING, DRIVEN PULLEY
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 77,80 € : 77,80 €
-+
23
P/N (SKU): 0GR0-052003
Part Name: TAPER KEY
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 2,95 € : 2,95 €
-+
24
P/N (SKU): 0GR0-052002
Part Name: CAM PLATE
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 94,60 € : 94,60 €
-+
25
P/N (SKU): 0GR0-052004
Part Name: CIRCLIP
Effective: 2022-07-16
Alternative parts:
Specification: CVtech
Price: 11,40 € : 11,40 €
-+
26
P/N (SKU): 0GR0-050001-00001
Part Name: ADJUSTING WASHER
Effective: 2022-07-16
Alternative parts: 0GR0-050001-00002
Price: 0,55 € : 0,55 €
