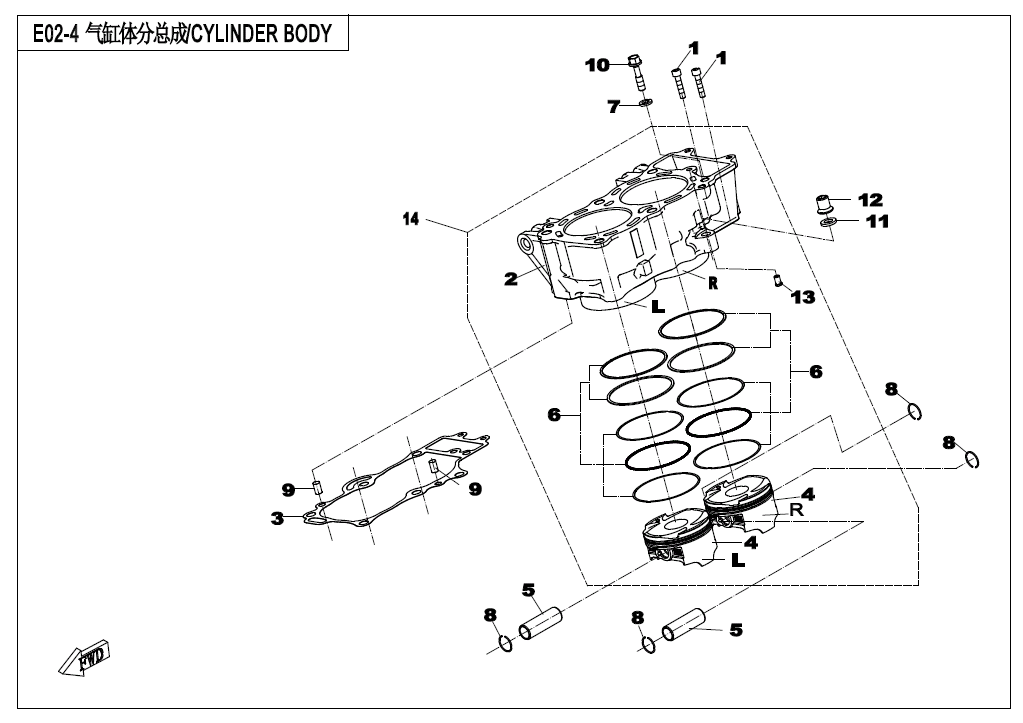

CYLINDER BODY - E02-4

No.

01
P/N (SKU): 0060-030003-00001
Part Name: INNER HEX BOLT
Effective: 2022-11-14
Alternative parts:
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0700-023001-4B201
Part Name: CYLINDER
Effective: 2022-11-14
Alternative parts: 0700-023001-4B202
Price: 362,70 € : 362,70 €
02
P/N (SKU): 0700-023001-4BY01
Part Name: CYLINDER
Effective: 2022-11-14
Alternative parts: 0700-023001-4BY02
Price: 370,00 € : 370,00 €
03
P/N (SKU): 0700-023002-0001
Part Name: GASKET, CYLINDER
Effective: 2022-11-14
Alternative parts:
Price: 3,70 € : 3,70 €
-+
04
P/N (SKU): 0700-040007-10011
Part Name: PISTON
Effective: 2022-11-14
Remarks: Ⅰ
Alternative parts: 0700-040007-20010
Price: 26,40 € : 26,40 €
04
P/N (SKU): 0700-040007-10021
Part Name: PISTON
Effective: 2022-11-14
Remarks: ⅠⅠ
Alternative parts: 0700-040007-20020
Price: 26,40 € : 26,40 €
04
P/N (SKU): 0700-040007-10031
Part Name: PISTON
Effective: 2022-11-14
Remarks: ⅠⅠⅠ
Alternative parts: 0700-040007-00031
Price: 26,40 € : 26,40 €
04
P/N (SKU): 0700-040007-20010
Part Name: PISTON
Effective: 2022-11-14
Alternative parts:
Price: 26,00 € : 26,00 €
-+
04
P/N (SKU): 0700-040007-20020
Part Name: PISTON
Effective: 2022-11-14
Alternative parts:
Price: 26,00 € : 26,00 €
-+
05
P/N (SKU): 0700-040008
Part Name: PISTON PIN
Effective: 2022-11-14
Alternative parts:
Price: 3,30 € : 3,30 €
-+
06
P/N (SKU): 0700-0400A0
Part Name: PISTON RING ASSY
Effective: 2022-11-14
Alternative parts:
Price: 28,60 € : 28,60 €
-+
07
P/N (SKU): 0700-023004
Part Name: WASHER
Effective: 2022-11-14
Alternative parts:
Specification: 8.5x15.5x2
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0700-040009
Part Name: CIRCLIP, PISTON PIN
Effective: 2022-11-14
Alternative parts:
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2022-11-14
Alternative parts:
Specification: 8x14
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0700-023003-00001
Part Name: BOLT M8x43
Effective: 2022-11-14
Alternative parts: 0700-023003-00002
Specification: M8x43
Price: 0,55 € : 0,55 €
10
P/N (SKU): 0700-023003-00002
Part Name: BOLT
Effective: 2022-11-14
Alternative parts: 0700-023003-00001
Price: 0,95 € : 0,95 €
11
P/N (SKU): 0700-022016
Part Name: WASHER 10.5x19x2.3
Effective: 2022-11-14
Alternative parts:
Specification: 10.5x19x2.3
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0700-011111-00001
Part Name: NUT M10x1.25
Effective: 2022-11-14
Alternative parts: 0700-011111-00002
Specification: M10x1.25
Price: 0,55 € : 0,55 €
12
P/N (SKU): 0700-011111-00002
Part Name: NUT
Effective: 2022-11-14
Alternative parts: 0700-011111-00001
Price: 1,25 € : 1,25 €
13
P/N (SKU): 0700-023005
Part Name: RESTRICTION PLUG
Effective: 2022-11-14
Alternative parts:
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 0700-0230A0
Part Name: PISTON, CYLINDER BODY
Effective: 2022-11-14
Alternative parts:
Price: 347,10 € : 347,10 €
-+
