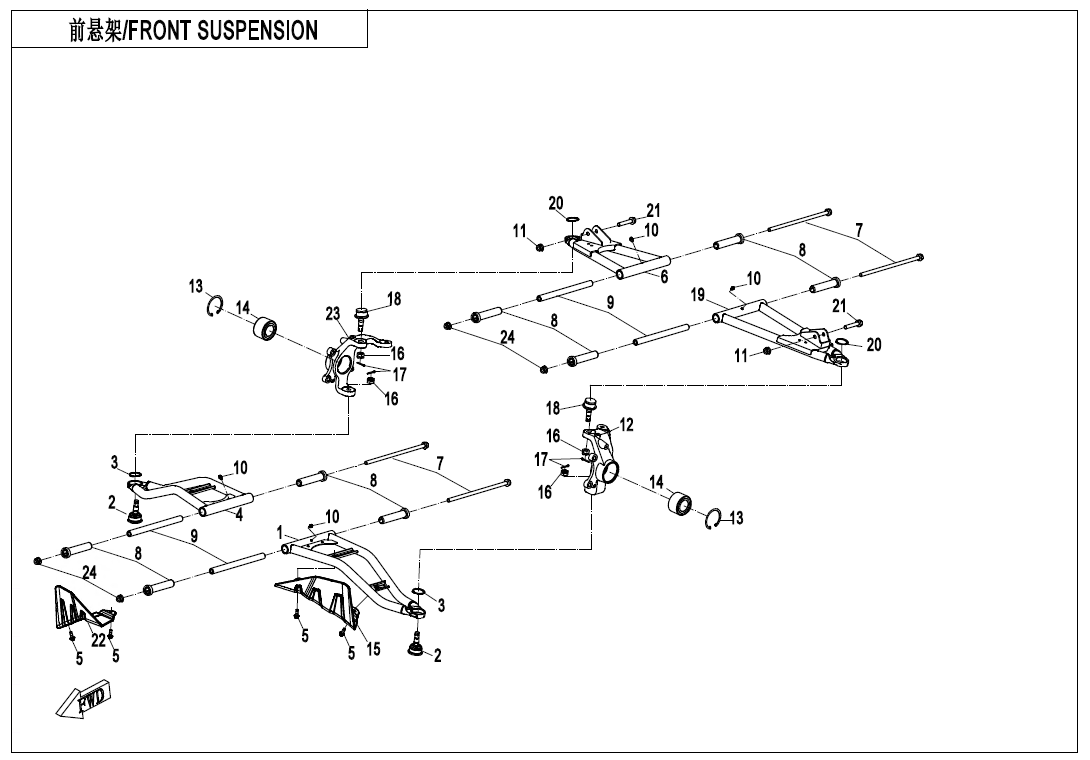

FRONT SUSPENSION - F05-1-V2

FRONT SUSPENSION - F05-1-V2

No.

01
P/N (SKU): 5HY0-050210
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2022-03-17
Alternative parts: 5HYV-050210-1C00
Price: 59,20 € : 59,20 €
-+
01
P/N (SKU): 5HYV-050210-1C00
Part Name: FRONT LOWER SWING ARM, LH
Effective: 2022-03-17
Remarks: aperture M10
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 58,90 € : 58,90 €
-+
01
P/N (SKU): 5SYV-050210-6000
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2022-03-17
Remarks: aperture M12
Alternative parts: 5SYV-050210-6001
Specification: ELECTROPHORESIS BLAC
Price: 61,40 € : 61,40 €
02
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2022-03-17
Remarks: CCVI
Alternative parts:
Specification: CCVI
Price: 21,60 € : 21,60 €
-+
02
P/N (SKU): 9060-050900
Part Name: LOWER PIN ASSY
Effective: 2022-03-17
Remarks: SOMIC
Alternative parts: 9060-050900-10000
Specification: SOMIC
Price: 33,10 € : 33,10 €
-+
03
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2022-03-17
Alternative parts:
Specification: 34
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 5HY0-050410
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2022-03-17
Alternative parts: 5HYV-050410-1C00
Price: 59,80 € : 59,80 €
04
P/N (SKU): 5HYV-050410-1C00
Part Name: FRONT LOWER SWING ARM, RH
Effective: 2022-03-17
Remarks: aperture M10
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 58,90 € : 58,90 €
-+
04
P/N (SKU): 5SYV-050410-6000
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2022-03-17
Remarks: aperture M12
Alternative parts: 5SYV-050410-6001
Specification: ELECTROPHORESIS BLAC
Price: 61,40 € : 61,40 €
05
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2022-03-17
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 5HY0-050310
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2022-03-17
Alternative parts: 5HYV-050310-1C00
Price: 60,10 € : 60,10 €
-+
06
P/N (SKU): 5HYV-050310-1C00
Part Name: FRONT UPPER SWING ARM, RH
Effective: 2022-03-17
Remarks: aperture M10
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 69,90 € : 69,90 €
-+
06
P/N (SKU): 5SYV-050310-6000
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2022-03-17
Remarks: aperture M12
Alternative parts: 5SYV-050310-6001
Specification: ELECTROPHORESIS BLAC
Price: 70,20 € : 70,20 €
07
P/N (SKU): 4060-060101
Part Name: MOUNTING SHAFT, REAR ARM
Effective: 2022-03-17
Alternative parts:
Price: 4,00 € : 4,00 €
-+
07
P/N (SKU): 5SYV-050103-6000
Part Name: SHAFT, SWNG ARM
Effective: 2022-03-17
Alternative parts:
Price: 7,00 € : 7,00 €
-+
08
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2022-03-17
Alternative parts:
Price: 9,70 € : 9,70 €
-+
08
P/N (SKU): 5BY0-050102
Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM
Effective: 2022-03-17
Alternative parts:
Price: 2,60 € : 2,60 €
-+
09
P/N (SKU): 9060-060101-00002
Part Name: MIDDLE SPACER, REAR UPPER SWING ARM
Effective: 2022-03-17
Alternative parts:
Price: 5,15 € : 5,15 €
-+
09
P/N (SKU): 5SYV-050101-6000
Part Name: MIDDLE SPACER, SWING ARM
Effective: 2022-03-17
Alternative parts:
Price: 7,00 € : 7,00 €
-+
10
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2022-03-17
Alternative parts:
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2022-03-17
Alternative parts:
Specification: M10×1.25
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 5HY0-050701-10000
Part Name: LH STEERING KNUCKLE
Effective: 2022-03-17
Alternative parts:
Price: 59,70 € : 59,70 €
-+
13
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2022-03-17
Alternative parts:
Specification: 60
Price: 1,25 € : 1,25 €
-+
14
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2022-03-17
Alternative parts: 30411-03081
Price: 41,00 € : 41,00 €
15
P/N (SKU): 5ASV-050201-6000
Part Name: GUARD, FRONT LH SWING ARM
Effective: 2022-03-17
Alternative parts:
Price: 5,15 € : 5,15 €
-+
16
P/N (SKU): 30219-122810
Part Name: NUT M12x1.25
Effective: 2022-03-17
Alternative parts:
Specification: M12x1.25
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2022-03-17
Alternative parts:
Specification: φ3.2×22
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2022-03-17
Remarks: CCVI
Alternative parts:
Specification: CCVI
Price: 20,20 € : 20,20 €
-+
18
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2022-03-17
Remarks: SOMIC
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 33,10 € : 33,10 €
19
P/N (SKU): 5HY0-050110
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2022-03-17
Alternative parts: 5HYV-050110-1C00
Price: 58,90 € : 58,90 €
-+
19
P/N (SKU): 5HYV-050110-1C00
Part Name: FRONT UPPER SWING ARM, LH
Effective: 2022-03-17
Remarks: aperture M10
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 69,90 € : 69,90 €
-+
19
P/N (SKU): 5SYV-050110-6000
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2022-03-17
Remarks: aperture M12
Alternative parts: 5SYV-050110-6001
Specification: ELECTROPHORESIS BLAC
Price: 70,20 € : 70,20 €
20
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2022-03-17
Alternative parts:
Specification: 32 A-TYPE
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 30006-102055110
Part Name: BOLT
Effective: 2022-03-17
Alternative parts:
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 5ASV-050401-6000
Part Name: GUARD, FRONT RH SWING ARM
Effective: 2022-03-17
Alternative parts:
Price: 5,15 € : 5,15 €
-+
23
P/N (SKU): 5HY0-050801-10000
Part Name: RH STEERING KNUCKLE
Effective: 2022-03-17
Alternative parts:
Price: 59,70 € : 59,70 €
-+
24
P/N (SKU): 30204-122910
Part Name: NUT M12x1.25
Effective: 2022-03-17
Alternative parts:
Specification: M12x1.25
Price: 0,95 € : 0,95 €
-+
