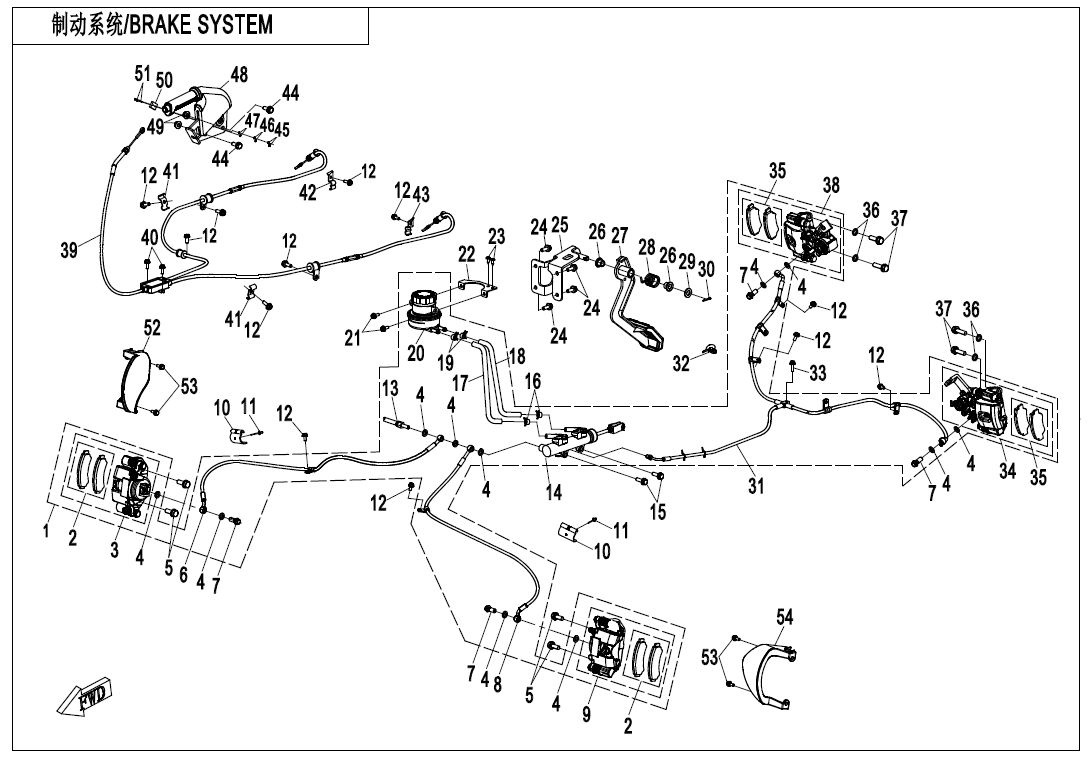

BRAKE SYSTEM - F08

BRAKE SYSTEM - F08

No.

01
P/N (SKU): 5BYA-081000
Part Name: HYDRAULIC BRAKE ASSY.
Effective: 2021-06-21
Alternative parts: 5BYA-081000-00001
Price: 957,40 € : 957,40 €
01
P/N (SKU): 5BYA-081000-00001
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2021-06-21
Alternative parts:
Price: 994,30 € : 994,30 €
-+
02
P/N (SKU): 9AWA-0811A0
Part Name: BRAKE PAD ASSY
Effective: 2021-06-21
Alternative parts:
Price: 42,90 € : 42,90 €
-+
03
P/N (SKU): 9AWA-081200
Part Name: FRONT BRAKE CALIPER, RH
Effective: 2021-06-21
Alternative parts:
Price: 95,80 € : 95,80 €
-+
04
P/N (SKU): 901B-080102
Part Name: WASHER
Effective: 2021-06-21
Alternative parts: 0010-060010
Specification: 80
Price: 0,55 € : 0,55 €
05
P/N (SKU): 30006-102025810
Part Name: BOLT M10x1.25x25
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25x25
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 5BYA-081030
Part Name: RH FRONT BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 34,50 € : 34,50 €
-+
07
P/N (SKU): 7020-081004
Part Name: BANJO BOLT
Effective: 2021-06-21
Alternative parts:
Price: 3,05 € : 3,05 €
-+
08
P/N (SKU): 5BYA-081010
Part Name: LH FRONT BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 29,30 € : 29,30 €
-+
09
P/N (SKU): 9AWA-081100
Part Name: FRONT BRAKE CALIPER, LH
Effective: 2021-06-21
Alternative parts:
Price: 95,80 € : 95,80 €
-+
10
P/N (SKU): 5BY0-080002
Part Name: PLASTIC CLASP
Effective: 2021-06-21
Alternative parts:
Price: 1,25 € : 1,25 €
-+
11
P/N (SKU): 30902-0400820
Part Name: BLIND RIVET
Effective: 2021-06-21
Alternative parts: 30902-0401320
Specification: 4x8
Price: 0,55 € : 0,55 €
12
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-06-21
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 5HY0-080010
Part Name: HYDRAULIC INDUCTION SWITCH
Effective: 2021-06-21
Alternative parts:
Price: 30,80 € : 30,80 €
-+
14
P/N (SKU): 5BWB-081100
Part Name: MASTER CYLINDER
Effective: 2021-06-21
Alternative parts: 5BWB-081100-00002
Price: 74,80 € : 74,80 €
15
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-06-21
Alternative parts:
Specification: M8x25
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 7020-081002
Part Name: PIPE CLIP, MASTER CYLINDER
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 5BY0-081001
Part Name: FLUID RESERVOIR HOSE 1
Effective: 2021-06-21
Alternative parts:
Price: 18,00 € : 18,00 €
-+
18
P/N (SKU): 5BY0-081002
Part Name: FLUID RESERVOIR HOSE 2
Effective: 2021-06-21
Alternative parts:
Price: 18,00 € : 18,00 €
-+
19
P/N (SKU): 9010-080405
Part Name: CLAMP
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 5BW1-080150-10000
Part Name: FLUID RESERVOIR
Effective: 2021-06-21
Alternative parts:
Price: 41,00 € : 41,00 €
-+
21
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-06-21
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 5UWB-030110
Part Name: BRACKET, OIL CUP
Effective: 2021-06-21
Alternative parts:
Price: 14,70 € : 14,70 €
-+
23
P/N (SKU): 30110-480130010
Part Name: SELF-TAPPING SCREW ST4.8x13
Effective: 2021-06-21
Alternative parts: 30110-481130010
Specification: ST4.8x13
Price: 0,95 € : 0,95 €
-+
24
P/N (SKU): 30006-080025870
Part Name: BOLT M8x25
Effective: 2021-06-21
Alternative parts:
Specification: M8x25
Price: 0,95 € : 0,95 €
-+
25
P/N (SKU): 5BY0-080010
Part Name: FIXED BRACKET, FOOT PEDAL
Effective: 2021-06-21
Alternative parts:
Price: 22,00 € : 22,00 €
-+
26
P/N (SKU): 9060-105002
Part Name: BUSHING
Effective: 2021-06-21
Alternative parts:
Price: 1,25 € : 1,25 €
-+
27
P/N (SKU): 5HY0-082000
Part Name: BRAKE PEDAL ASSY
Effective: 2021-06-21
Alternative parts:
Price: 21,60 € : 21,60 €
-+
27
P/N (SKU): 5HYV-082000-1200
Part Name: BRAKE PEDAL ASSY
Effective: 2021-06-21
Alternative parts:
Price: 22,00 € : 22,00 €
-+
28
P/N (SKU): 9060-080003
Part Name: RETURN SPRING
Effective: 2021-06-21
Alternative parts:
Price: 2,60 € : 2,60 €
-+
29
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2021-06-21
Alternative parts:
Specification: 12
Price: 0,55 € : 0,55 €
-+
30
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-06-21
Alternative parts:
Specification: 3.2x22
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 5BY0-081020-00001
Part Name: REAR BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 106,20 € : 106,20 €
-+
32
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
33
P/N (SKU): 30006-060020810
Part Name: BOLT M6x20
Effective: 2021-06-21
Alternative parts: 30006-060020870
Specification: M6x20
Price: 0,55 € : 0,55 €
34
P/N (SKU): 5BY0-081060
Part Name: REAR RH BRAKE CALIPER
Effective: 2021-06-21
Remarks: rear brake caliper is reversed on the left and right
Alternative parts:
Price: 208,10 € : 208,10 €
-+
35
P/N (SKU): 7020-0810A0
Part Name: REAR BRAKE PAD ASSY
Effective: 2021-06-21
Alternative parts:
Price: 24,40 € : 24,40 €
-+
36
P/N (SKU): 30303-100112
Part Name: WASHER
Effective: 2021-06-21
Alternative parts:
Price: 0,55 € : 0,55 €
-+
37
P/N (SKU): 30006-102035810
Part Name: BOLT M10x1.25x35
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25x35
Price: 0,95 € : 0,95 €
-+
38
P/N (SKU): 5BY0-081050
Part Name: REAR LH BRAKE CALIPER
Effective: 2021-06-21
Remarks: rear brake caliper is reversed on the left and right
Alternative parts:
Price: 208,10 € : 208,10 €
-+
39
P/N (SKU): 5BY0-083100
Part Name: PARKING CABLE
Effective: 2021-06-21
Alternative parts:
Price: 39,20 € : 39,20 €
-+
40
P/N (SKU): 30006-050016810
Part Name: BOLT M5x16
Effective: 2021-06-21
Alternative parts:
Specification: M5x16
Price: 0,55 € : 0,55 €
-+
41
P/N (SKU): 5BY0-080001
Part Name: CLIP I, LH OIL HOSE
Effective: 2021-06-21
Alternative parts:
Price: 2,60 € : 2,60 €
-+
42
P/N (SKU): 5BY0-080006
Part Name: CLIP III, RH OIL HOSE
Effective: 2021-06-21
Alternative parts:
Price: 3,30 € : 3,30 €
-+
43
P/N (SKU): 5BY0-080005
Part Name: CLIP III, LH OIL HOSE
Effective: 2021-06-21
Alternative parts:
Price: 3,30 € : 3,30 €
-+
44
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Effective: 2021-06-21
Alternative parts:
Specification: M8x20
Price: 0,85 € : 0,85 €
-+
45
P/N (SKU): 30200-020500
Part Name: NUT M2
Effective: 2021-06-21
Alternative parts:
Specification: M2
Price: 0,55 € : 0,55 €
-+
46
P/N (SKU): 30303-020900
Part Name: WASHER
Effective: 2021-06-21
Alternative parts:
Specification: 2
Price: 0,55 € : 0,55 €
-+
47
P/N (SKU): 30306-020800
Part Name: WASHER
Effective: 2021-06-21
Alternative parts:
Specification: 2
Price: 0,55 € : 0,55 €
-+
48
P/N (SKU): 5BY0-083200
Part Name: HAND BRAKE ASSY
Effective: 2021-06-21
Alternative parts:
Price: 56,40 € : 56,40 €
-+
49
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-06-21
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
50
P/N (SKU): 7000-082210-10000
Part Name: MICRO SWITCH
Effective: 2021-06-21
Alternative parts:
Specification: SUMITOMO PLUG
Price: 13,20 € : 13,20 €
-+
51
P/N (SKU): 30105-020016700
Part Name: SCREW M2x16
Effective: 2021-06-21
Alternative parts:
Specification: M2x16
Price: 0,55 € : 0,55 €
-+
52
P/N (SKU): 5BY0-080008
Part Name: GUARD, FRONT RH BRAKE CALIPER
Effective: 2021-06-21
Alternative parts:
Price: 2,60 € : 2,60 €
-+
53
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-06-21
Alternative parts:
Specification: M6x14
Price: 0,55 € : 0,55 €
-+
54
P/N (SKU): 5BY0-080007
Part Name: GUARD, FRONT LH BRAKE CALIPER
Effective: 2021-06-21
Alternative parts:
Price: 2,60 € : 2,60 €
-+
