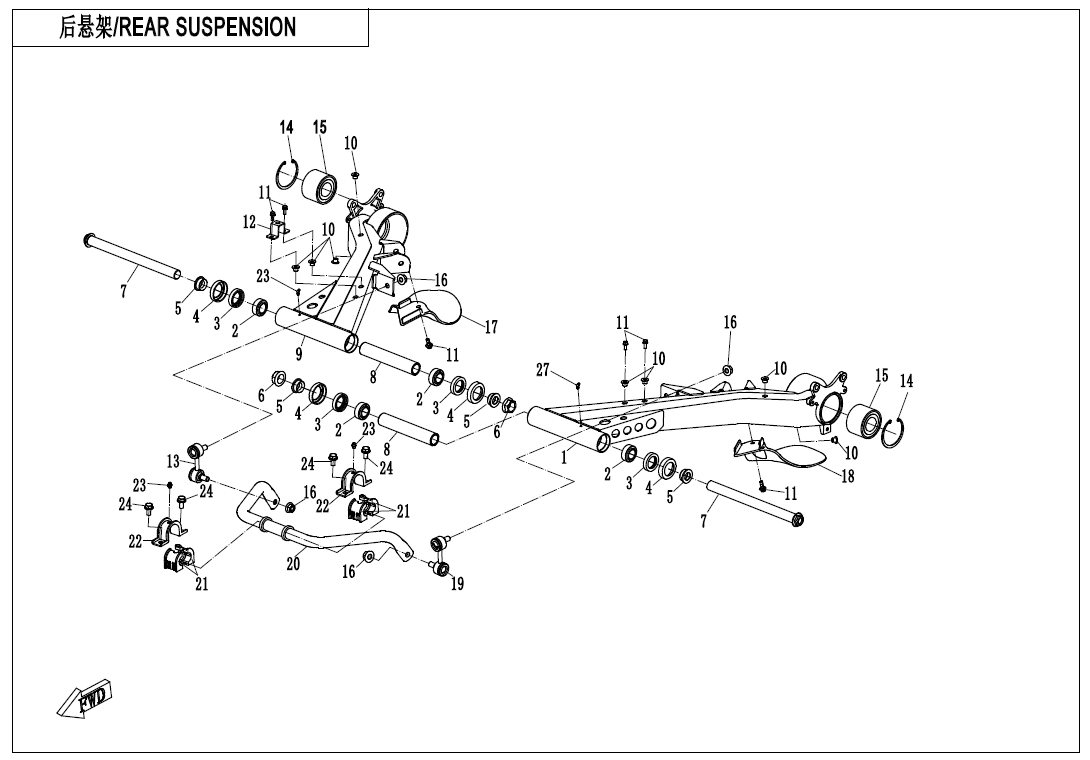

REAR SUSPENSION(WELDING) - F06-1-A | 2022, ATV, CF800AU-2AF

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9AWA-060110-20000

Part Name: REAR SWING ARM, LH

Effective: 2021-07-03

Alternative parts:

Price: 224,20 € : 224,20 €

02

P/N (SKU): 9AWA-060109

Part Name: BEARING, REAR SWINGARM

Effective: 2021-07-03

Alternative parts:

Price: 14,70 € : 14,70 €

03

P/N (SKU): 9AWA-060106

Part Name: OIL SEAL 24x38x8

Effective: 2021-07-03

Alternative parts:

Specification: 24x38x8

Price: 2,05 € : 2,05 €

04

P/N (SKU): 9AWA-060105-10000

Part Name: DUST COVER

Effective: 2021-07-03

Alternative parts: 9AWA-060105

Price: 1,25 € : 1,25 €

05

P/N (SKU): 9AWA-060102

Part Name: BUSHING, SWING ARM

Effective: 2021-07-03

Alternative parts:

Price: 4,10 € : 4,10 €

06

P/N (SKU): 9AWA-060108

Part Name: LOCK NUT, SWING ARM

Effective: 2021-07-03

Alternative parts:

Price: 2,95 € : 2,95 €

07

P/N (SKU): 9AWA-060103

Part Name: REAR SWING ARM SHAFT

Effective: 2021-07-03

Alternative parts: 9AWV-060103-2E00

Price: 24,40 € : 24,40 €

08

P/N (SKU): 9AWA-060101-10000

Part Name: INNER LINER, REAR SWING ARM

Effective: 2021-07-03

Alternative parts:

Price: 3,30 € : 3,30 €

09

P/N (SKU): 9AWA-060210-20000

Part Name: REAR SWING ARM, RH

Effective: 2021-07-03

Alternative parts:

Price: 204,40 € : 204,40 €

10

P/N (SKU): 30228-061310

Part Name: RIVET NUT

Effective: 2021-07-03

Alternative parts:

Specification: M6

Price: 0,55 € : 0,55 €

11

P/N (SKU): 30006-060016810

Part Name: BOLT M6x16

Effective: 2021-07-03

Alternative parts: 30006-060016870

Specification: M6x16

Price: 0,55 € : 0,55 €

12

P/N (SKU): 9AWA-060107

Part Name: BRACKET, PARKING CABLE, REAR SWING ARM

Effective: 2021-07-03

Alternative parts:

Price: 4,80 € : 4,80 €

13

P/N (SKU): 9010-060700-20000

Part Name: BALL PIN, LH

Effective: 2021-07-03

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

14

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Effective: 2021-07-03

Alternative parts:

Specification: 60

Price: 1,25 € : 1,25 €

15

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Effective: 2021-07-03

Alternative parts:

Price: 41,00 € : 41,00 €

16

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Effective: 2021-07-03

Alternative parts:

Specification: M10x1.25

Price: 0,55 € : 0,55 €

17

P/N (SKU): 9AWA-044044

Part Name: PANEL, RH REAR SUSPENSION

Effective: 2021-07-03

Alternative parts:

Price: 3,30 € : 3,30 €

18

P/N (SKU): 9AWA-044043

Part Name: PANEL, LH REAR SUSPENSION

Effective: 2021-07-03

Alternative parts:

Price: 2,95 € : 2,95 €

19

P/N (SKU): 9010-060800-20000

Part Name: BALL PIN, RH

Effective: 2021-07-03

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

20

P/N (SKU): 9AWA-060410-10000

Part Name: REAR SWAY BAR ASSY

Effective: 2021-07-03

Alternative parts:

Price: 55,60 € : 55,60 €

21

P/N (SKU): 7000-060003

Part Name: SUPPORTER, SWAY BAR

Effective: 2021-07-03

Alternative parts:

Price: 3,05 € : 3,05 €

22

P/N (SKU): 9030-060002

Part Name: COVER, SWAY BAR

Effective: 2021-07-03

Alternative parts:

Price: 4,60 € : 4,60 €

23

P/N (SKU): 3121401

Part Name: RESERVOIR

Effective: 2021-07-03

Alternative parts:

Price: 0,95 € : 0,95 €

24

P/N (SKU): 30006-080016810

Part Name: BOLT M8x16

Effective: 2021-07-03

Alternative parts:

Specification: M8x16

Price: 0,55 € : 0,55 €
