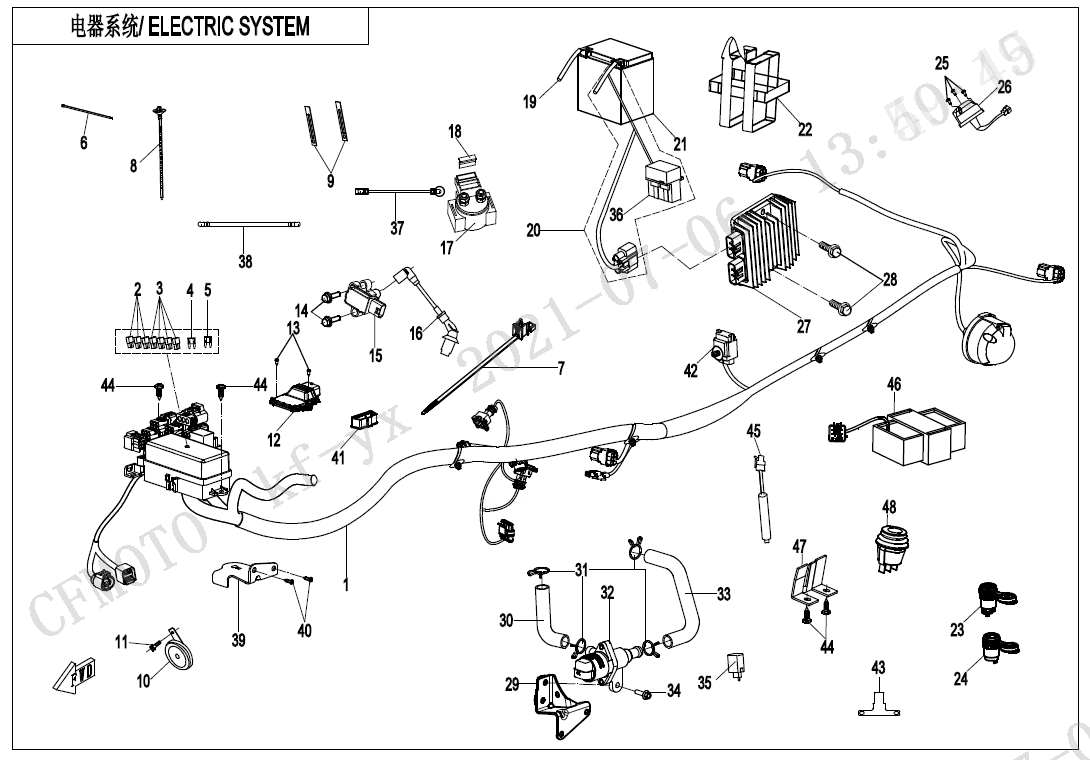

ELECTRIC SYSTEM(LOF) - F15-1-C-V2

ELECTRIC SYSTEM(LOF) - F15-1-C-V2

No.

01
P/N (SKU): 9DSV-150100-4100
Part Name: MAIN CABLE
Effective: 2021-07-07
Alternative parts:
Price: 500,90 € : 500,90 €
-+
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-07-07
Alternative parts:
Price: 6,65 € : 6,65 €
-+
03
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2021-07-07
Alternative parts:
Price: 6,10 € : 6,10 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-07-07
Alternative parts: 806A-151303
Specification: 15A
Price: 0,55 € : 0,55 €
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-07-07
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-07-07
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Effective: 2021-07-07
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-07-07
Alternative parts:
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-07-07
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-07-07
Alternative parts:
Price: 7,00 € : 7,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT M8x14
Effective: 2021-07-07
Alternative parts:
Specification: M8x14
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0GS0-174000-10000
Part Name: ECU ASSY
Effective: 2021-07-07
Alternative parts: 9DS#-001000-6400
Price: 206,80 € : 206,80 €
13
P/N (SKU): 30105-060016410
Part Name: SCREW M6x16
Effective: 2021-07-07
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT M6x25
Effective: 2021-07-07
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-07-07
Alternative parts:
Price: 35,60 € : 35,60 €
-+
16
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-07-07
Alternative parts:
Price: 15,30 € : 15,30 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-07-07
Alternative parts:
Price: 24,40 € : 24,40 €
-+
18
P/N (SKU): 5BY4-151301
Part Name: 30A FUSE
Effective: 2021-07-07
Alternative parts:
Price: 0,95 € : 0,95 €
-+
19
P/N (SKU): 9DS#-150210-6000
Part Name: NEGATIVE WIRE, BATTERY
Effective: 2021-07-07
Alternative parts:
Price: 14,30 € : 14,30 €
-+
20
P/N (SKU): 9DS#-150230-6002
Part Name: POSITIVE WIRE, BATTERY
Effective: 2021-07-07
Alternative parts:
Price: 14,70 € : 14,70 €
-+
21
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-07-07
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
22
P/N (SKU): 9060-152100
Part Name: BELT, BATTERY
Effective: 2021-07-07
Alternative parts:
Price: 2,95 € : 2,95 €
-+
23
P/N (SKU): 9DSV-150600-6R00
Part Name: USB OUTLET SOCKET ASSY
Effective: 2021-07-07
Alternative parts:
Price: 32,60 € : 32,60 €
-+
24
P/N (SKU): 9DSV-150500-6R00
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-07-07
Alternative parts:
Price: 20,90 € : 20,90 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW M5x30
Effective: 2021-07-07
Alternative parts:
Specification: M5x30
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 9010-151010-1000
Part Name: POWER SOCKET, TRAILER
Effective: 2021-07-07
Alternative parts:
Specification: LOF
Price: 12,90 € : 12,90 €
-+
27
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Effective: 2021-07-07
Alternative parts:
Specification: 600W
Price: 133,90 € : 133,90 €
-+
28
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Effective: 2021-07-07
Alternative parts:
Specification: M6x30
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: BRACKET, STEPPER MOTOR
Effective: 2021-07-07
Alternative parts: 9GQA-030010-30000
Price: 3,70 € : 3,70 €
30
P/N (SKU): 9GQA-001002
Part Name: EXHAUST PIPE, STEPPER MOTOR SEAT
Effective: 2021-07-07
Alternative parts:
Price: 9,55 € : 9,55 €
-+
31
P/N (SKU): 30601-118010
Part Name: CLAMP A18
Effective: 2021-07-07
Alternative parts:
Price: 0,55 € : 0,55 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR
Effective: 2021-07-07
Alternative parts:
Price: 88,50 € : 88,50 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: INLET PIPE, STEPPER MOTOR SEAT
Effective: 2021-07-07
Alternative parts:
Price: 15,80 € : 15,80 €
-+
34
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-07-07
Alternative parts:
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 9DS#-150340-6002
Part Name: FLASHER
Effective: 2021-07-07
Alternative parts:
Price: 17,60 € : 17,60 €
-+
36
P/N (SKU): CFC#-150008-4500
Part Name: FUSE 50A
Effective: 2021-07-07
Alternative parts:
Price: 2,60 € : 2,60 €
-+
37
P/N (SKU): 9DS#-150220-6001
Part Name: CABLE, STARTER MOTOR
Effective: 2021-07-07
Alternative parts:
Price: 14,70 € : 14,70 €
-+
38
P/N (SKU): 9DS#-150250-6000
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2021-07-07
Alternative parts:
Price: 14,30 € : 14,30 €
-+
39
P/N (SKU): 9DS#-030501-6000
Part Name: MOUNTING PLATE,FUSE BOX
Effective: 2021-07-07
Alternative parts:
Price: 3,70 € : 3,70 €
-+
40
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW ST4.2x13
Effective: 2021-07-07
Alternative parts: 30110-421130010
Specification: ST4.2x13
Price: 1,05 € : 1,05 €
-+
41
P/N (SKU): 5BY0-150304
Part Name: CAP, DIAGNOSIS CONNECTOR
Effective: 2021-07-07
Alternative parts:
Price: 2,95 € : 2,95 €
-+
42
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2021-07-07
Alternative parts:
Specification: 40A
Price: 2,60 € : 2,60 €
-+
43
P/N (SKU): 9010-030013
Part Name: BRACKET, FLASHER MODULE
Effective: 2021-07-07
Alternative parts:
Price: 3,70 € : 3,70 €
-+
44
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW ST4.8x16
Effective: 2021-07-07
Alternative parts:
Specification: ST4.8x16
Price: 0,55 € : 0,55 €
-+
45
P/N (SKU): 4020-160603
Part Name: INDICATOR
Effective: 2021-07-07
Alternative parts:
Price: 4,80 € : 4,80 €
-+
46
P/N (SKU): 7030-160602
Part Name: CONTROL UNIT, TRAILER TURN LIGHT
Effective: 2021-07-07
Alternative parts:
Price: 19,40 € : 19,40 €
-+
47
P/N (SKU): 7030-160001
Part Name: BRACKET, FUSE BOX
Effective: 2021-07-07
Alternative parts:
Price: 0,95 € : 0,95 €
-+
48
P/N (SKU): 9030-160810
Part Name: SWITCH ASSY, FOG LIGHT
Effective: 2021-07-07
Alternative parts:
Price: 17,60 € : 17,60 €
-+
