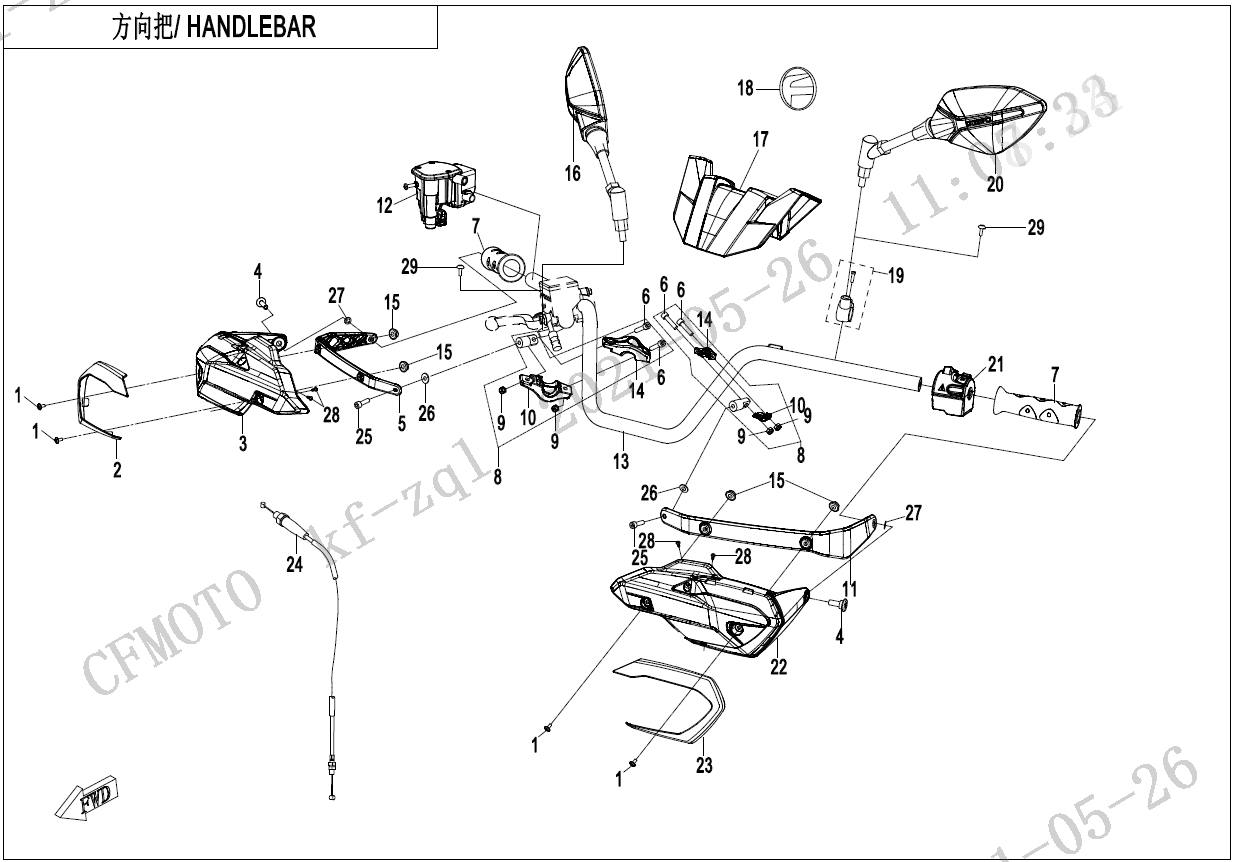

HANDLEBAR - F10-1-V3

No.

01
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2021-07-03
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 9AWA-101302-0RH00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: FORCE RED
Price: 4,80 € : 4,80 €
-+
02
P/N (SKU): 9AWA-101302-0RE00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 30,40 € : 30,40 €
-+
02
P/N (SKU): 9AWA-101302-0HC00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: VELOCITY GREY
Price: 4,80 € : 4,80 €
-+
02
P/N (SKU): 9AWA-101302-0YD00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: LAVA ORANGE
Price: 4,80 € : 4,80 €
-+
02
P/N (SKU): 9AWA-101302-0EC00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: ROYAL BLUE
Price: 30,40 € : 30,40 €
-+
03
P/N (SKU): 9AWA-101301-10000
Part Name: HAND GUARD, RH
Effective: 2021-07-03
Alternative parts:
Price: 7,70 € : 7,70 €
-+
04
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-07-03
Alternative parts:
Price: 1,25 € : 1,25 €
-+
05
P/N (SKU): 9AWA-101303-10000
Part Name: HANDGUARD LEVER, RH
Effective: 2021-07-03
Alternative parts:
Price: 4,40 € : 4,40 €
-+
06
P/N (SKU): 30102-060022810
Part Name: SCREW M6x22
Effective: 2021-07-03
Alternative parts:
Specification: M6x22
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-07-03
Alternative parts: 9DQV-100005-3000
Price: 5,80 € : 5,80 €
-+
08
P/N (SKU): 9AWA-101230-10000
Part Name: BRACKET ASSY
Effective: 2021-07-03
Alternative parts:
Price: 11,40 € : 11,40 €
-+
09
P/N (SKU): 30224-060810
Part Name: NUT
Effective: 2021-07-03
Alternative parts:
Price: 1,85 € : 1,85 €
-+
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Effective: 2021-07-03
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9AWA-101203-20000
Part Name: HANDGUARD LEVER, LH
Effective: 2021-07-03
Alternative parts:
Price: 4,40 € : 4,40 €
-+
12
P/N (SKU): 9DSV-160340-6002
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-07-03
Remarks: MATCHED WITH NON DIFFERENTIAL REAR AXLE
Alternative parts:
Price: 122,70 € : 122,70 €
-+
12
P/N (SKU): 9DSV-160340-6302
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-07-03
Remarks: MATCHED WITH DIFFERENTIAL REAR AXLE
Alternative parts:
Specification: FOR ON CAMMAND REAR AXLE
Price: 139,10 € : 139,10 €
-+
13
P/N (SKU): 9DSV-101100-6K00-0BU00
Part Name: HANDLEBAR ASSY
Effective: 2021-07-03
Alternative parts: 9DSV-101100-6K01
Specification: SCRUB MIST SILVER BLACK
Price: 71,40 € : 71,40 €
-+
14
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Effective: 2021-07-03
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30206-060570
Part Name: NUT
Effective: 2021-07-03
Alternative parts: 30206-060510
Price: 1,25 € : 1,25 €
16
P/N (SKU): 9AY0-200300
Part Name: REAR VIEW MIRROR ASSY, RH
Effective: 2021-07-03
Alternative parts:
Price: 25,50 € : 25,50 €
-+
17
P/N (SKU): 9DSV-101001-6K00
Part Name: UPPER GUARD, HANDLEBAR
Effective: 2021-07-03
Alternative parts:
Price: 5,90 € : 5,90 €
-+
18
P/N (SKU): 9AWV-190001-2E00
Part Name: CFMOTO STICKER
Effective: 2021-07-03
Alternative parts:
Price: 8,10 € : 8,10 €
-+
19
P/N (SKU): 9CR6-080400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2021-07-03
Alternative parts:
Price: 5,10 € : 5,10 €
-+
19
P/N (SKU): 9CRV-080400-2400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2022-04-22
Alternative parts:
Price: 4,40 € : 4,40 €
-+
20
P/N (SKU): 9AY0-200200
Part Name: REAR VIEW MIRROR ASSY, LH
Effective: 2021-07-03
Alternative parts:
Price: 25,50 € : 25,50 €
-+
21
P/N (SKU): 9DSV-166000-6J00
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-07-03
Alternative parts: 9DSV-166000-6J01
Price: 77,20 € : 77,20 €
21
P/N (SKU): 9DSV-166000-6J01
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-11-11
Alternative parts:
Price: 120,50 € : 120,50 €
-+
22
P/N (SKU): 9AWA-101201-10000
Part Name: HAND GUARD, LH
Effective: 2021-07-03
Alternative parts:
Price: 7,70 € : 7,70 €
-+
23
P/N (SKU): 9AWA-101202-0RH00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: FORCE RED
Price: 4,80 € : 4,80 €
-+
23
P/N (SKU): 9AWA-101202-0RE00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 30,40 € : 30,40 €
-+
23
P/N (SKU): 9AWA-101202-0HC00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: VELOCITY GREY
Price: 4,80 € : 4,80 €
-+
23
P/N (SKU): 9AWA-101202-0YD00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: LAVA ORANGE
Price: 4,80 € : 4,80 €
-+
23
P/N (SKU): 9AWA-101202-0EC00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Alternative parts:
Specification: ROYAL BLUE
Price: 30,40 € : 30,40 €
-+
24
P/N (SKU): 9CR6-105000
Part Name: THROTTLE CABLE
Effective: 2021-07-03
Alternative parts:
Price: 12,80 € : 12,80 €
-+
25
P/N (SKU): 6NQ#-000203-6001
Part Name: INNER HEX SCREW M6x20
Effective: 2021-07-03
Alternative parts:
Specification: M6x20
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-07-03
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2021-07-03
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 30110-420095010
Part Name: SELF-TAPPING SCREW ST4.2x9.5
Effective: 2021-07-03
Alternative parts:
Specification: ST4.2x9.5
Price: 0,95 € : 0,95 €
-+
29
P/N (SKU): 9010-080004
Part Name: M8 RUBBER PLUG
Effective: 2021-07-03
Alternative parts:
Price: 0,55 € : 0,55 €
-+
