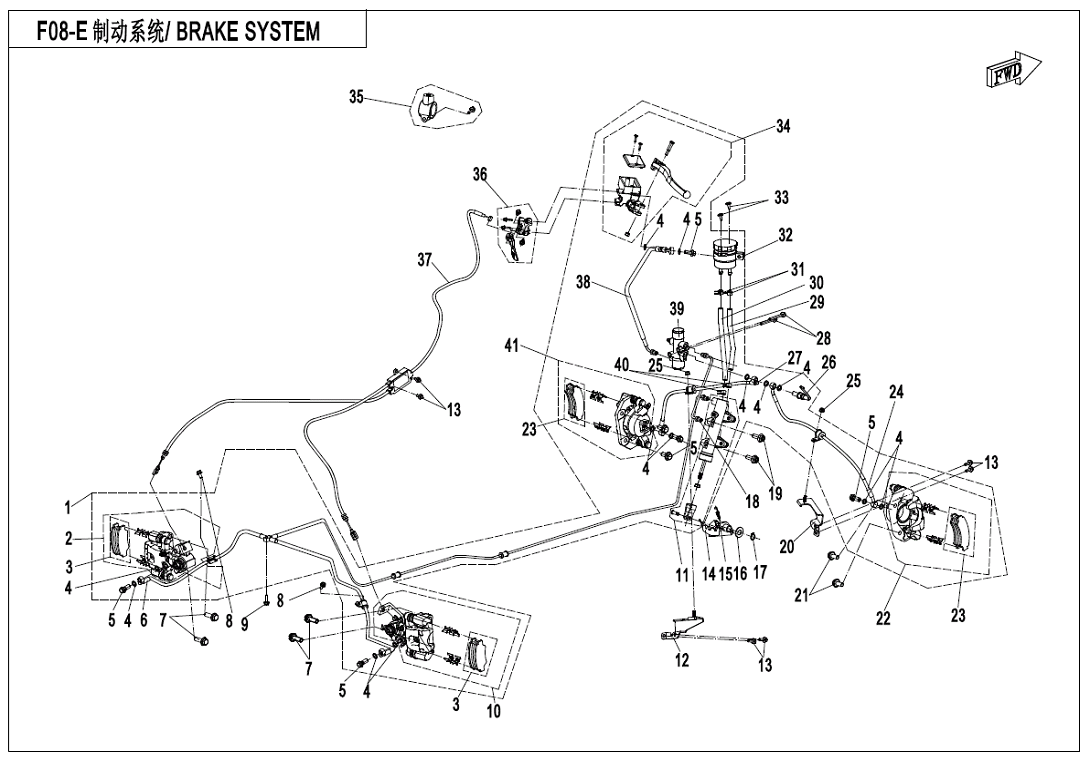

BRAKE SYSTEM(RH,ASSEMBLED,ORDINARY) - F08-1-B

No.

01
P/N (SKU): 9GQB-081000-80000
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2021-06-21
Alternative parts: 9CQV-081000-6000
Price: 1 017,20 € : 1 017,20 €
01
P/N (SKU): 9CQV-081000-6000
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2021-08-06
Alternative parts:
Price: 1 044,40 € : 1 044,40 €
-+
02
P/N (SKU): 7020-081050-10000
Part Name: REAR BRAKE CALIPER, LH
Effective: 2021-06-21
Alternative parts: 9DSV-081050-B000
Specification: SINTERED PAD
Price: 216,60 € : 216,60 €
-+
03
P/N (SKU): 7020-0810A0
Part Name: REAR BRAKE PAD ASSY
Effective: 2021-06-21
Alternative parts: 5ASV-0813A0
Price: 24,40 € : 24,40 €
-+
04
P/N (SKU): 901B-080102
Part Name: WASHER
Effective: 2021-06-21
Alternative parts: 0010-060010
Specification: 80
Price: 0,55 € : 0,55 €
05
P/N (SKU): 7020-081004
Part Name: BANJO BOLT
Effective: 2021-06-21
Alternative parts:
Price: 3,05 € : 3,05 €
-+
06
P/N (SKU): 9GQB-080110-10000
Part Name: REAR BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 85,40 € : 85,40 €
-+
07
P/N (SKU): 30006-102030810
Part Name: BOLT M10x1.25x30
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25x30
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-06-21
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
09
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-06-21
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 7020-081060-10000
Part Name: REAR BRAKE CALIPER, RH
Effective: 2021-06-21
Alternative parts: 9DSV-081060-B000
Specification: SINTERED PAD
Price: 207,80 € : 207,80 €
-+
11
P/N (SKU): 9CRB-081010
Part Name: MASTER CYLINDER
Effective: 2021-06-21
Alternative parts:
Price: 86,50 € : 86,50 €
-+
12
P/N (SKU): 9GQ0-080010
Part Name: BRACKET, OIL PIPE
Effective: 2021-06-21
Alternative parts:
Price: 3,30 € : 3,30 €
-+
13
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-06-21
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 9GQ0-080210-10000
Part Name: PEDAL, BRAKE
Effective: 2021-06-21
Alternative parts:
Price: 9,15 € : 9,15 €
-+
15
P/N (SKU): 9GQ0-080202
Part Name: RETURN SPRING, BRAKE PEDAL
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 30304-140410
Part Name: WASHER
Effective: 2021-06-21
Alternative parts: 30306-140112
Specification: 14
Price: 0,55 € : 0,55 €
17
P/N (SKU): 30801-01405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-06-21
Alternative parts:
Specification: 14
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 9GQA-080150-10000
Part Name: FRONT BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 22,40 € : 22,40 €
-+
19
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-06-21
Alternative parts:
Specification: M8x25
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 9GQ0-080020
Part Name: BRACKET, OIL PIPE
Effective: 2021-06-21
Alternative parts:
Price: 3,30 € : 3,30 €
-+
21
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25x20
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 7020-081040-10000
Part Name: FRONT BRAKE CALIPER
Effective: 2021-06-21
Alternative parts:
Specification: RIGHT SIDE UFORCE, LEFT SIDE ZFORCE
Price: 91,50 € : 91,50 €
-+
23
P/N (SKU): 7020-0810B0
Part Name: FRONT BRAKE PAD ASSY
Effective: 2021-06-21
Alternative parts: 5ASV-0811A0
Price: 26,80 € : 26,80 €
-+
24
P/N (SKU): 9GQA-080120-10000
Part Name: RH FRONT BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 21,60 € : 21,60 €
-+
25
P/N (SKU): 30202-060830
Part Name: NUT M6
Effective: 2021-06-21
Alternative parts: 30202-060110
Specification: M6
Price: 0,55 € : 0,55 €
26
P/N (SKU): 7020-080010
Part Name: HYDRAULIC INDUCTION SWITCH
Effective: 2021-06-21
Alternative parts: 7020-080010-20000
Specification: ORDINARY
Price: 18,30 € : 18,30 €
27
P/N (SKU): 9GQA-080110-10000
Part Name: LH FRONT BRAKE FLUID HOSE
Effective: 2021-06-21
Alternative parts:
Price: 22,00 € : 22,00 €
-+
28
P/N (SKU): 30006-060045810
Part Name: BOLT M6x45
Effective: 2021-06-21
Alternative parts:
Specification: M6x45
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 9GQ0-080101
Part Name: FLUID RESERVOIR HOSE 1
Effective: 2021-06-21
Alternative parts:
Price: 5,50 € : 5,50 €
-+
30
P/N (SKU): 9GQ0-080102
Part Name: FLUID RESERVOIR HOSE 2
Effective: 2021-06-21
Alternative parts:
Price: 5,90 € : 5,90 €
-+
31
P/N (SKU): 9010-080405
Part Name: CLAMP
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
32
P/N (SKU): 9GQ0-080110
Part Name: FLUID RESERVOIR
Effective: 2021-06-21
Alternative parts:
Price: 17,30 € : 17,30 €
-+
33
P/N (SKU): 30110-480160010
Part Name: SCREW
Effective: 2021-06-21
Alternative parts:
Specification: ST4.8x16
Price: 0,55 € : 0,55 €
-+
34
P/N (SKU): 7020-081020-10000
Part Name: MASTER CYLINDER, HAND BRAKE
Effective: 2021-06-21
Alternative parts:
Price: 61,00 € : 61,00 €
-+
35
P/N (SKU): 9CR6-080400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2021-06-21
Alternative parts:
Price: 5,10 € : 5,10 €
-+
35
P/N (SKU): 9CRV-080400-2400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2022-04-22
Alternative parts:
Price: 4,40 € : 4,40 €
-+
36
P/N (SKU): 9050-080260-10000
Part Name: PARKING BRAKE LEVER ASSY
Effective: 2021-06-21
Alternative parts:
Price: 30,50 € : 30,50 €
-+
37
P/N (SKU): 9GQB-080300-10000
Part Name: REAR PARKING CABLE
Effective: 2021-06-21
Alternative parts: 9GQB-080300-20000
Price: 32,30 € : 32,30 €
37
P/N (SKU): 9CQV-080300-6001
Part Name: REAR PARKING CABLE
Effective: 2021-10-06
Alternative parts: 9CQV-080300-6002
Price: 32,30 € : 32,30 €
38
P/N (SKU): 7020-082010
Part Name: FLUID HOSE, HAND BRAKE
Effective: 2021-06-21
Alternative parts:
Price: 24,90 € : 24,90 €
-+
39
P/N (SKU): 7020-081070
Part Name: HYDRAULIC DISTRIBUTION VALVE
Effective: 2021-06-21
Alternative parts: 9AWV-081070-4000
Price: 49,90 € : 49,90 €
-+
40
P/N (SKU): 7020-081002
Part Name: PIPE CLIP, MASTER CYLINDER
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
41
P/N (SKU): 7020-081030-10000
Part Name: FRONT BRAKE CALIPER
Effective: 2021-06-21
Alternative parts:
Specification: LEFT SIDE UFORCE, RIGHT SIDE ZFORCE
Price: 91,50 € : 91,50 €
-+
