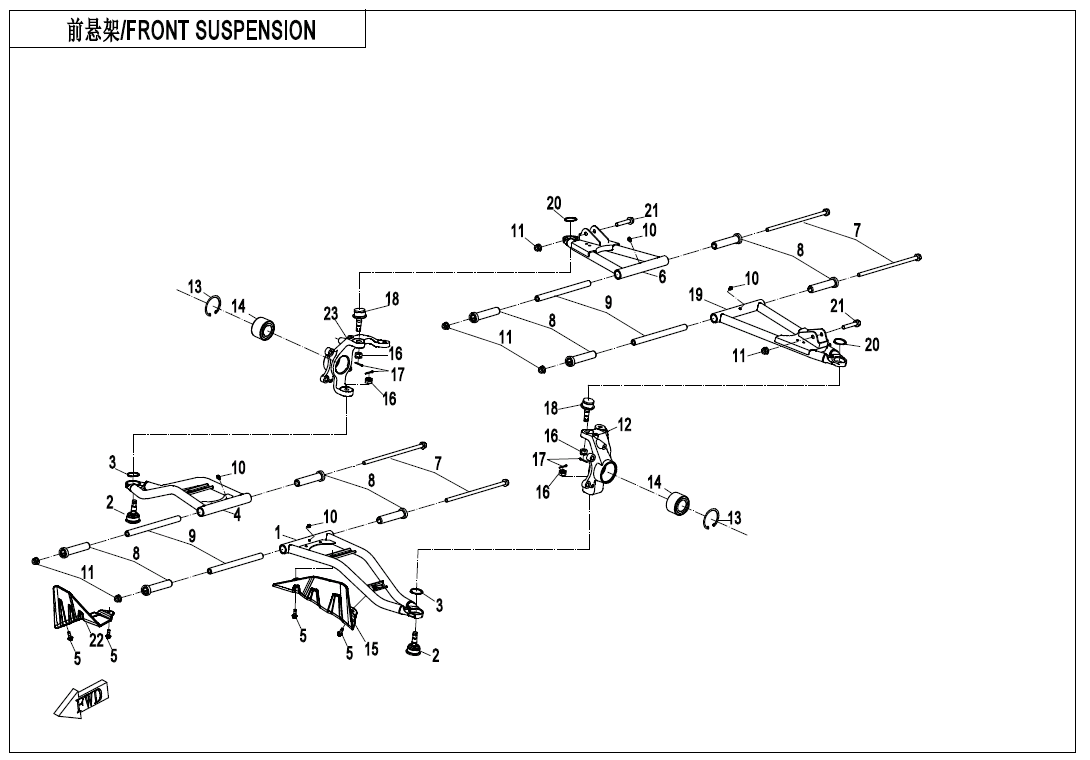

» » » FRONT SUSPENSION - F05-1
P/N (SKU): 5ASV-050210-6001
Part Name: FRONT LH LOWER SWING ARM Effective: 2021-05-12
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY Effective: 2021-05-12
Specification: CCVI
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT 34 Effective: 2021-05-12
Specification: 34
P/N (SKU): 5ASV-050410-6001
Part Name: FRONT RH LOWER SWING ARM Effective: 2021-05-12
P/N (SKU): 8010-000004
Part Name: BOLT M6x14 Effective: 2021-05-12
Specification: M6x14
P/N (SKU): 5ASV-050310-6001
Part Name: FRONT RH UPPER SWING ARM Effective: 2021-05-12
P/N (SKU): 4060-060101
Part Name: MOUNTING SHAFT, REAR ARM Effective: 2021-05-12
P/N (SKU): 5ASV-050001-6000
Part Name: LONG BUSHING Effective: 2021-05-12
P/N (SKU): 9060-060101-00002
Part Name: MIDDLE SPACER, REAR UPPER SWING ARM Effective: 2021-05-12
P/N (SKU): 3120100
Part Name: RESERVOIR Effective: 2021-05-12
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25 Effective: 2021-05-12
Specification: M10x1.25
P/N (SKU): 5ASV-050701-6000
Part Name: LH STEERING KNUCKLE Effective: 2021-05-12
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE Effective: 2021-05-12
Specification: 60
P/N (SKU): 30411-03080
Part Name: HUB BEARING Effective: 2021-05-12
P/N (SKU): 5ASV-050201-6000
Part Name: GUARD, FRONT LH SWING ARM Effective: 2021-05-12
P/N (SKU): 30219-122810
Part Name: NUT M12x1.25 Effective: 2021-05-12
Specification: M12x1.25
P/N (SKU): 30903-0322210
Part Name: COTTER PIN Effective: 2021-05-12
Specification: 3.2x22
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY Effective: 2021-05-12
Specification: CCVI
P/N (SKU): 5ASV-050110-6001
Part Name: FRONT LH UPPER SWING ARM Effective: 2021-05-12
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT 32 Effective: 2021-05-12
Specification: 32 A-TYPE
P/N (SKU): 30006-102055110
Part Name: BOLT Effective: 2021-05-12
P/N (SKU): 5ASV-050401-6000
Part Name: GUARD, FRONT RH SWING ARM Effective: 2021-05-12
P/N (SKU): 5ASV-050801-6000
Part Name: RH STEERING KNUCKLE Effective: 2021-05-12
