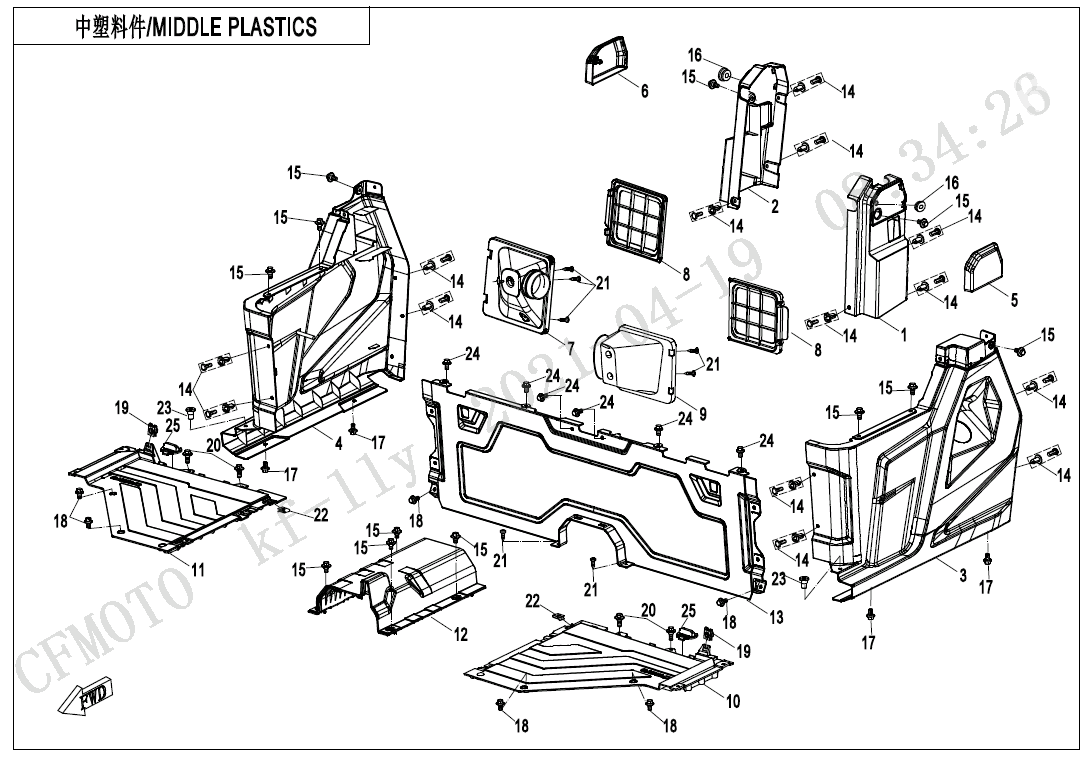

MIDDLE PLASTICS(FOR SIDE DOORS) - F04-3-A-V5

MIDDLE PLASTICS(FOR SIDE DOORS) - F04-3-A-V5

No.

01
P/N (SKU): 5HY0-042021
Part Name: REAR LH SIDE UPPER PANEL
Effective: 2021-04-19
Alternative parts:
Price: 11,40 € : 11,40 €
-+
02
P/N (SKU): 5HY0-042022
Part Name: REAR RH SIDE UPPER PANEL
Effective: 2021-04-19
Alternative parts:
Price: 11,40 € : 11,40 €
-+
03
P/N (SKU): 5HY0-042023
Part Name: REAR LH SIDE PANEL
Effective: 2021-04-19
Alternative parts: 5HYV-042023-1C00
Price: 53,50 € : 53,50 €
-+
04
P/N (SKU): 5HY0-042024
Part Name: REAR RH SIDE PANEL
Effective: 2021-04-19
Alternative parts: 5HYV-042024-1C00
Price: 51,30 € : 51,30 €
05
P/N (SKU): 5HY0-042025
Part Name: MOUNT COVER, LH HINGE
Effective: 2021-04-19
Alternative parts:
Price: 2,20 € : 2,20 €
-+
06
P/N (SKU): 5HY0-042026
Part Name: MOUNT COVER, RH HINGE
Effective: 2021-04-19
Alternative parts:
Price: 2,20 € : 2,20 €
-+
07
P/N (SKU): 5HY0-042028
Part Name: DEFLECTOR, RH
Effective: 2021-04-19
Alternative parts:
Price: 7,70 € : 7,70 €
-+
08
P/N (SKU): 5HY0-042030
Part Name: FILTER
Effective: 2021-04-19
Alternative parts:
Price: 3,70 € : 3,70 €
-+
09
P/N (SKU): 5HY0-042027
Part Name: DEFLECTOR, LH
Effective: 2021-04-19
Alternative parts:
Price: 8,45 € : 8,45 €
-+
10
P/N (SKU): 5HY#-043051-1000
Part Name: LH FOOT PEDAL
Effective: 2021-04-19
Alternative parts: 5HYV-043051-1C00
Price: 37,70 € : 37,70 €
11
P/N (SKU): 5HY#-043052-1000
Part Name: RH FOOT PEDAL
Effective: 2021-04-19
Alternative parts: 5HYV-043052-1C00
Price: 38,50 € : 38,50 €
12
P/N (SKU): 5HY0-043053
Part Name: SERVICE COVER, FOOT PEDAL
Effective: 2021-04-19
Alternative parts:
Price: 43,20 € : 43,20 €
-+
12
P/N (SKU): 5HYV-043053-1000
Part Name: SERVICE COVER, PEDAL
Effective: 2021-04-19
Alternative parts: 5HYV-043053-1001
Price: 43,20 € : 43,20 €
13
P/N (SKU): 5HY#-043061-1000-11
Part Name: FRONT LOWER BAFFLE, SEAT
Effective: 2021-04-19
Remarks: FOR NON HEATING EQUIPMENT SEAT
Alternative parts:
Price: 45,10 € : 45,10 €
-+
13
P/N (SKU): 5HY#-043061-1000-10
Part Name: FRONT LOWER BAFFLE, SEAT
Effective: 2021-04-19
Remarks: FOR HEATING EQUIPMENT SEAT
Alternative parts:
Price: 45,10 € : 45,10 €
-+
14
P/N (SKU): 9060-040310
Part Name: PLASTIC CLIPS
Effective: 2021-04-19
Alternative parts:
Price: 1,65 € : 1,65 €
-+
15
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-04-19
Alternative parts:
Specification: M6x14
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 0180-015003
Part Name: RUBBER BUSHING
Effective: 2021-04-19
Alternative parts:
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-04-19
Alternative parts:
Specification: M8×16
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 30006-060010810
Part Name: BOLT
Effective: 2021-04-19
Alternative parts:
Specification: M6×10
Price: 1,25 € : 1,25 €
-+
19
P/N (SKU): 8030-040800
Part Name: NUT CLIP M6
Effective: 2021-04-19
Alternative parts: 8030-040800-00001
Specification: M6
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 8010-000005
Part Name: BOLT M6x17
Effective: 2021-04-19
Alternative parts: 8010-000005-1000
Specification: M6x17
Price: 0,55 € : 0,55 €
21
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-04-19
Alternative parts:
Specification: ST4.8×16
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 5020-040049
Part Name: CLAMP ST4.8
Effective: 2021-04-19
Alternative parts:
Specification: ST4.8
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 5HY0-043001
Part Name: BOLT
Effective: 2021-04-19
Alternative parts: 6NQ#-000202-6001
Price: 1,50 € : 1,50 €
24
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2021-04-19
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
25
P/N (SKU): 5BY0-042032
Part Name: PLUG, PEDAL
Effective: 2021-04-19
Alternative parts:
Price: 0,95 € : 0,95 €
-+
