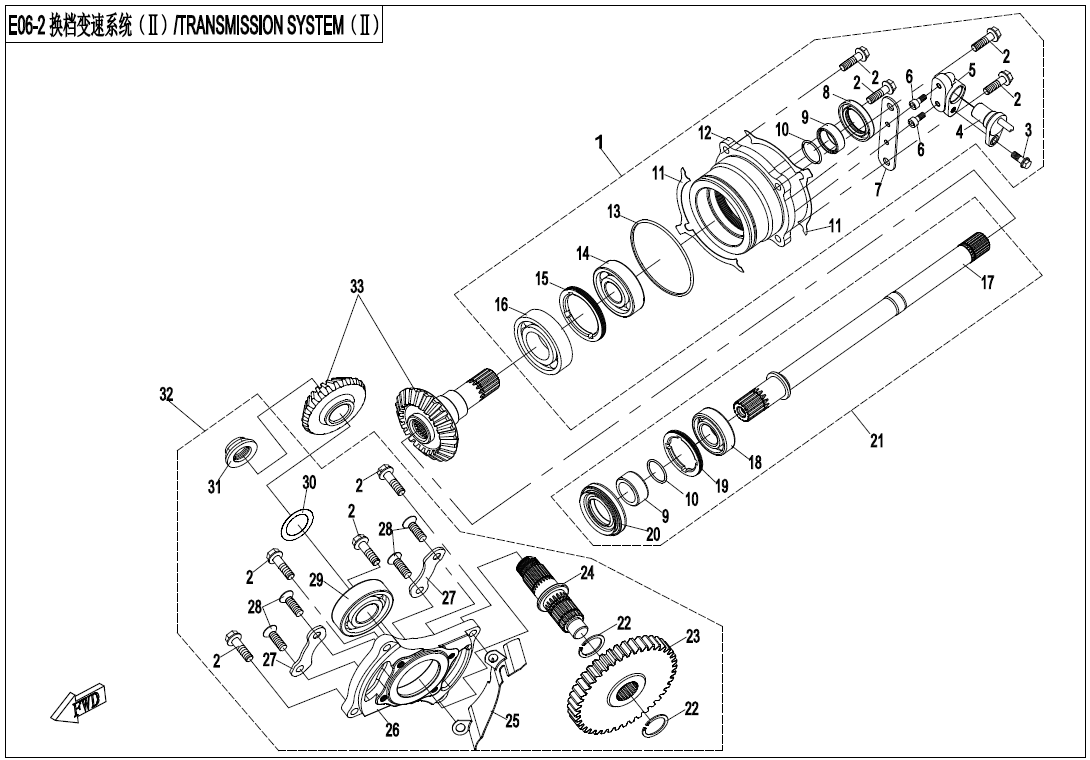

TRANSMISSION SYSTEM (2) - E06-2-A

No.

01
P/N (SKU): 0800-0622B0
Part Name: DRIVEN BEVEL GEAR ASSY
Alternative parts: 0800-0622B0-00001
Price: 77,20 € : 77,20 €
02
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8x28
Remarks: Can not be replaced by 0JYA-062104
Alternative parts: 0JYA-062104
Specification: M8x28
Price: 1,55 € : 1,55 €
-+
02
P/N (SKU): 0JYA-062104
Part Name: BOLT M8x28
Alternative parts:
Specification: M8x28
Price: 1,10 € : 1,10 €
-+
03
P/N (SKU): 30001-060014810
Part Name: BOLT M6x14
Alternative parts:
Specification: M6x14
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Alternative parts:
Price: 32,50 € : 32,50 €
-+
05
P/N (SKU): 0800-062208
Part Name: SEAT, SPEED SENSOR
Alternative parts:
Price: 4,05 € : 4,05 €
-+
06
P/N (SKU): 30102-050012810
Part Name: SCREW M5x12
Alternative parts:
Specification: M5x12
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 0800-062209
Part Name: PLATE, SPEED SENSOR
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0800-062204
Part Name: OIL SEAL 35x50x7
Alternative parts:
Specification: 35x50x7
Price: 5,10 € : 5,10 €
-+
09
P/N (SKU): 0800-062201
Part Name: SHAFT SLEEVE, OUTPUT SHAFT
Alternative parts:
Price: 6,25 € : 6,25 €
-+
10
P/N (SKU): 0800-062205
Part Name: O-SEAL RING 25x2
Alternative parts:
Specification: 25x2
Price: 1,25 € : 1,25 €
-+
11
P/N (SKU): 0800-062203-0001
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.2
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 0800-062203-0002
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.3
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 0800-062203-0003
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.4
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 0800-062203-0004
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.5
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 0800-062203
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.1
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 0800-062202-1000
Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR
Alternative parts: 0800-062202-10001
Price: 40,70 € : 40,70 €
13
P/N (SKU): 0180-062205
Part Name: O-SEAL RING 88x2.5
Alternative parts:
Specification: 88x2.5
Price: 2,95 € : 2,95 €
-+
14
P/N (SKU): 30400-02502
Part Name: BEARING
Alternative parts:
Specification: CHINA
Price: 7,00 € : 7,00 €
-+
15
P/N (SKU): 0800-062206
Part Name: STOPPER NUT, BEARING
Alternative parts:
Price: 2,95 € : 2,95 €
-+
16
P/N (SKU): 30400-03500
Part Name: BEARING
Alternative parts:
Specification: 35
Price: 8,45 € : 8,45 €
-+
17
P/N (SKU): 0800-062301-00001
Part Name: FRONT OUTPUT SHAFT
Alternative parts:
Price: 36,30 € : 36,30 €
-+
18
P/N (SKU): 30400-02501
Part Name: BEARING
Alternative parts:
Specification: 25
Price: 5,15 € : 5,15 €
-+
19
P/N (SKU): 0180-060008
Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT
Alternative parts:
Price: 4,40 € : 4,40 €
-+
20
P/N (SKU): 0JWA-062302
Part Name: OIL SEAL 35x61x9(14)
Alternative parts:
Specification: 35x61x9
Price: 7,00 € : 7,00 €
-+
21
P/N (SKU): 0800-062300-00001
Part Name: FRONT OUTPUT SHAFT ASSY
Alternative parts:
Price: 59,00 € : 59,00 €
-+
22
P/N (SKU): 0180-061007-0050
Part Name: CIRCLIP 25
Alternative parts:
Specification: 25
Price: 1,35 € : 1,35 €
-+
23
P/N (SKU): 0800-062102
Part Name: OUTPUT DRIVEN GEAR
Alternative parts:
Price: 39,90 € : 39,90 €
-+
24
P/N (SKU): 0800-062101
Part Name: DRIVE BEVEL GEAR SHAFT
Alternative parts:
Price: 26,00 € : 26,00 €
-+
25
P/N (SKU): 0800-062108
Part Name: RETAINING PLATE
Alternative parts:
Price: 1,85 € : 1,85 €
-+
26
P/N (SKU): 0800-062103
Part Name: BEARING SEAT, DRIVE BEVEL GEAR
Alternative parts:
Price: 25,50 € : 25,50 €
-+
27
P/N (SKU): 0180-062104-0010
Part Name: LIMITATOR, BEARING
Alternative parts:
Price: 1,25 € : 1,25 €
-+
28
P/N (SKU): 30124-080025810
Part Name: SCREW M8x25
Alternative parts:
Specification: M8x25
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 30499-02501
Part Name: BEARING
Alternative parts:
Specification: 25
Price: 16,30 € : 16,30 €
-+
30
P/N (SKU): 0180-062105-0002
Part Name: ADJUST GASKET, DRIVE BEVEL GEAR
Alternative parts:
Specification: t=0.25
Price: 0,95 € : 0,95 €
-+
30
P/N (SKU): 0180-062105-0004
Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR
Alternative parts:
Specification: t=0.35
Price: 0,95 € : 0,95 €
-+
30
P/N (SKU): 0180-062105
Part Name: ADJUST GASKET, DRIVE BEVEL GEAR
Alternative parts:
Specification: t=0.15
Price: 3,30 € : 3,30 €
-+
30
P/N (SKU): 0180-062105-0001
Part Name: ADJUST GASKET, DRIVE BEVEL GEAR
Alternative parts:
Specification: t=0.2
Price: 0,95 € : 0,95 €
-+
30
P/N (SKU): 0180-062105-0003
Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR
Alternative parts:
Specification: t=0.3
Price: 0,95 € : 0,95 €
-+
31
P/N (SKU): 0180-062107-0010
Part Name: LOCK NUT, BEVEL GEAR
Alternative parts: 0180-062107-00001
Price: 1,50 € : 1,50 €
32
P/N (SKU): 0800-0621B0
Part Name: DRIVE BEVEL GEAR ASSY
Alternative parts:
Price: 82,10 € : 82,10 €
-+
33
P/N (SKU): 0800-0622A0-00001
Part Name: BEVEL GEAR ASSY
Alternative parts:
Price: 98,30 € : 98,30 €
-+
