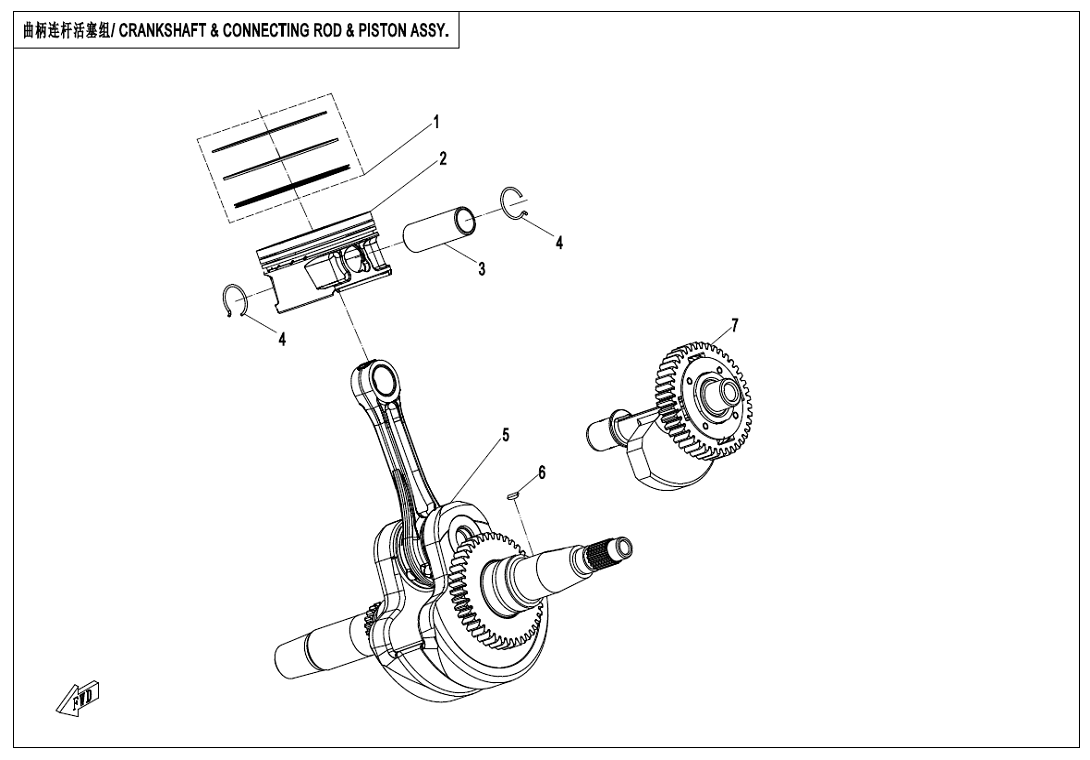

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY.(MATCHED WITH 600W MAGNETO) - E04-B-V2

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
01
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUPPLIERS:DY
Price: 43,80 € : 43,80 €
-+
02
P/N (SKU): 0GS0-040001-00010
Part Name: PISTON
Effective: 2021-02-26
Remarks: Ⅰ组
Alternative parts: 0GS0-040001-00012
Specification: GROUP 1
Price: 40,70 € : 40,70 €
02
P/N (SKU): 0GS0-040001-00020
Part Name: PISTON
Effective: 2021-02-26
Remarks: Ⅱ组
Alternative parts: 0GS0-040001-00021
Specification: GROUP 2
Price: 40,70 € : 40,70 €
02
P/N (SKU): 0GS0-040001-00011
Part Name: PISTON
Effective: 2021-02-26
Remarks: MARK Ⅰ
Alternative parts: 0GS0-040001-00012
Specification: GROUP 1
Price: 33,40 € : 33,40 €
02
P/N (SKU): 0GS0-040001-00021
Part Name: PISTON
Effective: 2021-02-26
Remarks: MARK Ⅱ
Alternative parts: 0GS0-040001-00022
Specification: GROUP 2
Price: 33,40 € : 33,40 €
02
P/N (SKU): 0GS0-040001-00012
Part Name: PISTON
Effective: 2021-10-27
Alternative parts:
Specification: MARK1
Price: 35,60 € : 35,60 €
-+
02
P/N (SKU): 0GS0-040001-00022
Part Name: PISTON
Effective: 2022-01-08
Alternative parts:
Specification: MARK 2
Price: 35,60 € : 35,60 €
-+
03
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2021-02-26
Alternative parts: 0800-040002-00001
Price: 8,05 € : 8,05 €
-+
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 0GS0-041000-30011
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: MATCHED WITH 0GS0-160000-00020
Alternative parts: 0GS0-041000-30013
Specification: COPPER BEARING@MARK A@WITH OIL HOLE@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 309,90 € : 309,90 €
05
P/N (SKU): 0GS0-041000-30013
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Alternative parts: 0GS0-041000-30014
Specification: COPPER BEARING@MARK A@WITH OIL HOLE@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 305,00 € : 305,00 €
-+
06
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
07
P/N (SKU): 0GS0-160000-00021
Part Name: BALANCER SHAFT ASSY
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH 0GS0-041000-30011
Alternative parts:
Specification: GROUP B@MATCHED WITH MARK A BLANCER SHAFT ASSY
Price: 130,60 € : 130,60 €
-+
