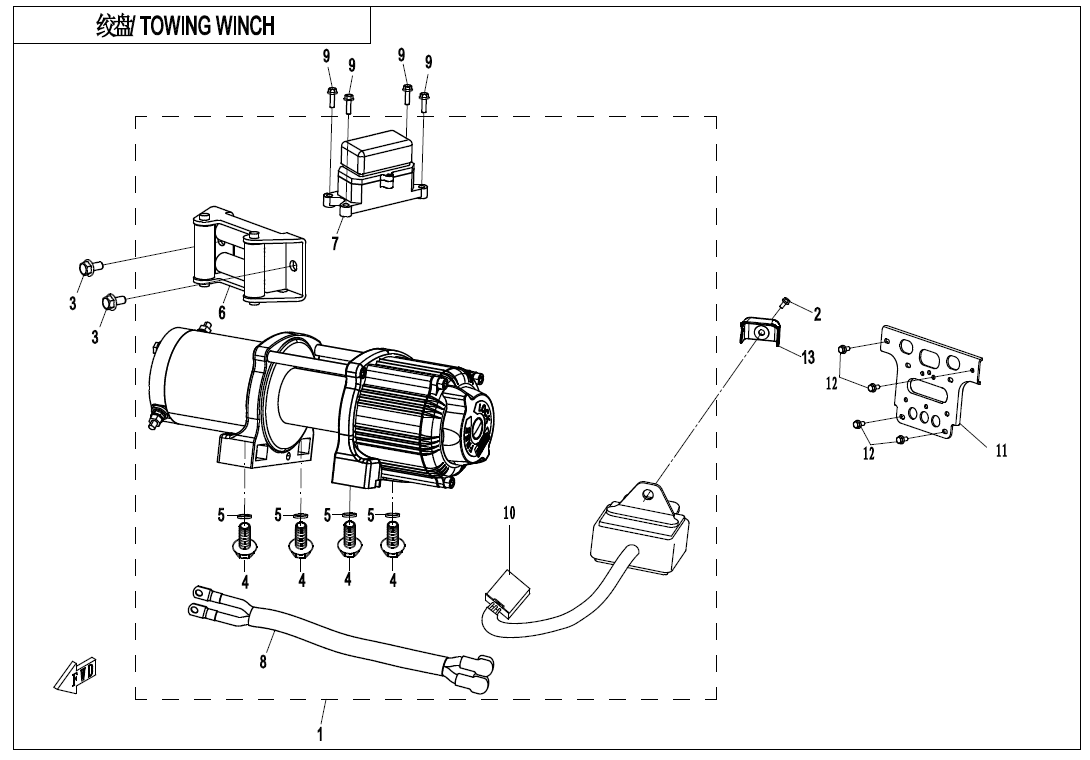

TOWING WINCH - F15-2-V3

TOWING WINCH - F15-2-V3

No.

01
P/N (SKU): 9AWA-150700-00001
Part Name: WINCH ASSY.
Effective: 2021-02-26
Alternative parts:
Specification: 3000Lbs
Price: 330,40 € : 330,40 €
-+
01
P/N (SKU): 9AWA-150700-10001
Part Name: WINCH ASSY.
Effective: 2021-02-26
Alternative parts:
Specification: 3500Lbs
Price: 330,40 € : 330,40 €
-+
02
P/N (SKU): A000-040702
Part Name: INNER HEX SCREW M6x12
Effective: 2021-02-26
Alternative parts: 6KM#-040702-8000
Specification: M6x12
Price: 0,55 € : 0,55 €
03
P/N (SKU): 30006-060020810
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6x20
Price: 0,55 € : 0,55 €
04
P/N (SKU): 30004-080025810
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts: 30004-080025840
Specification: M8x25
Price: 0,55 € : 0,55 €
05
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 9030-150730
Part Name: CABLE PULLEY
Effective: 2021-02-26
Alternative parts:
Price: 25,50 € : 25,50 €
-+
07
P/N (SKU): 9010-150720-2000
Part Name: CONTROL RELAY
Effective: 2021-02-26
Alternative parts: 9010-150720-4000
Specification: IS REPLACED BY 9010-150720-4000
Price: 62,30 € : 62,30 €
08
P/N (SKU): 9AWA-150730
Part Name: WINCH CABLE
Effective: 2021-02-26
Alternative parts:
Price: 54,90 € : 54,90 €
-+
09
P/N (SKU): 30006-060025860
Part Name: BOLT M6x25
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 7020-150710
Part Name: SWITCH, WINCH
Effective: 2021-02-26
Alternative parts:
Price: 26,50 € : 26,50 €
-+
11
P/N (SKU): 9AWA-230001
Part Name: MOUNT PLATE, WINCH
Effective: 2021-02-26
Alternative parts:
Price: 28,20 € : 28,20 €
-+
12
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 9CR6-101002
Part Name: DECO COVER, WINCH SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
