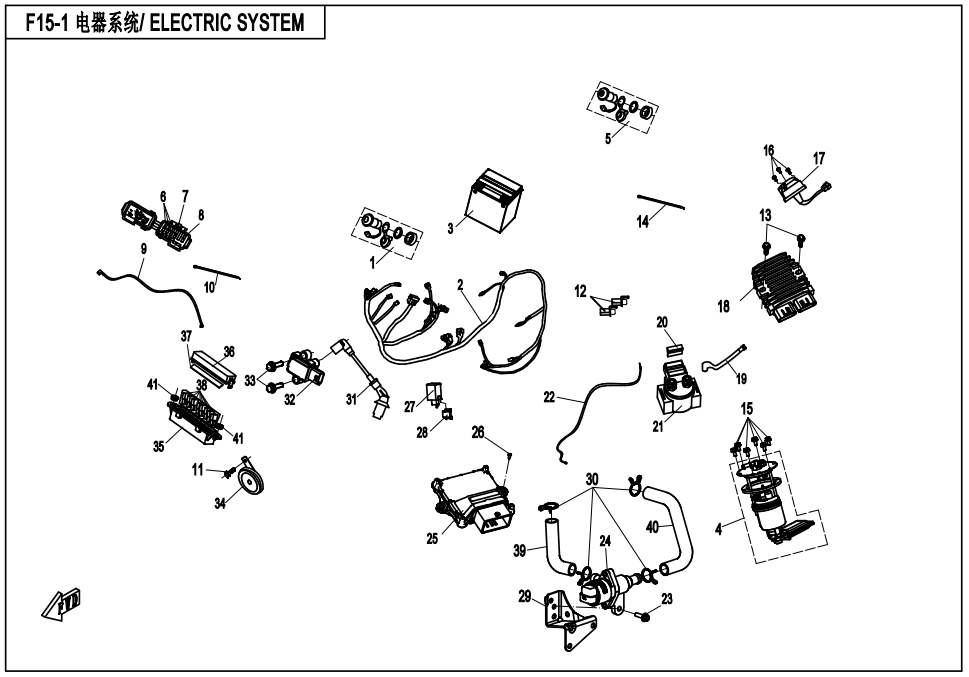

ELECTRIC SYSTEM - F15-1-V3

ELECTRIC SYSTEM - F15-1-V3

No.

01
P/N (SKU): 9GQ0-150500-10000
Part Name: OUTPUT SEAT,POWER
Effective: 2021-02-26
Alternative parts:
Price: 12,50 € : 12,50 €
-+
02
P/N (SKU): 9GQ2-150100-20000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9GQ2-150100-20002
Price: 343,20 € : 343,20 €
02
P/N (SKU): 9GQ2-150100-20001
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9GQ2-150100-20002
Price: 343,20 € : 343,20 €
02
P/N (SKU): 9GQ2-150100-20002
Part Name: MAIN CABLE
Effective: 2021-07-20
Alternative parts:
Price: 343,20 € : 343,20 €
-+
03
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
04
P/N (SKU): 901F-150900-10000
Part Name: FUEL PUMP
Effective: 2021-02-26
Alternative parts:
Price: 195,20 € : 195,20 €
-+
05
P/N (SKU): 9GQ0-150600-10000
Part Name: OUTPUT SEAT, USB
Effective: 2021-02-26
Alternative parts:
Price: 27,50 € : 27,50 €
-+
06
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: 806A-151305
Specification: 15A
Price: 3,70 € : 3,70 €
07
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts:
Specification: 5A
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 9GQL-150230-10000
Part Name: NEGATIVE WIRE,BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 17,30 € : 17,30 €
-+
10
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT M8x14
Effective: 2021-02-26
Alternative parts:
Specification: M8x14
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,45 € : 2,45 €
-+
13
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts:
Specification: M6x30
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 30006-050014810
Part Name: BOLT M5x14
Effective: 2021-02-26
Alternative parts:
Specification: M5x14
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 30105-050030410
Part Name: SCREW M5x30
Effective: 2021-02-26
Alternative parts:
Specification: M5x30
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 7020-150800
Part Name: POWER SOCKET, TRAILER
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 12,10 € : 12,10 €
-+
18
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 161,70 € : 161,70 €
-+
19
P/N (SKU): 9GQL-150210-10000
Part Name: POSITIVE WIRE,BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 17,30 € : 17,30 €
-+
20
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE 30A
Effective: 2021-02-26
Alternative parts:
Specification: 30A
Price: 2,60 € : 2,60 €
-+
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 24,40 € : 24,40 €
-+
22
P/N (SKU): 9GQ0-150220
Part Name: CABLE, STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 17,30 € : 17,30 €
-+
23
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 88,50 € : 88,50 €
-+
25
P/N (SKU): 0GR0-174000-50000
Part Name: ECU ASSY.
Effective: 2021-02-26
Alternative parts:
Specification: BOSCH MSE6.0
Price: 240,00 € : 240,00 €
-+
26
P/N (SKU): 30110-480160010
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x16
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 9GQ1-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: 9GQV-161000-7000
Price: 19,40 € : 19,40 €
-+
27
P/N (SKU): 9GQV-161000-7000
Part Name: FLASHER
Effective: 2021-11-09
Alternative parts:
Price: 7,00 € : 7,00 €
-+
28
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 9GQA-030010-30000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
30
P/N (SKU): 30601-118010
Part Name: CLAMP A18
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0GRB-178000-10000
Price: 15,30 € : 15,30 €
32
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 35,60 € : 35,60 €
-+
33
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
35
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,15 € : 7,15 €
-+
36
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
37
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
38
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
39
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 9,55 € : 9,55 €
-+
40
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2021-02-26
Alternative parts: 9GQA-001001-00001
Price: 15,80 € : 15,80 €
-+
41
P/N (SKU): 0180-015003
Part Name: RUBBER BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
