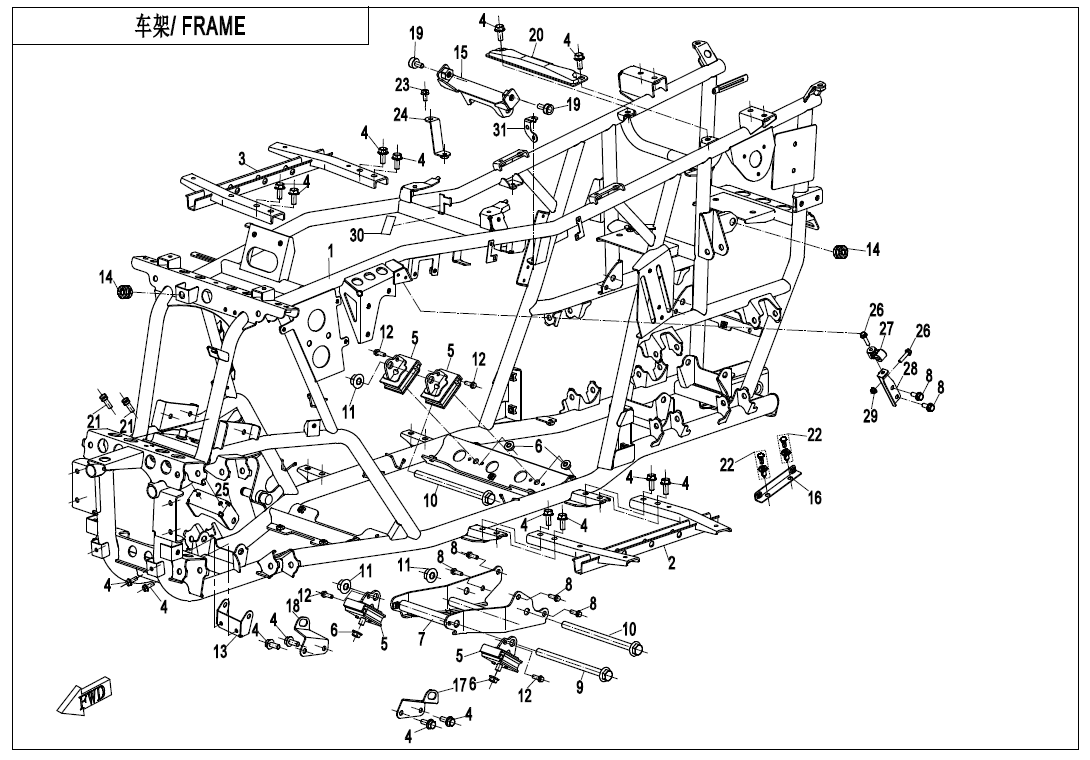

FRAME - F03-V4

No.

01
P/N (SKU): 9GQ0-031000-A0000
Part Name: FRAME
Alternative parts:
Price: 735,40 € : 735,40 €
-+
02
P/N (SKU): 9GQL-039100
Part Name: FOOT PEDAL, LH
Alternative parts:
Price: 22,00 € : 22,00 €
-+
03
P/N (SKU): 9GQL-039200
Part Name: FOOT PEDAL, RH
Alternative parts:
Price: 22,00 € : 22,00 €
-+
04
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Alternative parts:
Specification: M8x20
Price: 0,85 € : 0,85 €
-+
05
P/N (SKU): 401B-000200-10000
Part Name: DAMPER
Alternative parts:
Price: 12,10 € : 12,10 €
-+
06
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 9CR6-001100-20000
Part Name: FRONT BRACKET, ENGINE
Alternative parts:
Price: 25,50 € : 25,50 €
-+
08
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Alternative parts:
Specification: M10x20
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 30006-122170810
Part Name: BOLT M12x1.25x170
Alternative parts:
Specification: M12x1.25x170
Price: 3,30 € : 3,30 €
-+
10
P/N (SKU): 30006-122180810
Part Name: BOLT M12x1.25x180
Alternative parts:
Specification: M12x1.25x180
Price: 3,70 € : 3,70 €
-+
11
P/N (SKU): 30204-122810
Part Name: NUT M12x1.25
Alternative parts:
Specification: M12x1.25
Price: 1,05 € : 1,05 €
-+
12
P/N (SKU): 30102-060012810
Part Name: SCREW
Alternative parts:
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 9GQ0-030110
Part Name: LOWER BRACKET,FRONT GEAR CASE
Alternative parts:
Price: 2,95 € : 2,95 €
-+
14
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Alternative parts:
Price: 1,65 € : 1,65 €
-+
15
P/N (SKU): 9GQ0-030070-10000
Part Name: UPPER LINK SEAT, REAR GEAR CASE
Alternative parts:
Price: 5,90 € : 5,90 €
-+
16
P/N (SKU): 9GQA-030020
Part Name: BRACKET ASSY, ECU
Alternative parts:
Price: 2,20 € : 2,20 €
-+
17
P/N (SKU): 9GQ0-030004
Part Name: BRACKET, LH INNER FENDER
Alternative parts:
Price: 1,85 € : 1,85 €
-+
18
P/N (SKU): 9GQ0-030005
Part Name: BRACKET, INNER FENDER(RH)
Alternative parts:
Price: 1,85 € : 1,85 €
-+
19
P/N (SKU): 30102-102020810
Part Name: SCREW M10x1.25x20
Alternative parts:
Specification: M10x1.25x20
Price: 2,05 € : 2,05 €
-+
20
P/N (SKU): 9GQ0-030010-10000
Part Name: FIXING BRACKET,SEAT
Alternative parts:
Price: 4,40 € : 4,40 €
-+
21
P/N (SKU): 30102-080020110
Part Name: SCREW M8x20
Alternative parts: 30102-080020810
Specification: M8x20
Price: 0,95 € : 0,95 €
22
P/N (SKU): 9060-040310
Part Name: PLASTIC CLIPS
Alternative parts:
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
24
P/N (SKU): 9GQ0-030080
Part Name: LINKING BRACKET, AIR FILTER
Alternative parts:
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 9GQ0-030050-10000
Part Name: UPPER BRACKET, FRONT GEAR CASE
Alternative parts:
Price: 6,25 € : 6,25 €
-+
26
P/N (SKU): 30006-080035810
Part Name: BOLT M8x35
Alternative parts:
Specification: M8x35
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Alternative parts:
Price: 6,10 € : 6,10 €
-+
28
P/N (SKU): 9GQ0-030120
Part Name: SIDE SUPPORT ASSY
Alternative parts:
Price: 10,65 € : 10,65 €
-+
29
P/N (SKU): 30204-080810
Part Name: NUT M8
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
30
P/N (SKU): 6NQ0-190005
Part Name: GLUE FILM, REAR FORK
Alternative parts:
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 9GQ0-030131
Part Name: LOCK PLATE, WIRE
Alternative parts:
Price: 1,25 € : 1,25 €
-+
