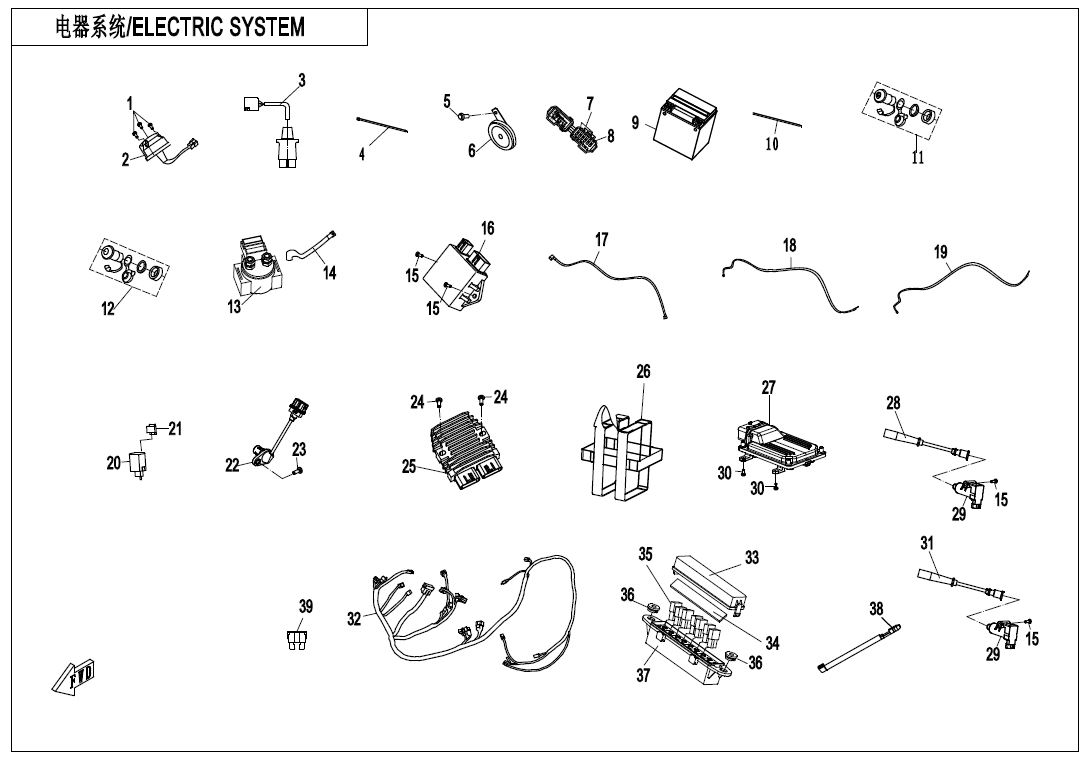

ELECTRIC SYSTEM - F15-1-V2 | 2021, ATV, CF1000ATR

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 30105-050030410

Part Name: SCREW M5x30

Effective: 2021-02-26

Alternative parts:

Specification: M5x30

Price: 0,55 € : 0,55 €

P/N (SKU): 7020-150800-20000

Part Name: POWER SOCKET, TRAILER

Effective: 2021-02-26

Alternative parts:

Price: 17,30 € : 17,30 €

P/N (SKU): 9010-151020

Part Name: ADAPTOR SEAT, TRAILER POWER

Effective: 2021-02-26

Alternative parts:

Price: 13,20 € : 13,20 €

P/N (SKU): 9010-150004

Part Name: TIE

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-080016840

Part Name: BOLT M8x16

Effective: 2021-02-26

Alternative parts: 30006-080016810

Specification: M8x16

Price: 1,65 € : 1,65 €

P/N (SKU): 5020-150700

Part Name: ELECTRIC HORN

Effective: 2021-02-26

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 806A-151303

Part Name: FUSE

Effective: 2021-02-26

Alternative parts: 806A-151305

Specification: 15A

Price: 3,70 € : 3,70 €

P/N (SKU): 806A-151302

Part Name: FUSE 10A

Effective: 2021-02-26

Alternative parts:

Specification: 10A

Price: 1,50 € : 1,50 €

P/N (SKU): 31023004

Part Name: BATTERY

Effective: 2021-02-26

Alternative parts:

Specification: DYNAVOLT,12V30Ah

Price: 266,90 € : 266,90 €

P/N (SKU): 8010-150003

Part Name: TIE

Effective: 2021-02-26

Alternative parts:

Specification: 5x250

Price: 1,25 € : 1,25 €

P/N (SKU): 9GQ0-150600-20000

Part Name: USB OUTLET SOCKET

Effective: 2021-02-26

Alternative parts:

Price: 16,50 € : 16,50 €

P/N (SKU): 9GQ0-150500-20000

Part Name: POWER OUTLET SOCKET

Effective: 2021-02-26

Alternative parts:

Price: 12,10 € : 12,10 €

P/N (SKU): 9CR6-150310

Part Name: STARTER RELAY

Effective: 2021-02-26

Alternative parts:

Price: 24,40 € : 24,40 €

P/N (SKU): 9AWA-150220

Part Name: CABLE,STARTING MOTOR

Effective: 2021-02-26

Alternative parts:

Price: 24,90 € : 24,90 €

P/N (SKU): 30006-060035810

Part Name: BOLT M6x35

Effective: 2021-02-26

Alternative parts:

Specification: M6x35

Price: 0,55 € : 0,55 €

P/N (SKU): 9AWA-150880-20000

Part Name: DRL CONTROLLER

Effective: 2021-02-26

Alternative parts:

Price: 41,40 € : 41,40 €

P/N (SKU): 9AWA-150210-10000

Part Name: POSITIVE WIRE,BATTERY

Effective: 2021-02-26

Alternative parts: 9AWA-150210-20000

Price: 10,65 € : 10,65 €

P/N (SKU): 9AWA-150230

Part Name: NEGATIVE WIRE,BATTERY

Effective: 2021-02-26

Alternative parts:

Price: 19,10 € : 19,10 €

P/N (SKU): 9AWA-150240-10000

Part Name: NEGATIVE CABLE, STARTER MOTOR

Effective: 2021-02-26

Alternative parts:

Price: 18,30 € : 18,30 €

P/N (SKU): 9AWA-150340-10000

Part Name: FLASHER

Effective: 2021-02-26

Alternative parts:

Price: 8,80 € : 8,80 €

P/N (SKU): 8010-150002

Part Name: CUSHION WASHER, FLASHER

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 7020-150400

Part Name: SPEED SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 32,50 € : 32,50 €

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts: 30006-060012870

Specification: M6x12

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-060025810

Part Name: BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M6x25

Price: 0,55 € : 0,55 €

P/N (SKU): 0800-177000-30000

Part Name: REGULATOR

Effective: 2021-02-26

Alternative parts: 9DSV-151000-4000

Specification: 600W

Price: 133,90 € : 133,90 €

P/N (SKU): 9060-152100

Part Name: BELT, BATTERY

Effective: 2021-02-26

Alternative parts:

Price: 2,95 € : 2,95 €

P/N (SKU): 9AY#-001000-2100

Part Name: ECU ASSY.

Effective: 2021-02-26

Alternative parts:

Specification: LOF

Price: 354,50 € : 354,50 €

P/N (SKU): 9AY#-001000-3000

Part Name: ECU ASSY.

Effective: 2021-02-26

Alternative parts: 9AYV-001000-3010

Specification: EU167

Price: 366,00 € : 366,00 €

P/N (SKU): 0JYA-179000

Part Name: HIGH VOLTAGE CABLE

Effective: 2021-02-26

Alternative parts: 0JYA-179000-10000

Price: 16,20 € : 16,20 €

P/N (SKU): 018B-178000

Part Name: IGNITION COIL

Effective: 2021-02-26

Alternative parts:

Price: 35,60 € : 35,60 €

P/N (SKU): 30006-060020810

Part Name: BOLT M6x20

Effective: 2021-02-26

Alternative parts: 30006-060020870

Specification: M6x20

Price: 0,55 € : 0,55 €

P/N (SKU): 0JY0-179100

Part Name: HIGH VOLTAGE CABLE

Effective: 2021-02-26

Alternative parts: 0JY0-179100-10000

Price: 15,10 € : 15,10 €

P/N (SKU): 9AY0-150100-E0003

Part Name: MAIN CABLE

Effective: 2021-02-26

Alternative parts:

Specification: NA@INTERNATIONAL@EU167

Price: 480,10 € : 480,10 €

P/N (SKU): 9AY0-150100-F0003

Part Name: MAIN CABLE

Effective: 2021-02-26

Remarks: LOF

Alternative parts:

Specification: LOF

Price: 480,10 € : 480,10 €

P/N (SKU): 7020-040412-10000

Part Name: COVER,RELAY BOX

Effective: 2021-02-26

Alternative parts:

Price: 3,70 € : 3,70 €

P/N (SKU): 7020-040414

Part Name: RUBBER WASHER, RELAY BOX COVER

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 9010-150350

Part Name: AUXILIARY RELAY

Effective: 2021-02-26

Alternative parts:

Price: 6,65 € : 6,65 €

P/N (SKU): 0180-015003

Part Name: RUBBER BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 7020-040411

Part Name: RELAY BOX

Effective: 2021-02-26

Alternative parts:

Price: 7,15 € : 7,15 €

P/N (SKU): 0JWA-012202-10000

Part Name: ADAPTOR CABLE, OIL PRESSURE SWITCH

Effective: 2021-02-26

Alternative parts:

Price: 10,65 € : 10,65 €

P/N (SKU): CFC#-150005-4504

Part Name: FUSE 60A

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €
