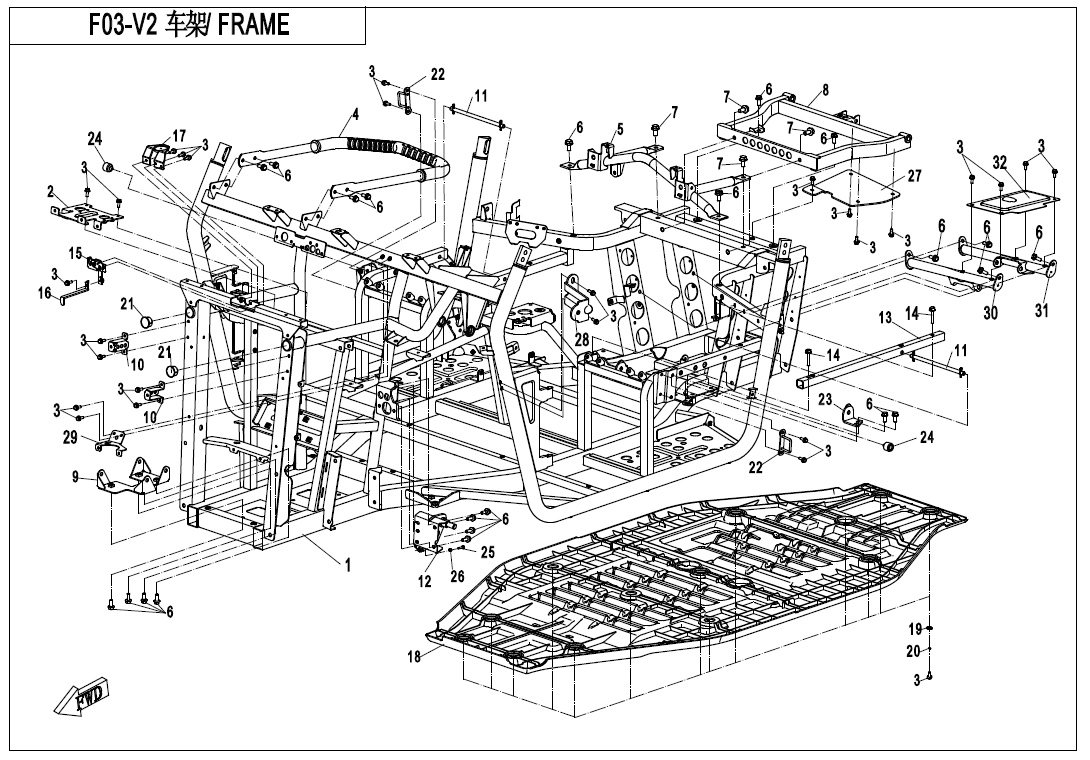

FRAME - F03-V2

No.

01
P/N (SKU): 5UWB-031000
Part Name: FRAME ASSY
Alternative parts:
Price: 1 482,00 € : 1 482,00 €
-+
02
P/N (SKU): 7030-037110
Part Name: UPPER BRACKET, RADIATOR
Alternative parts:
Price: 12,90 € : 12,90 €
-+
03
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 7030-037210
Part Name: FRONT ARMREST RAIL ASSY
Alternative parts:
Price: 51,70 € : 51,70 €
-+
05
P/N (SKU): 7030-037400-20000
Part Name: BRACKET ASSY, SEAT BELT BUCKLE
Alternative parts:
Price: 53,10 € : 53,10 €
-+
06
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Alternative parts:
Specification: M8x20
Price: 0,85 € : 0,85 €
-+
07
P/N (SKU): 30001-102025810
Part Name: BOLT M10x1.25x25
Alternative parts:
Specification: M10x1.25x25
Price: 1,25 € : 1,25 €
-+
08
P/N (SKU): 7030-037600-10000
Part Name: BRACKET, CARGO BOX
Alternative parts:
Price: 64,10 € : 64,10 €
-+
09
P/N (SKU): 7030-038110-10000
Part Name: BRACKET, FRONT GEAR CASE
Alternative parts:
Price: 13,60 € : 13,60 €
-+
10
P/N (SKU): 7030-038210
Part Name: BRACKET, FRONT TOP COVER
Alternative parts:
Price: 5,50 € : 5,50 €
-+
11
P/N (SKU): 7030-037810
Part Name: ROD, SEAT LOCK
Alternative parts:
Price: 4,40 € : 4,40 €
-+
12
P/N (SKU): 7030-039110
Part Name: BRACKET, FOOT PEDAL
Alternative parts:
Price: 19,80 € : 19,80 €
-+
13
P/N (SKU): 7030-037710
Part Name: INNER BEAM, LH SEAT
Alternative parts:
Price: 11,80 € : 11,80 €
-+
14
P/N (SKU): 30006-080040810
Part Name: BOLT M8x40
Alternative parts:
Specification: M8x40
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 7030-010200
Part Name: LOCK, FRONT COVER
Alternative parts:
Price: 20,90 € : 20,90 €
-+
16
P/N (SKU): 7030-010201
Part Name: LEVER, FRONT COVER LOCK
Alternative parts:
Price: 2,20 € : 2,20 €
-+
17
P/N (SKU): 7030-040192
Part Name: SUPPORT PLATE, SPRING
Alternative parts:
Price: 2,60 € : 2,60 €
-+
18
P/N (SKU): 7030-040711-10000
Part Name: BASE PLATE
Alternative parts:
Price: 112,30 € : 112,30 €
-+
19
P/N (SKU): 9060-040028
Part Name: BASE PLATE GASKET
Alternative parts:
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 30303-060112
Part Name: WASHER
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 9060-038123
Part Name: FRAME PLUG
Alternative parts:
Price: 1,25 € : 1,25 €
-+
22
P/N (SKU): 7030-370700
Part Name: LOCK HOOK
Alternative parts:
Price: 6,10 € : 6,10 €
-+
23
P/N (SKU): 7030-038711
Part Name: REAR JOINT PLATE,ENGINE
Alternative parts:
Price: 3,30 € : 3,30 €
-+
24
P/N (SKU): 9030-370901-10000
Part Name: CUSHION RUBBER
Alternative parts:
Price: 1,25 € : 1,25 €
-+
25
P/N (SKU): 30006-060025810
Part Name: BOLT M6x25
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 30200-060810
Part Name: NUT M6
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 7030-030001
Part Name: HEAT INSULATOR, CARGO BOX
Alternative parts:
Price: 15,40 € : 15,40 €
-+
28
P/N (SKU): 7030-030010
Part Name: BRACKET, OIL STEEL PIPE
Alternative parts:
Price: 2,95 € : 2,95 €
-+
29
P/N (SKU): 5UWB-030120
Part Name: MOUNTING BRACKET, OIL CUP
Alternative parts:
Price: 7,00 € : 7,00 €
-+
30
P/N (SKU): 5UWB-030300
Part Name: FRONT MOUNTING ASSY, REAR GEAR CASE
Alternative parts:
Price: 11,80 € : 11,80 €
-+
31
P/N (SKU): 5UWB-030200
Part Name: REAR MOUNTING ASSY, REAR GEAR CASE
Alternative parts:
Price: 11,80 € : 11,80 €
-+
32
P/N (SKU): 5UWB-030001
Part Name: HEAT INSULATION PLATE, REAR?GEAR CASE
Alternative parts:
Price: 5,15 € : 5,15 €
-+
