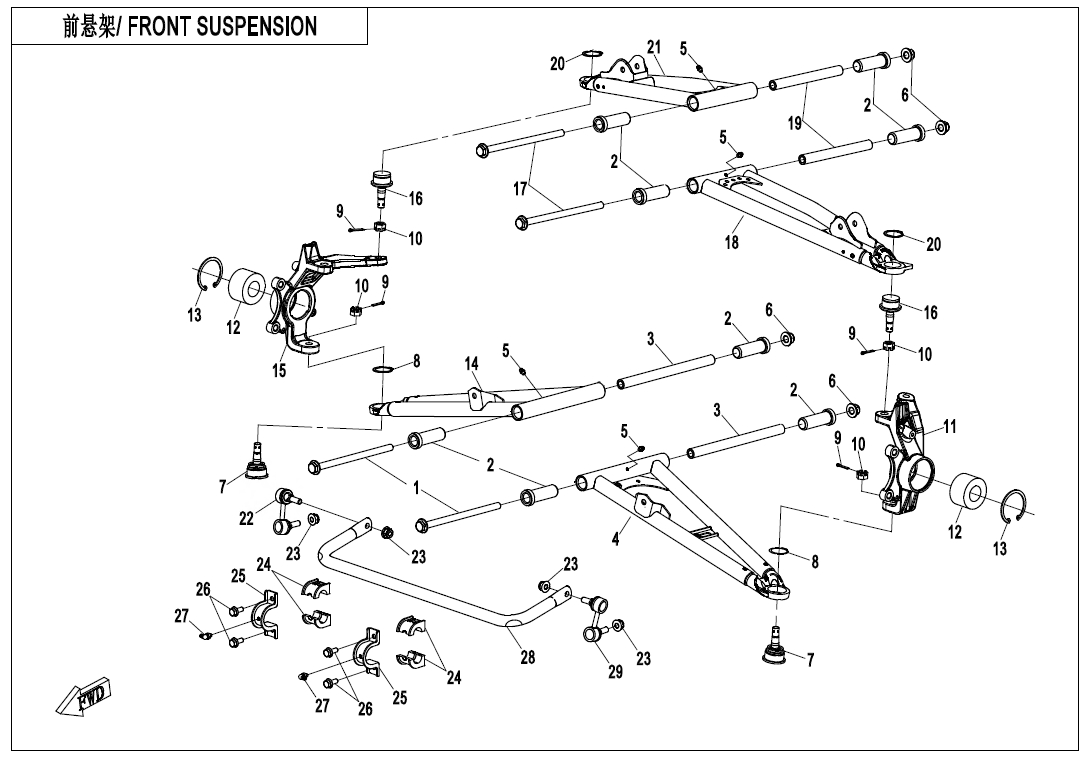

FRONT SUSPENSION - F05-1 | 2020, SSV, CF1000UTR-B | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5BY0-050203

Part Name: MOUNTING SHAFT, FRONT LOWER SWING ARM

Alternative parts:

Price: 6,60 € : 6,60 €

02

P/N (SKU): 5BY0-050102

Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM

Alternative parts:

Price: 2,60 € : 2,60 €

03

P/N (SKU): 5BY0-050201

Part Name: MIDDLE SPACER, FRONT LOWER SWING ARM

Alternative parts:

Price: 8,80 € : 8,80 €

04

P/N (SKU): 5BYA-050210

Part Name: FRONT LOWER SWING ARM ASSY., LH

Alternative parts:

Price: 57,10 € : 57,10 €

05

P/N (SKU): 3120100

Part Name: RESERVOIR

Alternative parts:

Price: 0,95 € : 0,95 €

06

P/N (SKU): 30204-122810

Part Name: NUT M12x1.25

Alternative parts:

Specification: M12x1.25

Price: 1,05 € : 1,05 €

07

P/N (SKU): 9060-050900-10000

Part Name: BALL PIN ASSY

Alternative parts:

Specification: CCVI

Price: 21,60 € : 21,60 €

08

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT 34

Alternative parts:

Specification: 34

Price: 0,55 € : 0,55 €

09

P/N (SKU): 30903-0322210

Part Name: COTTER PIN

Alternative parts:

Specification: 3.2x22

Price: 0,55 € : 0,55 €

10

P/N (SKU): 30219-122810

Part Name: NUT M12x1.25

Alternative parts:

Specification: M12x1.25

Price: 0,95 € : 0,95 €

11

P/N (SKU): 5BYA-050701

Part Name: LH STEERING KNUCKLE

Alternative parts:

Price: 60,10 € : 60,10 €

12

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Alternative parts:

Price: 41,00 € : 41,00 €

13

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Alternative parts:

Specification: 60

Price: 1,25 € : 1,25 €

14

P/N (SKU): 5BYA-050410

Part Name: FRONT LOWER SWING ARM ASSY., RH

Alternative parts:

Price: 57,10 € : 57,10 €

15

P/N (SKU): 5BYA-050801

Part Name: RH STEERING KNUCKLE

Alternative parts:

Price: 60,10 € : 60,10 €

16

P/N (SKU): 9030-050600-10000

Part Name: MAIN PIN ASSY

Alternative parts:

Specification: CCVI

Price: 20,20 € : 20,20 €

17

P/N (SKU): 5BY0-050103

Part Name: MOUNTING SHAFT, FRONT UPPER SWING ARM

Alternative parts:

Price: 5,15 € : 5,15 €

18

P/N (SKU): 5BYA-050110

Part Name: FRONT UPPER SWING ARM ASSY., LH

Alternative parts:

Price: 57,10 € : 57,10 €

19

P/N (SKU): 5BY0-050101

Part Name: MIDDLE SPACER, FRONT UPPER SWING ARM

Alternative parts:

Price: 7,35 € : 7,35 €

20

P/N (SKU): 30801-03205

Part Name: CIRCLIPS FOR SHAFT 32

Alternative parts:

Specification: 32 A-TYPE

Price: 0,55 € : 0,55 €

21

P/N (SKU): 5BYA-050310

Part Name: FRONT UPPER SWING ARM ASSY., RH

Alternative parts:

Price: 57,10 € : 57,10 €

22

P/N (SKU): 9010-060800-20000

Part Name: BALL PIN, RH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

23

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Alternative parts:

Specification: M10x1.25

Price: 0,55 € : 0,55 €

24

P/N (SKU): 9GQ0-060003

Part Name: SUPPORTER, SWAY BAR

Alternative parts:

Price: 2,20 € : 2,20 €

25

P/N (SKU): 9GQ0-060601-00001

Part Name: COVER, SWAY BAR

Alternative parts:

Price: 1,50 € : 1,50 €

26

P/N (SKU): 30006-080016810

Part Name: BOLT M8x16

Alternative parts:

Specification: M8x16

Price: 0,55 € : 0,55 €

27

P/N (SKU): 3121401

Part Name: RESERVOIR

Alternative parts:

Price: 0,95 € : 0,95 €

28

P/N (SKU): 5BYA-050610

Part Name: FRONT SWAY BAR

Alternative parts:

Price: 57,10 € : 57,10 €

29

P/N (SKU): 9010-060700-20000

Part Name: BALL PIN, LH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €
