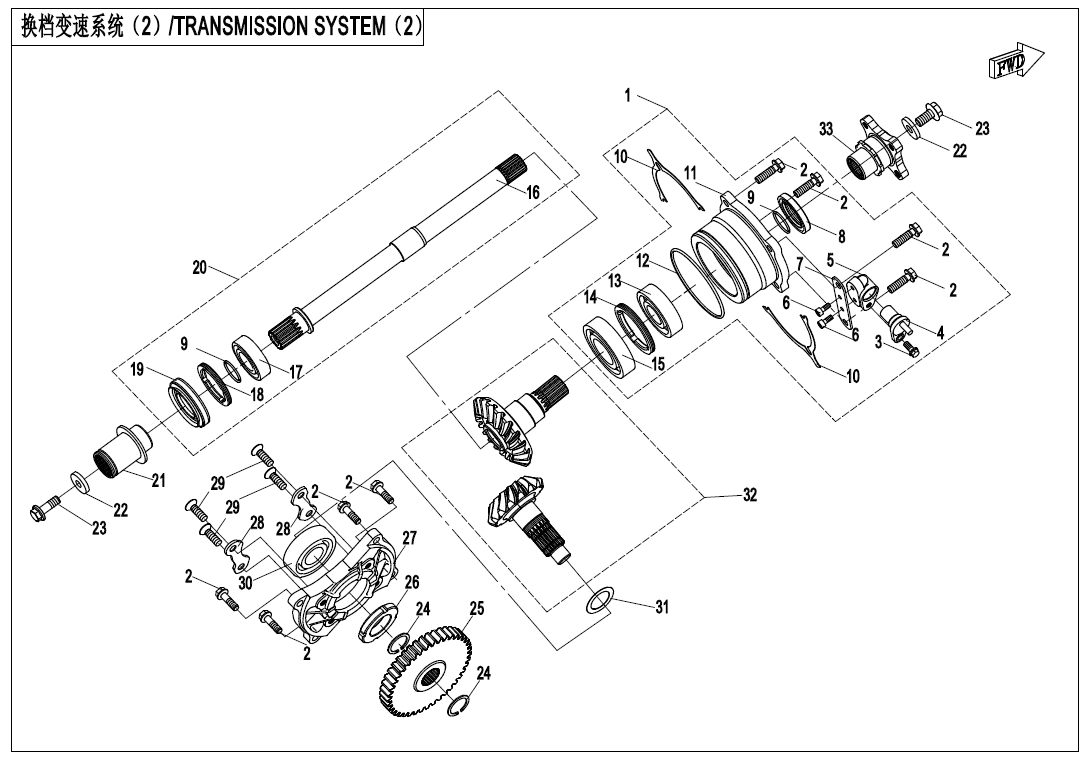

TRANSMISSION SYSTEM(2) - E06-2 | 2020, ENGINE, 2V91Y-Z10 |

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 0800-0622B0

Part Name: DRIVEN BEVEL GEAR ASSY

Effective: 2021-02-26

Alternative parts: 0800-0622B0-00001

Price: 77,20 € : 77,20 €

P/N (SKU): 0JYA-062104

Part Name: BOLT M8x28

Effective: 2021-02-26

Alternative parts:

Specification: M8x28

Price: 1,10 € : 1,10 €

P/N (SKU): 30001-060014810

Part Name: BOLT M6x14

Effective: 2021-02-26

Alternative parts:

Specification: M6x14

Price: 0,55 € : 0,55 €

P/N (SKU): 7020-150400

Part Name: SPEED SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 32,50 € : 32,50 €

P/N (SKU): 0800-062208

Part Name: SEAT, SPEED SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 4,05 € : 4,05 €

P/N (SKU): 30102-050012810

Part Name: SCREW M5x12

Effective: 2021-02-26

Alternative parts:

Specification: M5x12

Price: 0,55 € : 0,55 €

P/N (SKU): 0800-062209

Part Name: PLATE, SPEED SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 0800-062204

Part Name: OIL SEAL 35x50x7

Effective: 2021-02-26

Alternative parts:

Specification: 35x50x7

Price: 5,10 € : 5,10 €

P/N (SKU): 0800-062205

Part Name: O-SEAL RING 25x2

Effective: 2021-02-26

Alternative parts:

Specification: 25x2

Price: 1,25 € : 1,25 €

P/N (SKU): 0800-062203-0004

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.5

Effective: 2021-02-26

Alternative parts:

Specification: T=0.5

Price: 0,95 € : 0,95 €

P/N (SKU): 0800-062203-0003

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.4

Effective: 2021-02-26

Alternative parts:

Specification: T=0.4

Price: 0,95 € : 0,95 €

P/N (SKU): 0800-062203-0002

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.3

Effective: 2021-02-26

Alternative parts:

Specification: T=0.3

Price: 0,95 € : 0,95 €

P/N (SKU): 0800-062203-0001

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.2

Effective: 2021-02-26

Alternative parts:

Specification: T=0.2

Price: 0,95 € : 0,95 €

P/N (SKU): 0800-062203

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.1

Effective: 2021-02-26

Alternative parts:

Specification: T=0.1

Price: 0,95 € : 0,95 €

P/N (SKU): 0800-062203-0050

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.15

Effective: 2021-02-26

Alternative parts:

Specification: T=0.15

Price: 0,95 € : 0,95 €

P/N (SKU): 0800-062202-1000

Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR

Effective: 2021-02-26

Alternative parts: 0800-062202-10001

Price: 40,70 € : 40,70 €

P/N (SKU): 0180-062205

Part Name: O-SEAL RING 88x2.5

Effective: 2021-02-26

Alternative parts:

Specification: 88x2.5

Price: 2,95 € : 2,95 €

P/N (SKU): 30499-02501

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 6305C3@NTN

Price: 16,30 € : 16,30 €

P/N (SKU): 0800-062206

Part Name: STOPPER NUT, BEARING

Effective: 2021-02-26

Alternative parts:

Price: 2,95 € : 2,95 €

P/N (SKU): 30400-03500

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 35

Price: 8,45 € : 8,45 €

P/N (SKU): 0JWA-062301-10001

Part Name: FRONT OUTPUT SHAFT ASSY

Effective: 2021-02-26

Alternative parts:

Price: 42,90 € : 42,90 €

P/N (SKU): 30400-02501

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 25

Price: 5,15 € : 5,15 €

P/N (SKU): 0180-060008

Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT

Effective: 2021-02-26

Alternative parts:

Price: 4,40 € : 4,40 €

P/N (SKU): 0JWA-062302

Part Name: OIL SEAL 35x61x9(14)

Effective: 2021-02-26

Alternative parts:

Specification: 35x61x9

Price: 7,00 € : 7,00 €

P/N (SKU): 0JWA-062300-10001

Part Name: FRONT OUTPUT SHAFT ASSY

Effective: 2021-02-26

Alternative parts:

Price: 60,80 € : 60,80 €

P/N (SKU): 0GQ0-060100

Part Name: FRONT OUTPUT BUSHING ASSY

Effective: 2021-02-26

Alternative parts:

Price: 19,40 € : 19,40 €

P/N (SKU): 0GR0-062204

Part Name: WASHER 10x27.5x4

Effective: 2021-02-26

Alternative parts:

Specification: 10x27.5x4

Price: 2,05 € : 2,05 €

P/N (SKU): 0JWA-060002

Part Name: BOLT M10x1.25x30

Effective: 2021-02-26

Alternative parts: 0JWA-060002-00001

Specification: M10x1.25x30

Price: 1,50 € : 1,50 €

P/N (SKU): 0180-061007-0050

Part Name: CIRCLIP 25

Effective: 2021-02-26

Alternative parts:

Specification: 25

Price: 1,35 € : 1,35 €

P/N (SKU): 0800-062102

Part Name: OUTPUT DRIVEN GEAR

Effective: 2021-02-26

Alternative parts:

Price: 39,90 € : 39,90 €

P/N (SKU): 0JYA-062102

Part Name: LOCK NUT, BEVEL GEAR

Effective: 2021-02-26

Alternative parts: 0JYA-062102-00001

Price: 5,10 € : 5,10 €

P/N (SKU): 0JYA-062103

Part Name: BEARING SEAT,DRIVE BEVEL GEAR

Effective: 2021-02-26

Alternative parts:

Price: 14,30 € : 14,30 €

P/N (SKU): 0180-062104-0010

Part Name: LIMITATOR, BEARING

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 30124-080025810

Part Name: SCREW M8x25

Effective: 2021-02-26

Alternative parts:

Specification: M8x25

Price: 0,55 € : 0,55 €

P/N (SKU): 0110-041007

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 28Ã68Ã18

Price: 37,00 € : 37,00 €

P/N (SKU): 0JYA-062101-00100

Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.15

Effective: 2021-02-26

Alternative parts: 0JYV-062101-1E00-Q0-00001

Specification: T=0.15

Price: 0,55 € : 0,55 €

P/N (SKU): 0JYA-062101-00200

Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.20

Effective: 2021-02-26

Alternative parts: 0JYV-062101-1E00-Q0-00002

Specification: T=0.20

Price: 0,55 € : 0,55 €

P/N (SKU): 0JYA-062101-00300

Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.25

Effective: 2021-02-26

Alternative parts: 0JYV-062101-1E00-Q0-00003

Specification: T=0.25

Price: 0,55 € : 0,55 €

P/N (SKU): 0JYA-062101-00400

Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.30

Effective: 2021-02-26

Alternative parts: 0JYV-062101-1E00-Q0-00004

Specification: T=0.30

Price: 0,55 € : 0,55 €

P/N (SKU): 0JYA-062101-00500

Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.35

Effective: 2021-02-26

Alternative parts: 0JYV-062101-1E00-Q0-00005

Specification: T=0.35

Price: 0,55 € : 0,55 €

P/N (SKU): 0JYA-0622B0-00001

Part Name: BEVEL GEAR ASSY

Effective: 2021-02-26

Alternative parts: 0JYA-0622B0-00002

Price: 96,40 € : 96,40 €

P/N (SKU): 0JYA-060100

Part Name: COUPLER ASSY., REAR TRANSMISSION OUTPUT

Effective: 2021-02-26

Alternative parts:

Price: 35,20 € : 35,20 €
