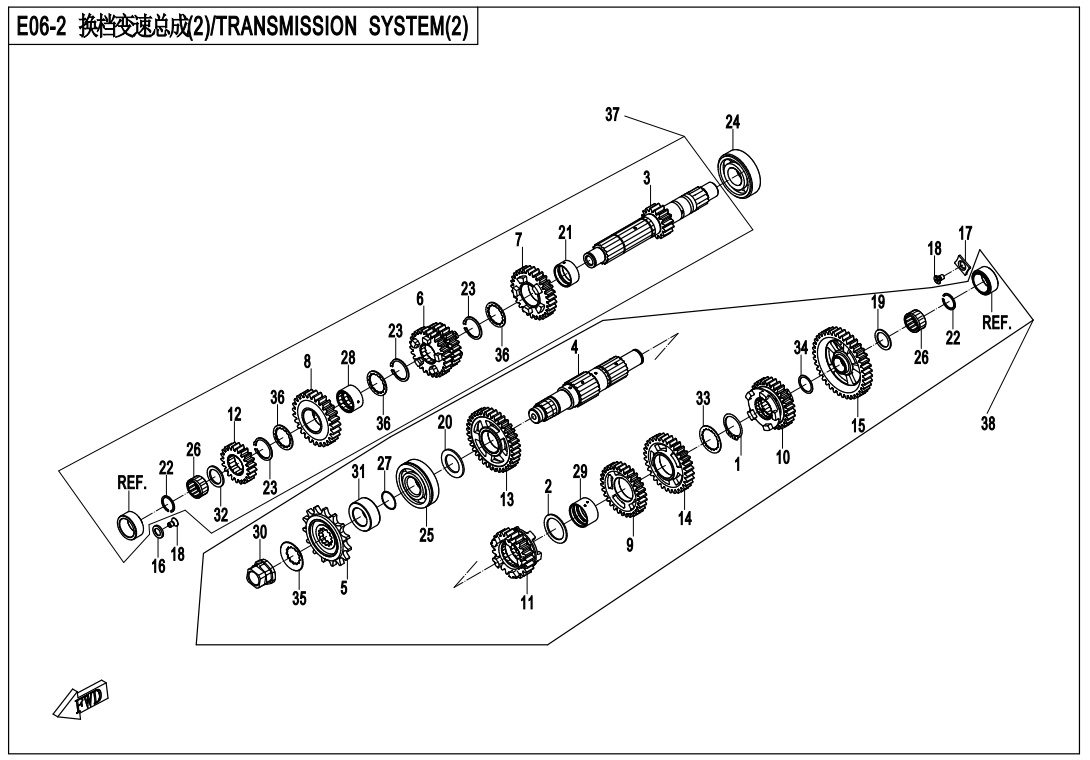

TRANSMISSION SYSTEM(2) - E06-2

No.

01
P/N (SKU): 30801-03005
Part Name: CIRCLIP30 S=1.5
Alternative parts:
Specification: 30
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0700-062009
Part Name: WASHER 30x38.5x1.5
Alternative parts:
Specification: 30x38.5x1.5
Price: 1,25 € : 1,25 €
-+
03
P/N (SKU): 0700-061001-1000
Part Name: MAIN SHAFT
Alternative parts:
Specification: 1-3 GEAR
Price: 91,50 € : 91,50 €
-+
04
P/N (SKU): 0700-062001-1000
Part Name: COUNTERSHAFT
Alternative parts:
Specification: 1-3 GEAR
Price: 79,00 € : 79,00 €
-+
05
P/N (SKU): 0700-062030
Part Name: SPROCKET, OUTPUT
Alternative parts:
Price: 26,50 € : 26,50 €
-+
06
P/N (SKU): 0700-061011-1000
Part Name: DRIVE GEAR, 3RD AND 4TH SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 1-3 GEAR
Price: 87,30 € : 87,30 €
-+
07
P/N (SKU): 0700-061007-1000
Part Name: DRIVE GEAR, 5TH SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 29
Price: 50,20 € : 50,20 €
-+
08
P/N (SKU): 0700-061013-1000
Part Name: DRIVE GEAR, 6TH SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 27
Price: 53,10 € : 53,10 €
-+
09
P/N (SKU): 0700-062008-1000
Part Name: DRIVEN GEAR, 4TH SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 30
Price: 50,60 € : 50,60 €
-+
10
P/N (SKU): 0700-062004-1000
Part Name: DRIVEN GEAR, 5TH SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 28
Price: 64,40 € : 64,40 €
-+
11
P/N (SKU): 0700-062011-1000
Part Name: DRIVEN GEAR, 6TH SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 23
Price: 53,70 € : 53,70 €
-+
12
P/N (SKU): 0700-061014-1000
Part Name: DRIVE GEAR, 2ND SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 1-3 GEAR
Price: 24,90 € : 24,90 €
-+
13
P/N (SKU): 0700-062200-1000
Part Name: DRIVEN GEAR, 2ND SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 1-3 GEAR
Price: 63,00 € : 63,00 €
-+
14
P/N (SKU): 0700-062006-1000
Part Name: DRIVEN GEAR, 3RD SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 32
Price: 51,30 € : 51,30 €
-+
15
P/N (SKU): 0700-062100-1000
Part Name: DRIVEN GEAR, 1ST SPEED
Remarks: A=1→A=3
Alternative parts:
Specification: 1-3 GEAR
Price: 54,30 € : 54,30 €
-+
16
P/N (SKU): 0700-011108
Part Name: PRESS TOOL, SHAFT SLEEVE
Alternative parts:
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 0700-066003
Part Name: PLATE 1
Alternative parts:
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 0180-014009-00001
Part Name: SCREW, PRESS PLATE
Alternative parts:
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 0700-062002
Part Name: WASHER 20.4x28x1.2
Alternative parts:
Specification: 20.4x28x1.2
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 0700-062012
Part Name: WASHER 25x39x2
Alternative parts:
Specification: 25x39x2
Price: 1,25 € : 1,25 €
-+
21
P/N (SKU): 0700-061006
Part Name: BUSHING 28x14
Alternative parts:
Price: 7,35 € : 7,35 €
-+
22
P/N (SKU): 0700-061016
Part Name: CIRCLIPS FOR SHAFT20
Alternative parts:
Specification: 20
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 0700-061009
Part Name: CIRCLIPS FOR SHAFT28
Alternative parts:
Specification: 28
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 0700-066002
Part Name: BEARING 25x62x17
Alternative parts:
Specification: 25x62x17
Price: 44,70 € : 44,70 €
-+
25
P/N (SKU): 0700-010100
Part Name: BEARING 25x62x17, COUNTERSHAFT
Alternative parts:
Specification: 25x62x17
Price: 22,40 € : 22,40 €
-+
26
P/N (SKU): 30499-02004
Part Name: NEEDLE BEARING
Alternative parts:
Specification: KMJ20x26x13.8x1S
Price: 9,90 € : 9,90 €
-+
27
P/N (SKU): 0800-062205
Part Name: O-SEAL RING 25x2
Alternative parts:
Specification: 25x2
Price: 1,25 € : 1,25 €
-+
28
P/N (SKU): 0700-061012
Part Name: BUSHING 28x14.7
Alternative parts:
Price: 8,10 € : 8,10 €
-+
29
P/N (SKU): 0700-062007
Part Name: BUSHING 29.65
Alternative parts:
Price: 8,80 € : 8,80 €
-+
30
P/N (SKU): 0700-062016
Part Name: NUT, COUNTER PULSE
Alternative parts:
Price: 2,95 € : 2,95 €
-+
31
P/N (SKU): 0700-062013-1000
Part Name: COLLAR, COUNTERSHAFT
Alternative parts:
Specification: CHANG ZHOU SU TE
Price: 6,25 € : 6,25 €
-+
32
P/N (SKU): 0180-061012
Part Name: GASKET 20.5x30x1.5
Alternative parts:
Specification: 20.5x30x1.5
Price: 1,55 € : 1,55 €
-+
33
P/N (SKU): 0700-062005
Part Name: WASHER
Alternative parts:
Price: 0,95 € : 0,95 €
-+
34
P/N (SKU): 0700-062003
Part Name: WASHER 20.4x25x0.5
Alternative parts:
Specification: 20.4x25x0.5
Price: 0,95 € : 0,95 €
-+
35
P/N (SKU): 0700-062015
Part Name: WASHER
Alternative parts:
Price: 0,55 € : 0,55 €
-+
36
P/N (SKU): 0700-061008
Part Name: WASHER
Alternative parts:
Price: 0,95 € : 0,95 €
-+
37
P/N (SKU): 0700-061000-10000
Part Name: MAIN SHAFT ASSY
Alternative parts:
Price: 284,90 € : 284,90 €
-+
38
P/N (SKU): 0700-062000-10000
Part Name: COUNTERSHAFT
Alternative parts:
Price: 415,50 € : 415,50 €
-+
38
P/N (SKU): 0700-062000-1000
Part Name: COUNTERSHAFT
Alternative parts:
Price: 415,20 € : 415,20 €
-+
