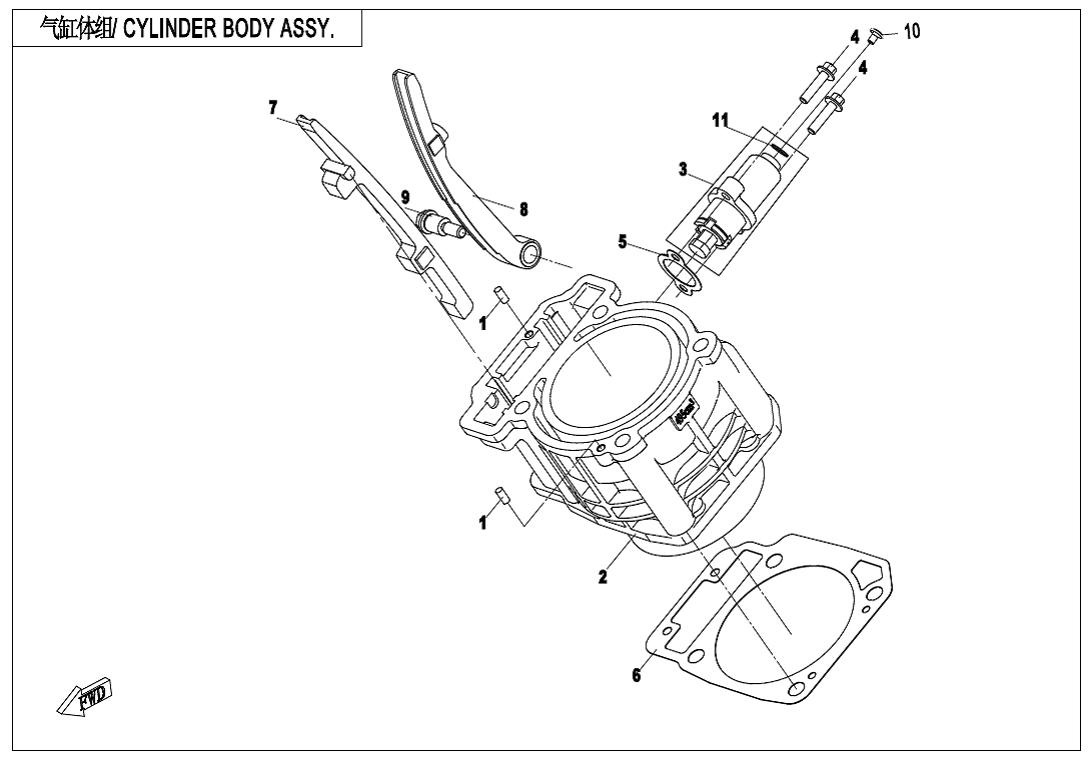

CYLINDER BODY ASSY. - E02-3

No.

01
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Effective: 2021-02-26
Alternative parts:
Specification: P5x11.8
Price: 1,05 € : 1,05 €
-+
02
P/N (SKU): 0GR0-023100-00030
Part Name: CYLINDER BODY ASSY
Effective: 2021-02-26
Remarks: Ⅰ
Alternative parts: 0GR0-023100-20010
Specification: 1 GROUP
Price: 76,90 € : 76,90 €
02
P/N (SKU): 0GR0-023100-00040
Part Name: CYLINDER BODY ASSY
Effective: 2021-02-26
Remarks: Ⅱ
Alternative parts: 0GR0-023100-20020
Specification: 2 GROUP
Price: 76,90 € : 76,90 €
03
P/N (SKU): 0GR0-023400
Part Name: TENSIONER
Effective: 2021-02-26
Alternative parts: 0GR0-023400-00001
Price: 16,80 € : 16,80 €
03
P/N (SKU): 0GR0-023400-00001
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 15,10 € : 15,10 €
-+
04
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 0180-023003
Part Name: GASKET, TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 1,05 € : 1,05 €
-+
06
P/N (SKU): 0GR0-023001
Part Name: GASKET, CYLINDER BODY
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
07
P/N (SKU): 0GR0-023300
Part Name: UPPERGUIDE, CHAIN
Effective: 2021-02-26
Alternative parts:
Price: 9,15 € : 9,15 €
-+
08
P/N (SKU): 0GR0-023200
Part Name: TENSION PLATE
Effective: 2021-02-26
Alternative parts:
Price: 14,30 € : 14,30 €
-+
09
P/N (SKU): 0700-024008-00001
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
10
P/N (SKU): 0040-014001
Part Name: CROSS SCREW
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0JYA-023001
Part Name: FLANGE BOLT M6x6
Effective: 2021-02-26
Alternative parts: 0JYA-023001-00001
Specification: M6x6
Price: 0,55 € : 0,55 €
11
P/N (SKU): 0180-023201
Part Name: O-RING 8.2x1.9
Effective: 2021-02-26
Alternative parts: 0700-011202
Price: 0,55 € : 0,55 €
