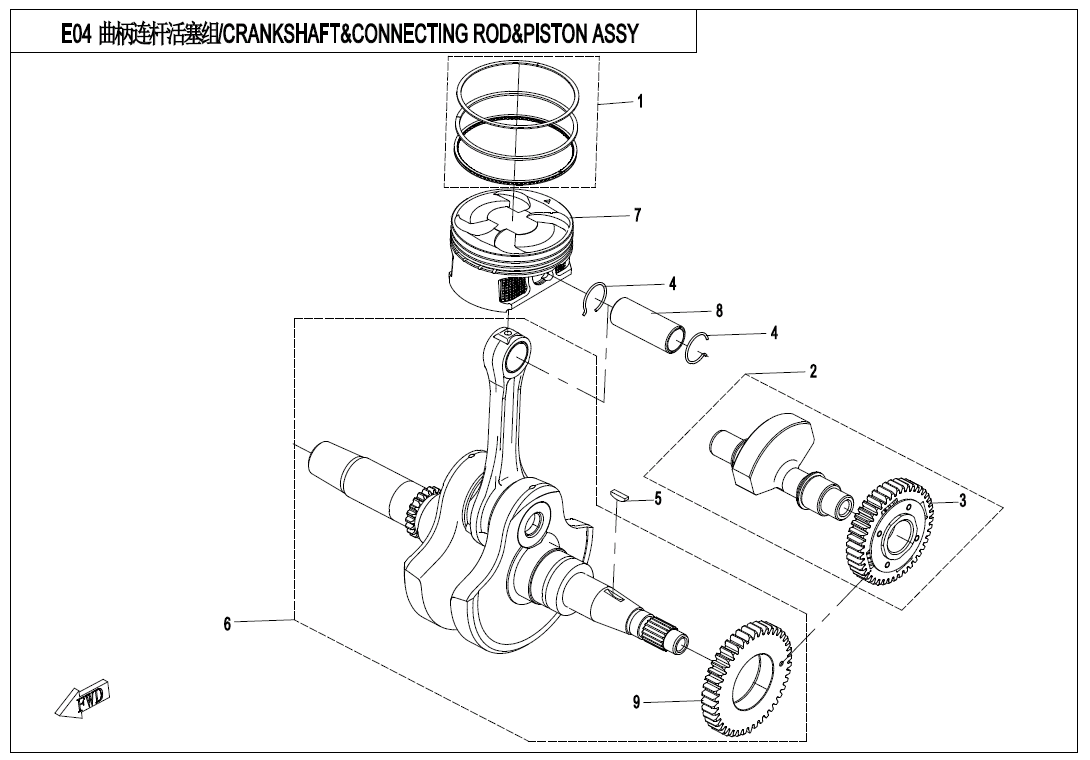

CRANKSHAFT/CONNECTING ROD/PISTON ASSY - E04

No.

01
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUPPLIERS:DY
Price: 43,80 € : 43,80 €
-+
01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
02
P/N (SKU): 0GR0-160000-00020
Part Name: BALANCE SHAFT ASSY
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH A GROUP 0GR0-041000-00010
Alternative parts: 0GR0-160000-00021
Specification: GROUP B
Price: 112,30 € : 112,30 €
-+
02
P/N (SKU): 0GR0-160000-00010
Part Name: BALANCE SHAFT ASSY
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH B GROUP 0GR0-041000-00020
Alternative parts: 0GR0-160000-00011
Specification: GROUP A
Price: 112,30 € : 112,30 €
02
P/N (SKU): 0GR0-160000-00011
Part Name: BALANCER SHAFT ASSY
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH 0GR0-041000-10021
Alternative parts:
Specification: MARK A_ MATCHED WITH MARK B CONNECTING ROD ASSY
Price: 112,30 € : 112,30 €
-+
02
P/N (SKU): 0GR0-160000-00021
Part Name: BALANCER SHAFT ASSY
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH 0GR0-041000-10011
Alternative parts:
Specification: MARK B_ MATCHED WITH MARK A CONNECTING ROD ASSY
Price: 112,30 € : 112,30 €
-+
03
P/N (SKU): 0700-161000-00020
Part Name: GEAR, BALANCE SHAFT
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH A GROUP 0700-041101-00010
Alternative parts:
Specification: GROUP B
Price: 71,70 € : 71,70 €
-+
03
P/N (SKU): 0700-161000-00010
Part Name: GEAR, BALANCE SHAFT
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH B GROUP 0700-041101-00020
Alternative parts:
Specification: GROUP A
Price: 71,70 € : 71,70 €
-+
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
06
P/N (SKU): 0GR0-041000-00020
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH A GROUP 0GR0-160000-00010
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 272,40 € : 272,40 €
-+
06
P/N (SKU): 0GR0-041000-00010
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH B GROUP 0GR0-160000-00020
Alternative parts: 0GR0-041000-10013
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 272,40 € : 272,40 €
06
P/N (SKU): 0GR0-041000-10010
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH B GROUP 0GR0-160000-00020
Alternative parts: 0GR0-041000-10013
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 272,40 € : 272,40 €
06
P/N (SKU): 0GR0-041000-10020
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH A GROUP 0GR0-160000-00010
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 288,00 € : 288,00 €
-+
06
P/N (SKU): 0GR0-041000-10011
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH B GROUP 0GR0-160000-00020
Alternative parts: 0GR0-041000-10013
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 284,00 € : 284,00 €
06
P/N (SKU): 0GR0-041000-10021
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH A GROUP 0GR0-160000-00010
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 288,00 € : 288,00 €
-+
07
P/N (SKU): 0800-040001-20020
Part Name: PISTON
Effective: 2021-02-26
Remarks: Ⅱ
Alternative parts: 0800-040001-20022
Specification: GROUP 2
Price: 58,00 € : 58,00 €
07
P/N (SKU): 0800-040001-20010
Part Name: PISTON
Effective: 2021-02-26
Remarks: Ⅰ
Alternative parts: 0800-040001-20012
Specification: GROUP 1
Price: 58,00 € : 58,00 €
07
P/N (SKU): 0800-040001-20011
Part Name: PISTON
Effective: 2021-02-26
Remarks: Ⅰ
Alternative parts: 0800-040001-20012
Specification: GROUP 1
Price: 58,00 € : 58,00 €
07
P/N (SKU): 0800-040001-20021
Part Name: PISTON
Effective: 2021-02-26
Remarks: Ⅱ
Alternative parts: 0800-040001-20022
Specification: GROUP 2
Price: 58,00 € : 58,00 €
-+
08
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2021-02-26
Alternative parts: 0800-040002-00001
Price: 8,05 € : 8,05 €
-+
09
P/N (SKU): 0700-041101-00020
Part Name: DRIVING GEAR, BALANCE SHAFT
Effective: 2021-02-26
Remarks: B GROUP, MATCHED WITH A GROUP 0700-161000-00010
Alternative parts:
Specification: GROUP B
Price: 42,50 € : 42,50 €
-+
09
P/N (SKU): 0700-041101-00010
Part Name: DRIVE GEAR, BALANCE SHAFT
Effective: 2021-02-26
Remarks: A GROUP, MATCHED WITH B GROUP 0700-161000-00020
Alternative parts: 0700-041101-10010
Specification: GROUP A
Price: 42,50 € : 42,50 €
