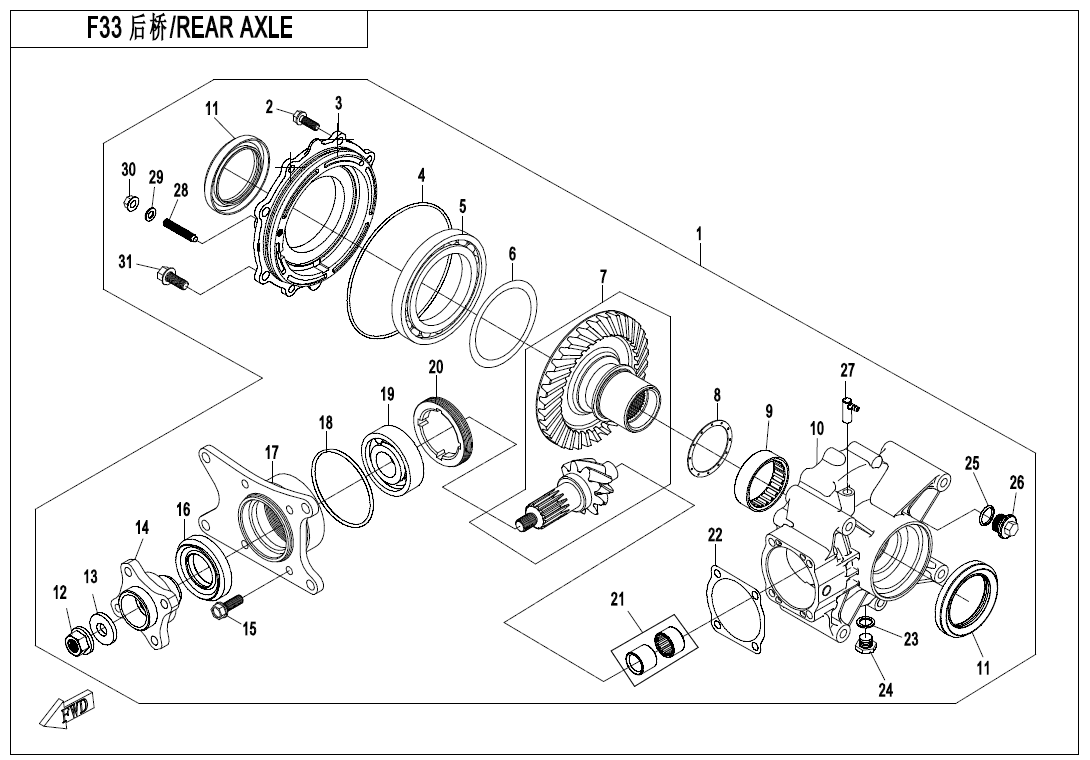

REAR AXLE - F33 | 2020, ATV, CF400ATR-2S

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): Q520-330000

Part Name: Q520 REAR GEAR CASE

Alternative parts: Q520-330000-00001

Price: 437,70 € : 437,70 €

P/N (SKU): 30008-080025810

Part Name: BOLT M8x25

Alternative parts:

Specification: M8x25

Price: 0,55 € : 0,55 €

P/N (SKU): 0180-334001-0080

Part Name: RH COVER, REAR GEAR CASE CASE

Alternative parts:

Price: 17,30 € : 17,30 €

P/N (SKU): 0180-334002

Part Name: O-SEAL RING 151x3

Alternative parts:

Specification: 151x3

Price: 3,05 € : 3,05 €

P/N (SKU): 30499-08500

Part Name: BEARING

Alternative parts:

Specification: 16017

Price: 51,40 € : 51,40 €

P/N (SKU): 0180-330002-0002

Part Name: ADJUST GASKET 2

Alternative parts:

Specification: ADJUSTING WASHER 100x86x0.4

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330002

Part Name: ADJUST GASKET 2

Alternative parts:

Specification: ADJUSTING WASHER 100x86x0.2

Price: 1,25 € : 1,25 €

P/N (SKU): 0180-330002-0001

Part Name: ADJUST GASKET 2

Alternative parts:

Specification: ADJUSTING WASHER 100x86x0.3

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330010

Part Name: BEVEL GEAR ASSY REAR ALXE

Alternative parts:

Specification: EURO

Price: 226,10 € : 226,10 €

P/N (SKU): 0180-330001-0002

Part Name: ADJUST GASKET 1

Alternative parts:

Specification: ADJUSTING WASHER(1)1.4

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330001-0001

Part Name: ADJUST GASKET 1

Alternative parts:

Specification: ADJUSTING WASHER(1)1.2

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330001-0004

Part Name: ADJUST GASKET 1

Alternative parts:

Specification: ADJUSTING WASHER(1)1.8

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330001-0003

Part Name: ADJUST GASKET 1

Alternative parts:

Specification: ADJUSTING WASHER(1)1.6

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330001

Part Name: ADJUST GASKET 1

Alternative parts:

Specification: ADJUSTING WASHER(1)1.0

Price: 1,50 € : 1,50 €

P/N (SKU): 30404-05500

Part Name: NEEDLE BEARING

Alternative parts:

Specification: 55BTM6720A

Price: 14,80 € : 14,80 €

P/N (SKU): Q520-332001-00001

Part Name: CASE, REAR GEAR CASE

Alternative parts: Q520-332001-00002

Price: 61,40 € : 61,40 €

P/N (SKU): 0180-334003

Part Name: OIL SEAL SD465x90x9NS

Alternative parts:

Specification: SD465x90x9NS

Price: 15,00 € : 15,00 €

P/N (SKU): 0180-331009-0020

Part Name: NUT M12x1.25

Alternative parts:

Specification: M12x1.25

Price: 0,95 € : 0,95 €

P/N (SKU): 0180-331008-0050

Part Name: GASKET 12.5x30x4

Alternative parts:

Specification: 12.5x30x4

Price: 0,95 € : 0,95 €

P/N (SKU): Q520-331006

Part Name: COUPLER, REAR GEAR CASE

Alternative parts:

Price: 37,70 € : 37,70 €

P/N (SKU): 30008-080035810

Part Name: BOLT SET M8x35

Alternative parts:

Specification: M8x35

Price: 0,55 € : 0,55 €

P/N (SKU): 0180-331007

Part Name: OIL SEAL 35x61x9(14)

Alternative parts:

Specification: 35x61x9(14)

Price: 8,15 € : 8,15 €

P/N (SKU): 0180-331005

Part Name: BEVEL GEAR BEARING HOUSING

Alternative parts:

Price: 26,50 € : 26,50 €

P/N (SKU): 0180-331004

Part Name: O-SEAL RING 64.5x3

Alternative parts:

Specification: 64.5x3

Price: 0,95 € : 0,95 €

P/N (SKU): 30499-02501

Part Name: BEARING

Alternative parts:

Specification: 25

Price: 16,30 € : 16,30 €

P/N (SKU): 0180-331003

Part Name: BEARING RETAINER

Alternative parts:

Price: 6,25 € : 6,25 €

P/N (SKU): 30403-01700

Part Name: NEEDLE BEARING

Alternative parts:

Specification: NA5903(17x30x18)

Price: 16,20 € : 16,20 €

P/N (SKU): 0180-330003

Part Name: ADJUST GASKET

Alternative parts:

Specification: ADJUST GASKET 0.5

Price: 1,25 € : 1,25 €

P/N (SKU): 0180-330003-0002

Part Name: ADJUST GASKET

Alternative parts:

Specification: ADJUST GASKET 0.4

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-330003-0001

Part Name: ADJUST GASKET

Alternative parts:

Specification: ADJUST GASKET 0.6

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-011006

Part Name: GASKET 14

Alternative parts:

Specification: 14

Price: 1,05 € : 1,05 €

P/N (SKU): 0180-332100

Part Name: OIL DRAIN BOLT M14x1.25x12, MAGNETIC

Alternative parts:

Specification: M14x1.25x12

Price: 5,00 € : 5,00 €

P/N (SKU): 0180-332004

Part Name: O-SEAL RING 19x2.5

Alternative parts:

Specification: 19x2.5

Price: 0,55 € : 0,55 €

P/N (SKU): 0180-332003-0010

Part Name: BOLT M20x1.5x12

Alternative parts:

Specification: M20x1.5x12

Price: 1,50 € : 1,50 €

P/N (SKU): 0180-332006

Part Name: PIPE JOINT

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 0180-334005-0010

Part Name: INNER HEX SCREW M8x45

Alternative parts:

Specification: M8x45

Price: 0,95 € : 0,95 €

P/N (SKU): 0180-334004

Part Name: GASKET 8.2x15x1.5

Alternative parts:

Specification: 8.2x15x1.5

Price: 0,95 € : 0,95 €

P/N (SKU): 0180-334006-0010

Part Name: NUT M8

Alternative parts:

Specification: M8

Price: 0,55 € : 0,55 €

P/N (SKU): 0180-330004-0010

Part Name: BOLT M10x1.25x25

Alternative parts:

Specification: M10x1.25x25

Price: 1,55 € : 1,55 €
