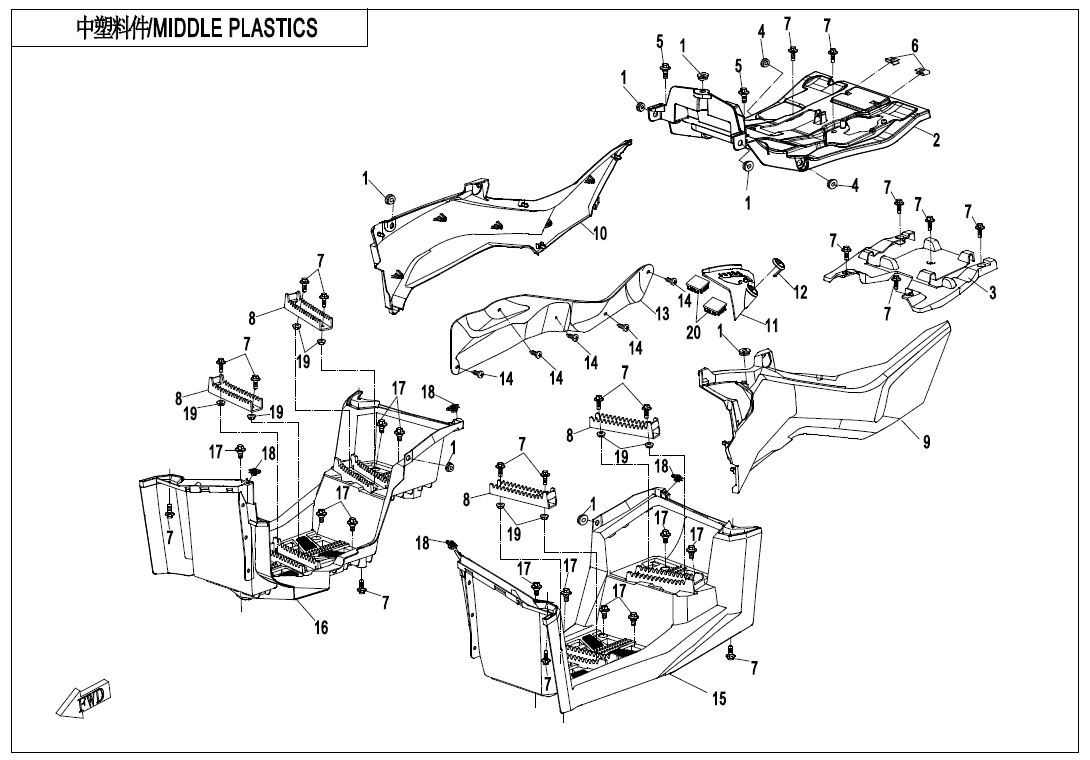

MIDDLE PLASTICS-CRYSTAL ORANGE - F04-3-C-V1 | 2019, ATV,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5BY0-040010

Part Name: RUBBER SLEEVE

Alternative parts:

Price: 0,95 € : 0,95 €

02

P/N (SKU): 9AWA-042011

Part Name: HEAT INSULATION, SEAT

Alternative parts:

Price: 34,10 € : 34,10 €

03

P/N (SKU): 9AWA-042012-10000

Part Name: REAR SEAT BASE

Alternative parts:

Price: 22,70 € : 22,70 €

03

P/N (SKU): 9AWA-042012-20000

Part Name: REAR SEAT BASE

Alternative parts:

Price: 26,00 € : 26,00 €

04

P/N (SKU): 7020-040209

Part Name: FIXING RUBBER BUSHING

Alternative parts:

Price: 3,30 € : 3,30 €

05

P/N (SKU): 8010-000005

Part Name: BOLT M6x17

Alternative parts: 8010-000005-1000

Specification: M6x17

Price: 0,55 € : 0,55 €

06

P/N (SKU): 8010-000002

Part Name: CLAMP ST4.2

Alternative parts:

Specification: ST4.2

Price: 0,55 € : 0,55 €

07

P/N (SKU): 30006-060016810

Part Name: BOLT

Alternative parts:

Specification: M6x16

Price: 0,55 € : 0,55 €

08

P/N (SKU): 9CR6-042040-20000

Part Name: ANTIBASE ASSY

Alternative parts:

Price: 17,30 € : 17,30 €

09

P/N (SKU): 9AWA-042021-0Y600

Part Name: SIDE COVER, LH

Alternative parts: 9AWA-042021-1Y600

Specification: CRYSTAL ORANGE

Price: 46,50 € : 46,50 €

10

P/N (SKU): 9AWA-042022-0Y600

Part Name: SIDE COVER, RH

Alternative parts:

Specification: CRYSTAL ORANGE

Price: 42,90 € : 42,90 €

11

P/N (SKU): 9AWA-042023-0Y600

Part Name: DECO COVER, GEARSHIFT

Alternative parts: 9AWA-042023-2Y600

Specification: CRYSTAL ORANGE

Price: 12,20 € : 12,20 €

12

P/N (SKU): 9AWA-042026

Part Name: CAP, LOCK

Alternative parts:

Price: 0,95 € : 0,95 €

13

P/N (SKU): 9AWA-042027

Part Name: HEAT INSULATOR,RH SIDE COVER

Alternative parts:

Price: 25,70 € : 25,70 €

14

P/N (SKU): 30110-420160010

Part Name: SELF-TAPPING SCREW

Alternative parts:

Specification: ST4.2x16

Price: 0,95 € : 0,95 €

15

P/N (SKU): 9AWA-042031

Part Name: FOOTREST PEDAL, LH

Alternative parts:

Price: 76,30 € : 76,30 €

16

P/N (SKU): 9AWA-042032

Part Name: FOOTREST PEDAL, RH

Alternative parts:

Price: 76,30 € : 76,30 €

17

P/N (SKU): 8010-000004

Part Name: BOLT M6x14

Alternative parts:

Specification: M6x14

Price: 0,55 € : 0,55 €

18

P/N (SKU): 8030-040800

Part Name: NUT CLIP M6

Alternative parts: 8030-040800-00001

Specification: M6

Price: 0,55 € : 0,55 €

19

P/N (SKU): 30204-060810

Part Name: NUT

Alternative parts:

Specification: M6

Price: 1,05 € : 1,05 €

20

P/N (SKU): 6NT1-041510

Part Name: BUCKLE ASSY

Alternative parts:

Price: 2,05 € : 2,05 €
