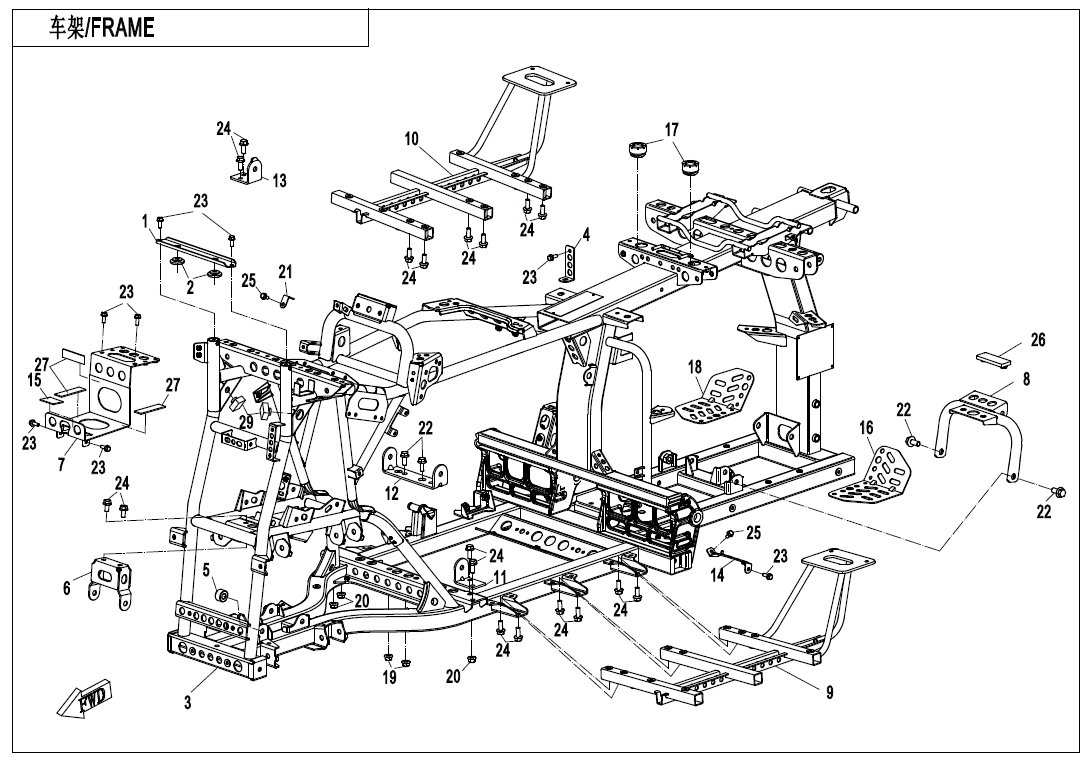

FRAME - F03-V2

FRAME - F03-V2

No.

01
P/N (SKU): 7020-038011
Part Name: PLATE, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
02
P/N (SKU): 9010-030005
Part Name: RUBBER WASHER, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 9AWA-031000-50000
Part Name: FRAME ASSEMBLY
Effective: 2021-02-26
Alternative parts: 9AWA-031000-A0000+9AWA-030040+9AWA-030060+9AWA-030201
Price: 1 249,30 € : 1 249,30 €
04
P/N (SKU): 9AWA-030001
Part Name: BRACKET, REAR HEAT INSULATION
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
05
P/N (SKU): 9AWA-030002
Part Name: BUSHING, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 9AWA-037000
Part Name: UPPER BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 20,20 € : 20,20 €
-+
07
P/N (SKU): 9AWA-039100
Part Name: BRACKET, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 15,40 € : 15,40 €
-+
08
P/N (SKU): 9AWA-033000-10000
Part Name: BRACKET, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 15,80 € : 15,80 €
-+
09
P/N (SKU): 9AWA-035000
Part Name: BRACKET ASSY, LH FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 61,50 € : 61,50 €
-+
10
P/N (SKU): 9AWA-034000
Part Name: BRACKET ASSY, RH FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 61,50 € : 61,50 €
-+
11
P/N (SKU): 9AWA-030003
Part Name: FRONT LH MOUNT PLATE, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
12
P/N (SKU): 9AWA-030004
Part Name: FRONT MOUNT BRACKET, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 9,90 € : 9,90 €
-+
13
P/N (SKU): 9AWA-030005
Part Name: FRONT RH MOUNT PLATE, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
14
P/N (SKU): 9AWA-038000
Part Name: BRACKET, PARKING CABLE
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
15
P/N (SKU): 9AWA-030120
Part Name: HEAD GUARD BRACKET
Effective: 2021-02-26
Alternative parts: 9AWA-030120-10000
Price: 15,40 € : 15,40 €
16
P/N (SKU): 9AWA-030006
Part Name: LH PANEL, REAR CV DRIVE SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 25,30 € : 25,30 €
-+
17
P/N (SKU): 7020-130001
Part Name: RUBBER SLEEVE, SEAT
Effective: 2021-02-26
Alternative parts:
Price: 1,55 € : 1,55 €
-+
18
P/N (SKU): 9AWA-030007
Part Name: RH PANEL, REAR CV DRIVE SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 25,30 € : 25,30 €
-+
19
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
21
P/N (SKU): 7020-230003
Part Name: BRACKET, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x20
Price: 0,95 € : 0,95 €
-+
23
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Effective: 2021-02-26
Alternative parts:
Specification: M8x20
Price: 0,85 € : 0,85 €
-+
25
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 9AWA-120001
Part Name: DAMPER, FUEL TANK
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
27
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
28
P/N (SKU): 4020-040402
Part Name: SPONGE, FRONT TOP COVER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 5190-001003
Part Name: RUBBER CUSHION, MAIN STAND
Effective: 2021-02-26
Alternative parts:
Price: 1,05 € : 1,05 €
-+
