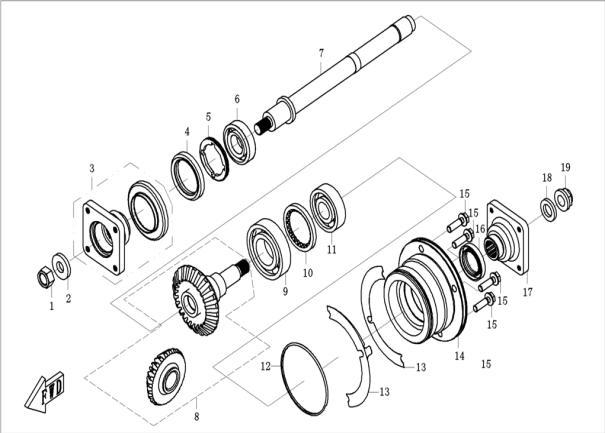

TRANSMISSION â¡ - E20 | 2018, ENGINE, CF188 | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 30209-140820

Part Name: NUT M14x1.5

Effective: 2021-02-26

Alternative parts:

Specification: M14x1.5

Price: 9,70 € : 9,70 €

02

P/N (SKU): 0180-060005-0050

Part Name: WASHER

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

03

P/N (SKU): 0180-060100-0050

Part Name: COUPLER, FRONT OUTPUT

Effective: 2021-02-26

Alternative parts:

Price: 37,60 € : 37,60 €

04

P/N (SKU): 0180-060007

Part Name: OIL SEAL 44x60x6.7

Effective: 2021-02-26

Alternative parts:

Specification: 44x60x6.7

Price: 8,15 € : 8,15 €

05

P/N (SKU): 0180-060008

Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT

Effective: 2021-02-26

Alternative parts:

Price: 4,40 € : 4,40 €

06

P/N (SKU): 30400-02501

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 25

Price: 5,15 € : 5,15 €

07

P/N (SKU): 0180-062301

Part Name: FRONT OUTPUT SHAFT

Effective: 2021-02-26

Alternative parts:

Price: 35,20 € : 35,20 €

08

P/N (SKU): 0180-062206

Part Name: DRIVEN BEVEL GEAR

Effective: 2021-02-26

Alternative parts: 0180-0622A0-00001

Price: 109,30 € : 109,30 €

08

P/N (SKU): 0180-0622A0

Part Name: BEVEL GEAR ASSY

Effective: 2021-02-26

Alternative parts: 0180-0622A0-00001

Price: 80,90 € : 80,90 €

09

P/N (SKU): 30400-03500

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 35

Price: 8,45 € : 8,45 €

10

P/N (SKU): 0180-062204

Part Name: STOPPER NUT, BEARING

Effective: 2021-02-26

Alternative parts:

Price: 4,40 € : 4,40 €

11

P/N (SKU): 30400-02200

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Price: 5,90 € : 5,90 €

12

P/N (SKU): 0180-062205

Part Name: O-SEAL RING 88x2.5

Effective: 2021-02-26

Alternative parts:

Specification: 88x2.5

Price: 2,95 € : 2,95 €

13

P/N (SKU): 0180-062202

Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR

Effective: 2021-02-26

Alternative parts:

Specification: T=0.15

Price: 0,95 € : 0,95 €

14

P/N (SKU): 0180-062201

Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR

Effective: 2021-02-26

Alternative parts:

Price: 18,70 € : 18,70 €

15

P/N (SKU): 0JYA-062104

Part Name: BOLT M8x28

Effective: 2021-02-26

Alternative parts:

Specification: M8x28

Price: 1,10 € : 1,10 €

15

P/N (SKU): 0110-060011-0030

Part Name: BOLT M8x28

Effective: 2021-02-26

Remarks: Can not be replaced by 0JYA-062104

Alternative parts: 0110-060011-0010

Specification: M8x28

Price: 0,55 € : 0,55 €

16

P/N (SKU): 0180-062203

Part Name: OIL SEAL B6SD30x46x7

Effective: 2021-02-26

Alternative parts:

Specification: SD30x46x7

Price: 3,30 € : 3,30 €

17

P/N (SKU): 0180-060006-0050

Part Name: COUPLER, REAR TRANSMISSION OUTPUT

Effective: 2021-02-26

Alternative parts:

Price: 36,50 € : 36,50 €

18

P/N (SKU): 0180-060001-0050

Part Name: WASHER, REAR OUTPUT SHAFT NUT

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

19

P/N (SKU): 0180-060002-0010

Part Name: NUT M16x1.5x14, REAR OUTPUT SHAFT

Effective: 2021-02-26

Alternative parts:

Specification: M16x1.5x14

Price: 3,30 € : 3,30 €
