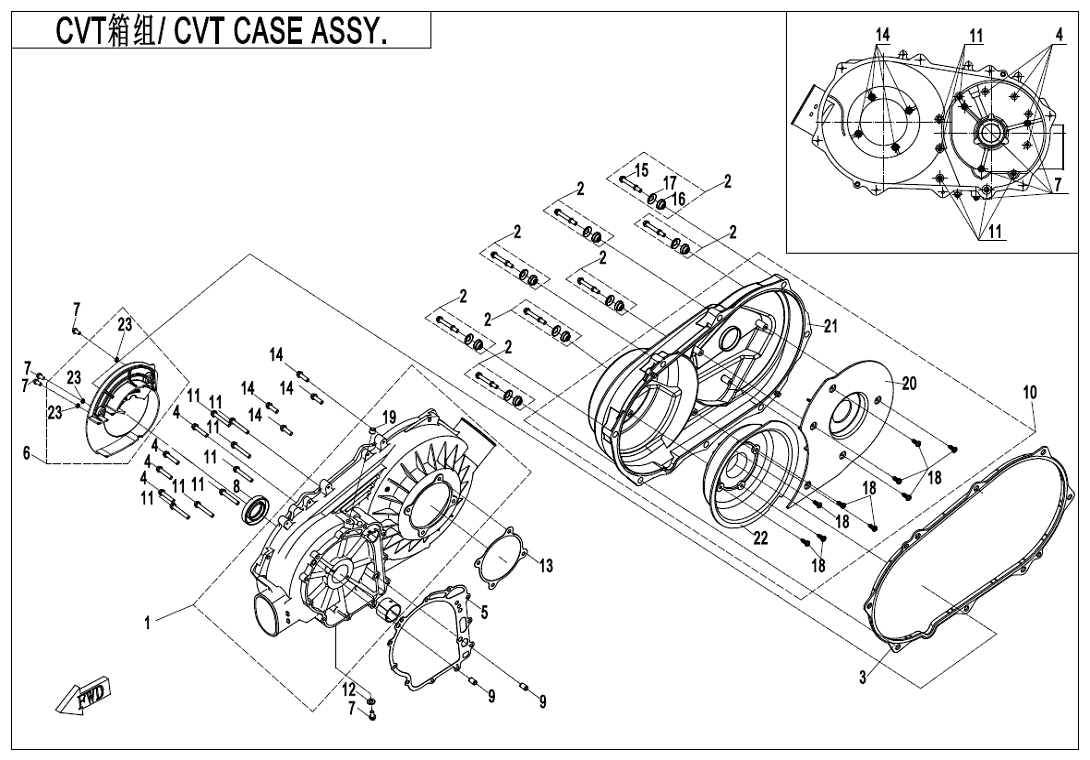

CVT HOUSE - E01-3-V2 | 2018, ENGINE, 191R-Z550 | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0GR0-013100-10000

Part Name: CVT CASE ASSY

Effective: 2021-02-26

Alternative parts: 0GR0-013100-10001

Price: 146,40 € : 146,40 €

02

P/N (SKU): 0800-021100

Part Name: CYLINDER HEAD COVER BOLT ASSY

Effective: 2021-02-26

Alternative parts:

Price: 7,05 € : 7,05 €

03

P/N (SKU): 0GR0-013003

Part Name: SEAL RING, CVT COVER

Effective: 2021-02-26

Alternative parts:

Price: 15,20 € : 15,20 €

04

P/N (SKU): 0010-060012-0010

Part Name: BOLT M6x30

Effective: 2021-02-26

Alternative parts:

Specification: M6x30

Price: 0,55 € : 0,55 €

05

P/N (SKU): 0GR0-013001-10000

Part Name: PAPER GASKET, CVT CASE

Effective: 2021-02-26

Alternative parts: 0GR0-013001-20000

Price: 2,60 € : 2,60 €

06

P/N (SKU): 0GR0-013010

Part Name: CVT WIND GUARD ASSY

Effective: 2021-02-26

Alternative parts:

Price: 11,40 € : 11,40 €

07

P/N (SKU): 0010-021019-0010

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts:

Specification: M6x12

Price: 0,55 € : 0,55 €

08

P/N (SKU): 0JY0-013103

Part Name: OIL SEAL 32X55X10

Effective: 2021-02-26

Alternative parts:

Specification: 32X55X10

Price: 4,60 € : 4,60 €

09

P/N (SKU): 0010-080008

Part Name: DOWEL PIN

Effective: 2021-02-26

Alternative parts:

Specification: 8X14

Price: 1,05 € : 1,05 €

10

P/N (SKU): 0GR0-013300-20000

Part Name: COVER, CVT CASE

Effective: 2021-02-26

Alternative parts:

Price: 77,20 € : 77,20 €

11

P/N (SKU): 0010-013009-0010

Part Name: BOLT M6x40

Effective: 2021-02-26

Alternative parts:

Specification: M6x40

Price: 0,55 € : 0,55 €

12

P/N (SKU): 0010-060009

Part Name: WASHER 6

Effective: 2021-02-26

Alternative parts:

Specification: 6

Price: 0,95 € : 0,95 €

13

P/N (SKU): 0800-012002

Part Name: GASKET(2), CVT CASE

Effective: 2021-02-26

Alternative parts:

Price: 3,30 € : 3,30 €

14

P/N (SKU): 0010-023010-0010

Part Name: BOLT M6x20

Effective: 2021-02-26

Alternative parts:

Specification: M6x20

Price: 0,55 € : 0,55 €

15

P/N (SKU): 0800-021101-1000

Part Name: CYLINDER HEAD COVER BOLT

Effective: 2021-02-26

Alternative parts: 0800-021101-10001

Price: 3,05 € : 3,05 €

16

P/N (SKU): 0800-021102

Part Name: RUBBER WASHER

Effective: 2021-02-26

Alternative parts: 0800-021102-10000

Price: 0,55 € : 0,55 €

17

P/N (SKU): 0800-021103

Part Name: CAP, RUBBER WASHER

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

18

P/N (SKU): 30110-480160010

Part Name: SELF-TAPPING SCREW

Effective: 2021-02-26

Alternative parts:

Specification: ST4.8Ã16

Price: 0,55 € : 0,55 €

19

P/N (SKU): 01A0-012010

Part Name: SCREW

Effective: 2021-02-26

Alternative parts: 01A0-012010-00001

Price: 0,55 € : 0,55 €

20

P/N (SKU): 0GR0-013302

Part Name: REAR HEAT INSULATION COVER

Effective: 2021-02-26

Alternative parts:

Price: 13,20 € : 13,20 €

21

P/N (SKU): 0GR0-013002-20000

Part Name: CVT COVER

Effective: 2021-02-26

Alternative parts: 0GR0-013002-20001

Price: 54,00 € : 54,00 €

22

P/N (SKU): 0GR0-013301-10000

Part Name: FRONT HEAT INSULATION COVER

Effective: 2021-02-26

Alternative parts: 0GR0-013301-20000

Price: 9,55 € : 9,55 €

23

P/N (SKU): 0GR0-013012

Part Name: BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €
