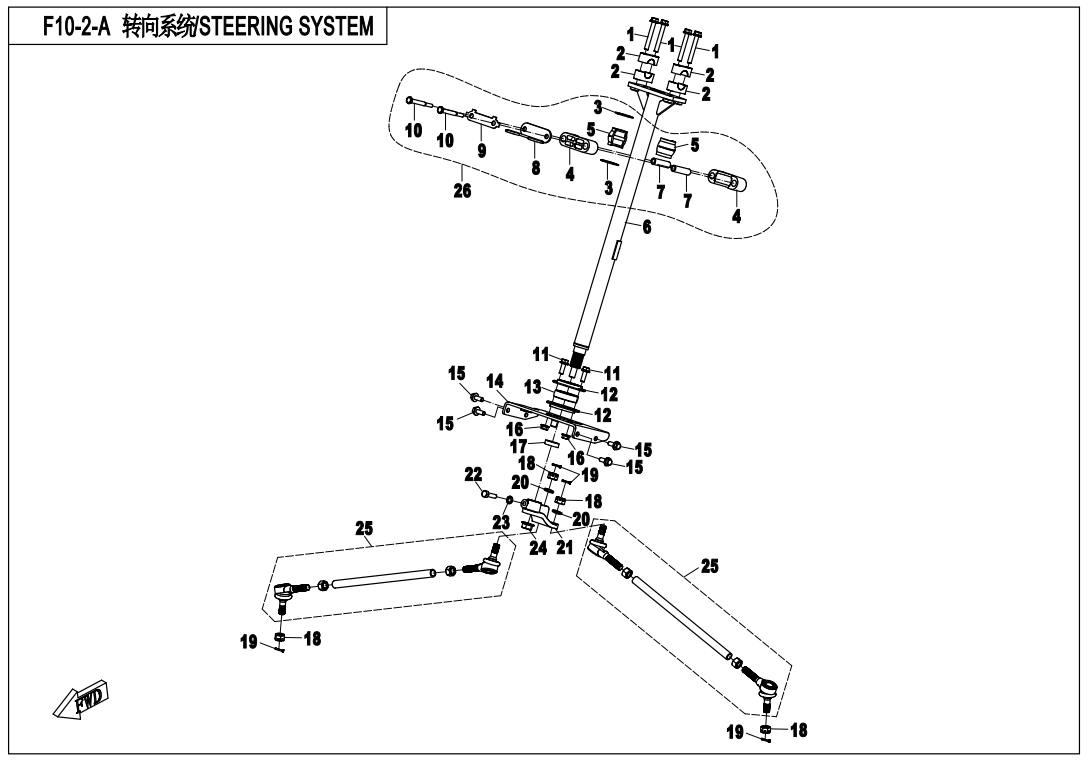

STEERING SYSTEM - F10-2-A

No.

01
P/N (SKU): 30006-080055810
Part Name: BOLT M8x55
Effective: 2021-02-26
Alternative parts:
Specification: M8x55
Price: 0,95 € : 0,95 €
-+
02
P/N (SKU): 9010-030006
Part Name: ALUM. COVER, HANDLEBAR
Effective: 2021-02-26
Alternative parts: 9DSV-100001-6K00
Price: 8,15 € : 8,15 €
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 32x1.8
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
05
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 6,25 € : 6,25 €
-+
06
P/N (SKU): 9CR6-102100-00001
Part Name: STEERING STEM ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-1021A0
Price: 56,00 € : 56,00 €
-+
07
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 1,85 € : 1,85 €
-+
09
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2021-02-26
Alternative parts:
Specification: M8x75
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 7020-100001
Part Name: BOLT M8x22
Effective: 2021-02-26
Alternative parts:
Specification: M8x22
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 7020-100301-10000
Part Name: SEAT, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 7020-100600
Part Name: BEARING, OUTER SPHERICAL
Effective: 2021-02-26
Alternative parts:
Specification: 205
Price: 20,40 € : 20,40 €
-+
14
P/N (SKU): 9CR6-102200
Part Name: PLATE, STEERING STEM
Effective: 2021-02-26
Alternative parts:
Price: 16,30 € : 16,30 €
-+
15
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x25
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
17
P/N (SKU): 9CR6-102002
Part Name: SHAFT SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
18
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 1,25 € : 1,25 €
-+
19
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2.0x16
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 9CR6-102001
Part Name: STEERING ARM
Effective: 2021-02-26
Alternative parts:
Price: 28,10 € : 28,10 €
-+
22
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2021-02-26
Alternative parts:
Specification: M8x35
Price: 1,25 € : 1,25 €
-+
23
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 30204-122810
Part Name: NUT M12x1.25
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25
Price: 1,05 € : 1,05 €
-+
25
P/N (SKU): 9010-100530-20000
Part Name: STEERING ROD
Effective: 2021-02-26
Alternative parts:
Price: 40,70 € : 40,70 €
-+
26
P/N (SKU): 7020-1006A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 31,60 € : 31,60 €
-+
