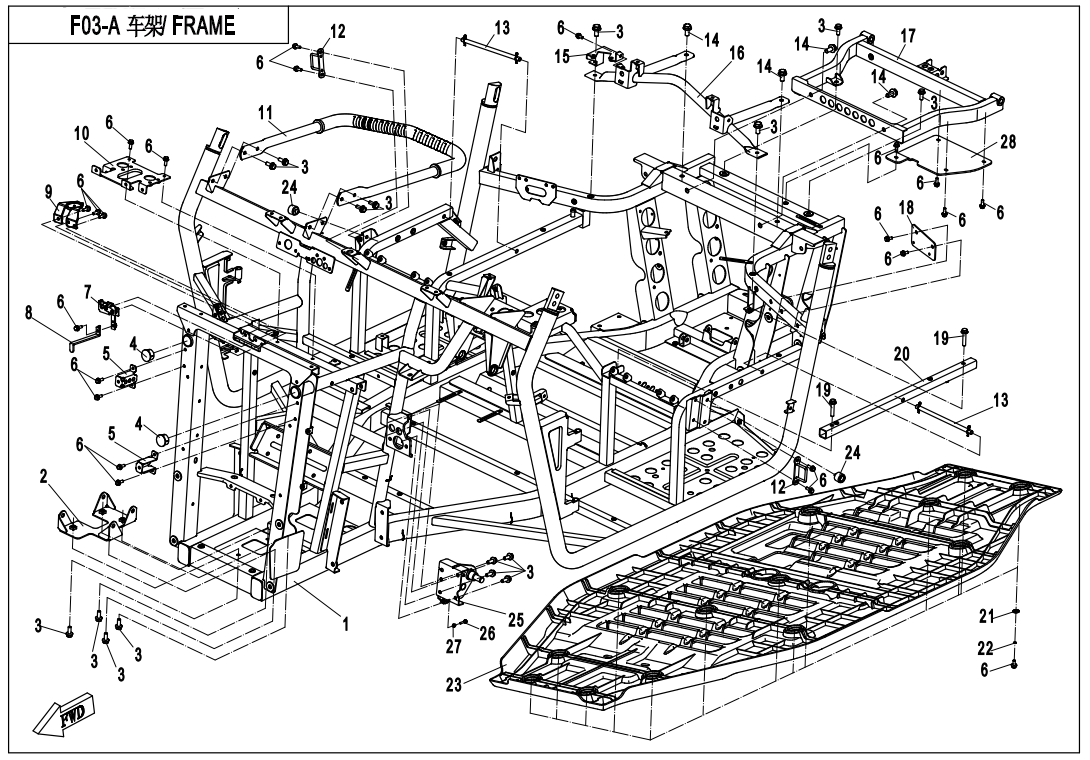

FRAME(2017) - F03-A

No.

01
P/N (SKU): 5UR0-030100-00003
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 5UR0-030100-30000
Price: 1 384,40 € : 1 384,40 €
01
P/N (SKU): 5UR0-030100-00005
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts:
Price: 1 660,50 € : 1 660,50 €
-+
02
P/N (SKU): 7030-038110-10000
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 13,60 € : 13,60 €
-+
03
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 0,85 € : 0,85 €
-+
04
P/N (SKU): 9060-038123
Part Name: FRAME PLUG
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
05
P/N (SKU): 7030-038210
Part Name: BRACKET, FRONT TOP COVER
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
06
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016870
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 7030-010200
Part Name: LOCK, FRONT COVER
Effective: 2021-02-26
Alternative parts:
Price: 20,90 € : 20,90 €
-+
08
P/N (SKU): 7030-010201
Part Name: LEVER, FRONT COVER LOCK
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
09
P/N (SKU): 7030-040192
Part Name: SUPPORT PLATE, SPRING
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
10
P/N (SKU): 7030-037110
Part Name: UPPER BRACKET, RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 12,90 € : 12,90 €
-+
11
P/N (SKU): 7030-037210
Part Name: FRONT ARMREST RAIL ASSY
Effective: 2021-02-26
Alternative parts: 7030-037210-10000
Price: 51,70 € : 51,70 €
12
P/N (SKU): 7030-370700
Part Name: LOCK HOOK
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
13
P/N (SKU): 7030-037810
Part Name: ROD, SEAT LOCK
Effective: 2021-02-26
Alternative parts:
Price: 4,40 € : 4,40 €
-+
14
P/N (SKU): 30001-102025810
Part Name: BOLT M10x1.25x25
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x25
Price: 1,25 € : 1,25 €
-+
15
P/N (SKU): 5UR0-030020
Part Name: BASE SUPPORT, IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 5,15 € : 5,15 €
-+
16
P/N (SKU): 7030-037400-10000
Part Name: SEAT BELT BUCKLE BRACKET ASSY
Effective: 2021-02-26
Alternative parts: 7030-037400-20000
Price: 44,00 € : 44,00 €
17
P/N (SKU): 7030-037600-10000
Part Name: BRACKET, CARGO BOX
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 64,10 € : 64,10 €
-+
18
P/N (SKU): 5UR0-030010
Part Name: ECU SUPPORT
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
19
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×40
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 7030-037710
Part Name: INNER BEAM, LH SEAT
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 11,80 € : 11,80 €
-+
21
P/N (SKU): 9060-040028
Part Name: BASE PLATE GASKET
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 30303-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ6
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 7030-040711-10000
Part Name: BASE PLATE
Effective: 2021-02-26
Alternative parts:
Price: 112,30 € : 112,30 €
-+
24
P/N (SKU): 9030-370901-10000
Part Name: CUSHION RUBBER
Effective: 2021-02-26
Alternative parts: 9030-370901-10001
Price: 1,25 € : 1,25 €
25
P/N (SKU): 7030-039110
Part Name: BRACKET, FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 19,80 € : 19,80 €
-+
26
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 30200-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 7030-030001
Part Name: HEAT INSULATOR, CARGO BOX
Effective: 2021-02-26
Alternative parts:
Price: 15,40 € : 15,40 €
-+
