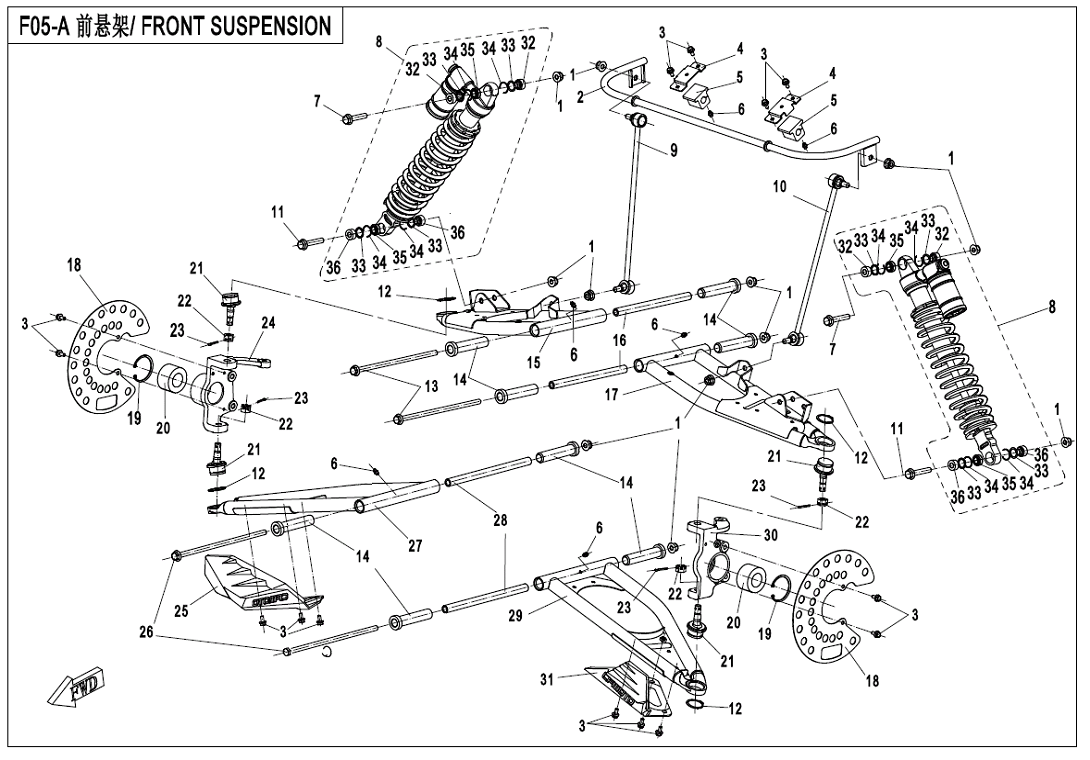

FRONT SUSPENSION(2017) - F05-A

FRONT SUSPENSION(2017) - F05-A

No.

01
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 7000-050610
Part Name: FRONT SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 24,90 € : 24,90 €
-+
03
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 9060-050602
Part Name: COVER, FRONT SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
05
P/N (SKU): 7000-050601
Part Name: RUBBER SEAT, FRONT SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
06
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 30006-102050810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×50
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 7000-050500-1E800
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 330,70 € : 330,70 €
-+
08
P/N (SKU): 7000-050500-1R000
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Specification: RED
Price: 330,70 € : 330,70 €
-+
08
P/N (SKU): 7000-050500-10000
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Specification: WHITE
Price: 326,70 € : 326,70 €
-+
09
P/N (SKU): 9060-050640-1000
Part Name: FRONT RH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts: 9060-050640-20000
Price: 34,50 € : 34,50 €
10
P/N (SKU): 9060-050620-1000
Part Name: FRONT LH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts:
Price: 34,50 € : 34,50 €
-+
11
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×55
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 32 A-TYPE
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 4060-060101
Part Name: MOUNTING SHAFT, REAR ARM
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
14
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 9,70 € : 9,70 €
-+
15
P/N (SKU): 7000-050110-0E800
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1E800+7000-050110-1E800
Specification: CORAL BLUE
Price: 59,30 € : 59,30 €
15
P/N (SKU): 7000-050110-0R000
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1R000+7000-050110-1R000
Specification: RED
Price: 59,70 € : 59,70 €
15
P/N (SKU): 7000-050110-0V200
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1V200+7000-050110-1V200
Specification: PEARL WHITE
Price: 53,50 € : 53,50 €
15
P/N (SKU): 7000-050110
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1B000+7000-050110-1B000
Specification: ELECTROPHORESIS BLAC
Price: 53,50 € : 53,50 €
16
P/N (SKU): 9060-060101-00001
Part Name: SPACER, REAR UPPER SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-060101-00002
Price: 4,05 € : 4,05 €
17
P/N (SKU): 7000-050310
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1B000
Specification: ELECTROPHORESIS BLAC
Price: 60,80 € : 60,80 €
17
P/N (SKU): 7000-050310-0R000
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1R000
Specification: RED
Price: 59,70 € : 59,70 €
17
P/N (SKU): 7000-050310-0V200
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1V200
Specification: PEARL WHITE
Price: 53,50 € : 53,50 €
17
P/N (SKU): 7000-050310-0E800
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050310-1E800
Specification: CORAL BLUE
Price: 59,30 € : 59,30 €
18
P/N (SKU): 7000-050001
Part Name: GUARD, BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 13,60 € : 13,60 €
-+
19
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2021-02-26
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
20
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
21
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 20,20 € : 20,20 €
-+
21
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 33,10 € : 33,10 €
22
P/N (SKU): 30219-122810
Part Name: NUT M12x1.25
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25
Price: 0,95 € : 0,95 €
-+
23
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ3.2×22
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 7000-050802
Part Name: STEERING KNUCKLE, RH
Effective: 2021-02-26
Alternative parts:
Price: 70,20 € : 70,20 €
-+
25
P/N (SKU): 7000-050004
Part Name: RH PANEL, FRONT SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 5,15 € : 5,15 €
-+
26
P/N (SKU): 4060-050101
Part Name: SHAFT, FRONT SWNG ARM
Effective: 2021-02-26
Alternative parts:
Price: 8,15 € : 8,15 €
-+
27
P/N (SKU): 7000-050210-1000
Part Name: FRONT LOWER SWING ARM, RH
Effective: 2021-02-26
Alternative parts: 7000-050210-3B000
Specification: ELECTROPHORESIS BLACK
Price: 53,90 € : 53,90 €
27
P/N (SKU): 7000-050210-1V200
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050210-3V200
Specification: PEARL WHITE
Price: 53,90 € : 53,90 €
27
P/N (SKU): 7000-050210-1E800
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050210-3E800
Specification: CORAL BLUE
Price: 60,10 € : 60,10 €
27
P/N (SKU): 7000-050210-1R000
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050210-3R000
Specification: RED
Price: 59,70 € : 59,70 €
28
P/N (SKU): 9060-050101-00001
Part Name: SPACER, FRONT SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-050101-00002
Price: 6,10 € : 6,10 €
29
P/N (SKU): 7000-050410-1R000
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050410-3R000
Specification: RED
Price: 59,70 € : 59,70 €
29
P/N (SKU): 7000-050410-1V200
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050410-3V200
Specification: PEARL WHITE
Price: 53,90 € : 53,90 €
29
P/N (SKU): 7000-050410-1E800
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050410-3E800
Specification: CORAL BLUE
Price: 60,10 € : 60,10 €
29
P/N (SKU): 7000-050410-1000
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-050410-3B000
Specification: ELECTROPHORESIS BLAC
Price: 53,90 € : 53,90 €
30
P/N (SKU): 7000-050702
Part Name: LH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 70,20 € : 70,20 €
-+
31
P/N (SKU): 7000-050003
Part Name: LH PANEL, FRONT SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
32
P/N (SKU): 7000-050503
Part Name: SPACER RING
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
33
P/N (SKU): 7000-050501
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
34
P/N (SKU): 7000-050502
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
35
P/N (SKU): 7000-050510
Part Name: BEARING ASSY
Effective: 2021-02-26
Alternative parts:
Price: 19,10 € : 19,10 €
-+
36
P/N (SKU): 7000-050504
Part Name: SPACER RING 1
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
