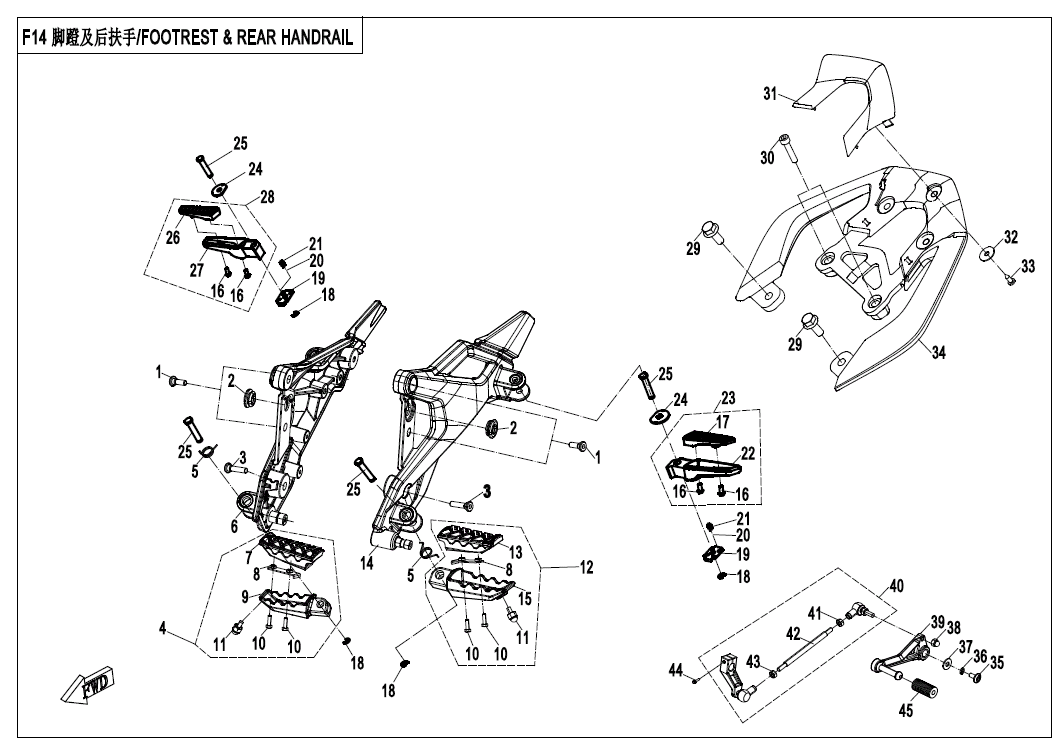

FOOTREST @^ REAR HANDRAIL - F14-V2

FOOTREST @^ REAR HANDRAIL - F14-V2

No.

01
P/N (SKU): 6100-140103
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts:
Specification: M8X25
Price: 4,40 € : 4,40 €
-+
02
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): A000-140107
Part Name: BOLT M8
Effective: 2021-02-26
Alternative parts: 6KM0-140107
Specification: M8
Price: 3,70 € : 3,70 €
04
P/N (SKU): 6NT1-140130-1V100
Part Name: FRONT RH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 19,40 € : 19,40 €
-+
05
P/N (SKU): 6NT1-140103
Part Name: SPRING
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 6NT1-140140-1V100
Part Name: RH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Alternative parts: 6NT1-140110-2V100+6NT1-140140-2V100
Specification: SILVER WHITE
Price: 69,00 € : 69,00 €
07
P/N (SKU): 6NT1-140132
Part Name: FRONT RH FOOTREST RUBBER
Effective: 2021-02-26
Alternative parts: 6NT1-140132-00001
Price: 4,05 € : 4,05 €
08
P/N (SKU): 6NT1-140150
Part Name: CONNECTING PLATE, FOOTREST
Effective: 2021-02-26
Alternative parts:
Price: 4,40 € : 4,40 €
-+
09
P/N (SKU): 6NT1-140131-1V100
Part Name: FRONT RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts:
Specification: SILVER WHITE
Price: 8,80 € : 8,80 €
-+
10
P/N (SKU): 30105-050016410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x16@COLOR ZINC-PLATED
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): A010-140123
Part Name: LIMIT BOLT
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
12
P/N (SKU): 6NT1-140120-1V100
Part Name: FRONT LH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 19,10 € : 19,10 €
-+
13
P/N (SKU): 6NT1-140122
Part Name: RUBBER, LH FRONT FOOTREST
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
14
P/N (SKU): 6NT1-140110-1V100
Part Name: LH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SILVER WHITE
Price: 69,00 € : 69,00 €
-+
15
P/N (SKU): 6NT1-140121-1V100
Part Name: FRONT LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts:
Specification: SILVER WHITE
Price: 8,80 € : 8,80 €
-+
16
P/N (SKU): 30105-050012410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x12@COLOR ZINC-PLATED
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 6KJ0-140132
Part Name: RUBBER, LH FOOT PEDAL
Effective: 2021-02-26
Alternative parts: 6KMV-140132-M100
Price: 4,40 € : 4,40 €
-+
18
P/N (SKU): 30802-00605
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
20
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 6KJ0-140151-2V100
Part Name: REAR LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: 6KJV-140151-8000-0V100
Specification: SILVER WHITE
Price: 11,40 € : 11,40 €
23
P/N (SKU): 6KJ0-140150-1V100
Part Name: REAR LH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 14,30 € : 14,30 €
-+
24
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
25
P/N (SKU): A000-140142
Part Name: PIN SHAFT Dia 8
Effective: 2021-02-26
Alternative parts:
Specification: Dia 8
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 6KJ0-140142
Part Name: RH FOOTREST RUBBER ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-140142-M100
Price: 5,90 € : 5,90 €
-+
27
P/N (SKU): 6KJ0-140161-2V100
Part Name: REAR RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: 6KJV-140161-8000-0V100
Specification: SILVER WHITE
Price: 11,00 € : 11,00 €
28
P/N (SKU): 6KJ0-140160-1V100
Part Name: REAR RH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 14,30 € : 14,30 €
-+
29
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 0,85 € : 0,85 €
-+
30
P/N (SKU): 30102-080030810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M8x30
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 6NT1-140202
Part Name: REAR ARMREST COVER
Effective: 2021-02-26
Alternative parts:
Price: 1,85 € : 1,85 €
-+
32
P/N (SKU): 30305-050112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ5
Price: 0,75 € : 0,75 €
-+
33
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,95 € : 0,95 €
-+
34
P/N (SKU): 6NT1-140201-0B200
Part Name: REAR ARMREST
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 58,60 € : 58,60 €
-+
34
P/N (SKU): 6NT1-140201-0V100
Part Name: REAR ARMREST
Effective: 2021-02-26
Alternative parts:
Specification: SILVER WHITE
Price: 59,70 € : 59,70 €
-+
35
P/N (SKU): A000-040702
Part Name: INNER HEX SCREW M6x12
Effective: 2021-02-26
Alternative parts: 6KM#-040702-8000
Specification: M6x12
Price: 0,55 € : 0,55 €
36
P/N (SKU): 30303-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ6
Price: 0,55 € : 0,55 €
-+
37
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ6
Price: 0,55 € : 0,55 €
-+
38
P/N (SKU): 30212-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 0,95 € : 0,95 €
-+
39
P/N (SKU): 6NT1-141001-0V100
Part Name: GEARSHIFT ROD PEDAL
Effective: 2021-02-26
Alternative parts:
Specification: SILVER WHITE
Price: 27,50 € : 27,50 €
-+
40
P/N (SKU): 6NT1-141100
Part Name: GEARSHIFT ROD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 20,50 € : 20,50 €
-+
41
P/N (SKU): 30200-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
42
P/N (SKU): 6NT1-141102
Part Name: CONNECTING ROD
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
43
P/N (SKU): 30200-06082L
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts:
Specification: M6, LEFT-HAND THREAD
Price: 0,55 € : 0,55 €
-+
44
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 0,55 € : 0,55 €
45
P/N (SKU): 0700-065404
Part Name: FOOT PEDAL RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
