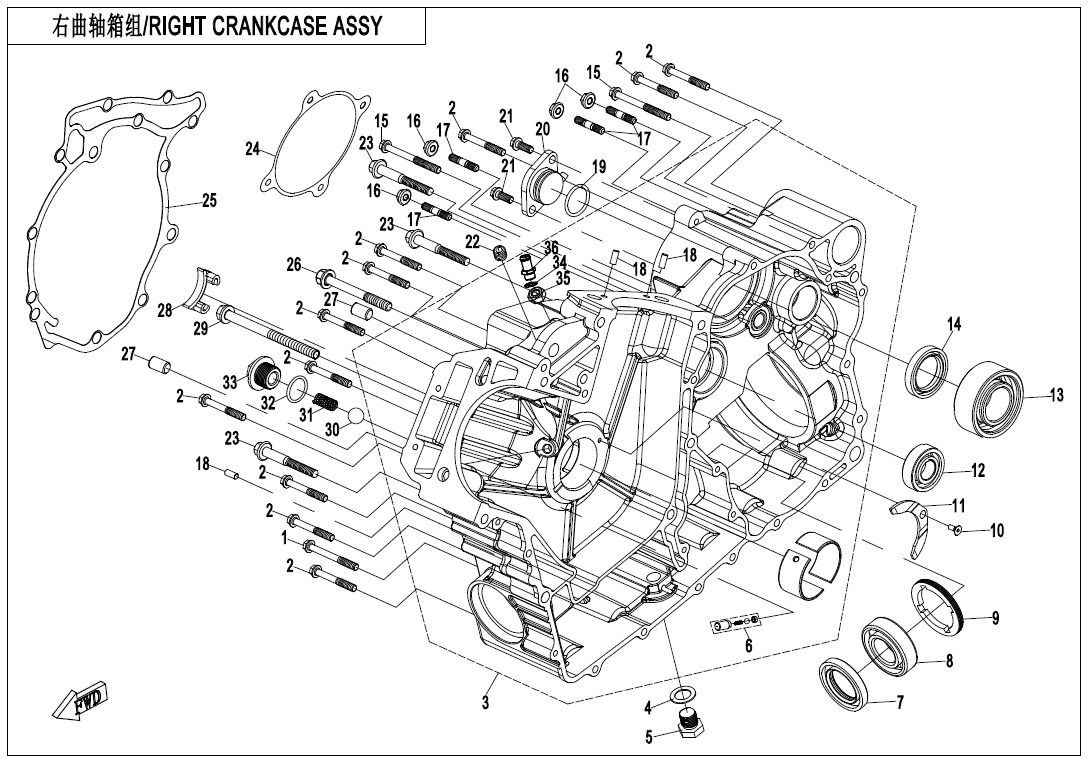

RIGHT CRANKCASE ASSY - E01-2-V2

RIGHT CRANKCASE ASSY - E01-2-V2

No.

01
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6x55
Effective: 2021-02-26
Alternative parts:
Specification: M6x55
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2021-02-26
Alternative parts:
Specification: M6x45
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 0JWA-012100-10000
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Remarks: THERE IS A NUT ON THE CONNECTING POSITION BETWEEN RIGHT CRANKCASE AND WATER HOSE.
Alternative parts:
Price: 180,00 € : 180,00 €
-+
04
P/N (SKU): 0JWA-012003
Part Name: SPACER 14.1x22x1
Effective: 2021-02-26
Alternative parts:
Specification: 14.1x22x1
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 0JWA-012200
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M14x1.5
Price: 2,60 € : 2,60 €
-+
06
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY
Effective: 2021-02-26
Alternative parts: 0800-011400-00001
Price: 6,60 € : 6,60 €
-+
07
P/N (SKU): 0010-011002
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 25x40x8
Price: 3,30 € : 3,30 €
-+
08
P/N (SKU): 30400-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 25
Price: 5,15 € : 5,15 €
-+
09
P/N (SKU): 0JWA-012004
Part Name: MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 6,60 € : 6,60 €
-+
10
P/N (SKU): 30122-040010850
Part Name: SCREW M4x10
Effective: 2021-02-26
Alternative parts:
Specification: M4x10
Price: 1,25 € : 1,25 €
-+
11
P/N (SKU): 0800-011003
Part Name: THRUST WASHER, CRANKCASE
Effective: 2021-02-26
Alternative parts:
Price: 5,15 € : 5,15 €
-+
12
P/N (SKU): 30400-01704
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 17
Price: 9,55 € : 9,55 €
-+
13
P/N (SKU): 30499-03000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 5206
Price: 66,10 € : 66,10 €
-+
14
P/N (SKU): 0180-012006
Part Name: OIL SEAL 30x45x7
Effective: 2021-02-26
Alternative parts: 0180-012006-00001
Specification: 30x45x7
Price: 5,10 € : 5,10 €
15
P/N (SKU): 0A70-011005
Part Name: BOLT M6x75
Effective: 2021-02-26
Alternative parts: 0A70-011005-00001
Specification: M6x75
Price: 0,55 € : 0,55 €
16
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,05 € : 1,05 €
-+
17
P/N (SKU): 30011-060020820
Part Name: STUD
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Effective: 2021-02-26
Alternative parts:
Specification: P5x11.8
Price: 1,05 € : 1,05 €
-+
19
P/N (SKU): 0180-023002
Part Name: O-SEAL RING 24x2.5
Effective: 2021-02-26
Alternative parts:
Specification: 24x2.5
Price: 1,05 € : 1,05 €
-+
20
P/N (SKU): 0800-012200
Part Name: GEAR SENSOR ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 16,30 € : 16,30 €
-+
20
P/N (SKU): 0800-012200-1000
Part Name: GEAR SENSOR ASSY
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts:
Specification: SUMITOMO PLUG
Price: 21,30 € : 21,30 €
-+
21
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 01A0-012010
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 01A0-012010-00001
Price: 0,55 € : 0,55 €
23
P/N (SKU): 0130-011109-0010
Part Name: BOLT M8x60
Effective: 2021-02-26
Alternative parts:
Specification: M8x60
Price: 0,95 € : 0,95 €
-+
24
P/N (SKU): 0JWA-012002
Part Name: GASKET 2, CVT CASE
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
25
P/N (SKU): 0JWA-012001
Part Name: GASKET 1, CVT CASE
Effective: 2021-02-26
Alternative parts:
Price: 3,05 € : 3,05 €
-+
26
P/N (SKU): 0700-012003
Part Name: BOLT M8x73
Effective: 2021-02-26
Alternative parts: 0700-012003-00001
Specification: M8x73
Price: 1,25 € : 1,25 €
27
P/N (SKU): 0010-021005
Part Name: DOWEL PIN 10x14
Effective: 2021-02-26
Alternative parts:
Specification: 10x14
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
29
P/N (SKU): 0130-011115-0010
Part Name: BOLT M8x106
Effective: 2021-02-26
Alternative parts: 0130-011115-00001
Specification: M8x106
Price: 1,85 € : 1,85 €
30
P/N (SKU): 3120015
Part Name: STEEL BALL
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 0700-012603-1000
Part Name: SPRING, RELIEF VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0180-332004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 19x2.5
Price: 0,55 € : 0,55 €
-+
33
P/N (SKU): 0JWA-012005
Part Name: SCREW PLUG,RELIEF VALVE
Effective: 2021-02-26
Alternative parts: 0GR0-0140A0
Price: 2,20 € : 2,20 €
34
P/N (SKU): 0010-011008
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 15.8x2.4
Price: 1,05 € : 1,05 €
-+
35
P/N (SKU): 30208-183700
Part Name: NUT M18x1.5
Effective: 2021-02-26
Alternative parts:
Specification: M18x1.5
Price: 2,20 € : 2,20 €
-+
36
P/N (SKU): 0JWA-080009
Part Name: JOINT, WATER PUMP COVER
Effective: 2021-02-26
Alternative parts: 0JWA-080009-00001
Price: 3,05 € : 3,05 €
-+
