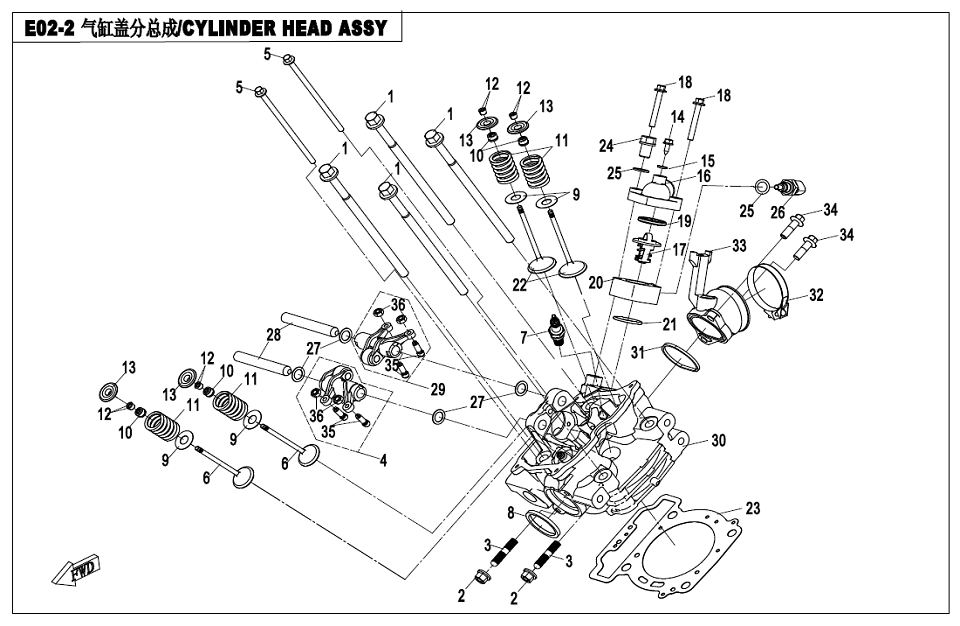

CYLINDER HEAD ASSY - E02-2

No.

01
P/N (SKU): 0GR0-022001
Part Name: CYLINDER BOLT
Effective: 2021-02-26
Alternative parts: 0GR0-022001-10000
Price: 5,10 € : 5,10 €
-+
02
P/N (SKU): 0010-011700-0010
Part Name: FLANGE NUT M8
Effective: 2021-02-26
Alternative parts: 8010-020001
Specification: M8
Price: 0,55 € : 0,55 €
03
P/N (SKU): 0180-022003-0010
Part Name: STUD M8x42
Effective: 2021-02-26
Alternative parts: 0180-022003-00001
Specification: M8x42
Price: 1,05 € : 1,05 €
04
P/N (SKU): 0800-022600-1000
Part Name: SWING ARM, EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
05
P/N (SKU): 0GR0-022002
Part Name: BOLT M6X132
Effective: 2021-02-26
Alternative parts: 0GR0-022002-00001
Specification: M6X132
Price: 2,55 € : 2,55 €
06
P/N (SKU): 0800-022005
Part Name: VALVE, EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 12,20 € : 12,20 €
-+
07
P/N (SKU): 0800-022800
Part Name: SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Price: 12,90 € : 12,90 €
-+
08
P/N (SKU): 0800-022300
Part Name: BUSHING, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
09
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0010-022500
Part Name: SEAL RING, VALVE STEM
Effective: 2021-02-26
Alternative parts: 0010-022500-10000
Price: 1,55 € : 1,55 €
11
P/N (SKU): 0800-022006
Part Name: SPRING, VALVE
Effective: 2021-02-26
Alternative parts: 0800-022006-10000
Price: 1,50 € : 1,50 €
12
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30132-480130010
Part Name: SELF-TAPPING SCREW ST4.8x13
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x13
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 0800-022011
Part Name: WASHER 5.3x11x1.5
Effective: 2021-02-26
Alternative parts:
Specification: 5.3x11x1.5
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 0GRB-022001
Part Name: HOUSING, THERMOSTAT
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
17
P/N (SKU): 0800-022700
Part Name: THERMOSTAT
Effective: 2021-02-26
Alternative parts:
Price: 12,90 € : 12,90 €
-+
18
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2021-02-26
Alternative parts:
Specification: M6x45
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
20
P/N (SKU): 0GR0-022003
Part Name: SEAT, THERMOSTAT
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
21
P/N (SKU): 30502-028000N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 28x2.65
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 12,20 € : 12,20 €
-+
23
P/N (SKU): 0800-022200
Part Name: GASKET, CYLINDER HEAD
Effective: 2021-02-26
Alternative parts: 0800-022200-00002
Price: 17,80 € : 17,80 €
24
P/N (SKU): 0800-022015-00001
Part Name: SCREW PLUG M12x1.5
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
25
P/N (SKU): 0800-022014
Part Name: WASHER 12.2x18x1.5
Effective: 2021-02-26
Alternative parts:
Specification: 12.2x18x1.5
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 018B-022810
Part Name: WATER TEMPERATURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 26,50 € : 26,50 €
-+
27
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.3x18.5x0.5
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
29
P/N (SKU): 0800-022500-1000
Part Name: SWING ARM, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
30
P/N (SKU): 0JY0-022100
Part Name: CYLINDER HEAD ASSY
Effective: 2021-02-26
Price: 90,30 € : 90,30 €
31
P/N (SKU): 0800-025002
Part Name: SEAL RING, MANIFOLD
Effective: 2021-02-26
Alternative parts: 080V-025002-1000
Price: 0,55 € : 0,55 €
32
P/N (SKU): 01A0-110005
Part Name: CLAMP 57
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
33
P/N (SKU): 0GR0-022900
Part Name: INJECTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 29,70 € : 29,70 €
-+
34
P/N (SKU): 0130-011114-0010
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts: 0130-011114-00001
Specification: M8x25
Price: 0,95 € : 0,95 €
35
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
36
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
