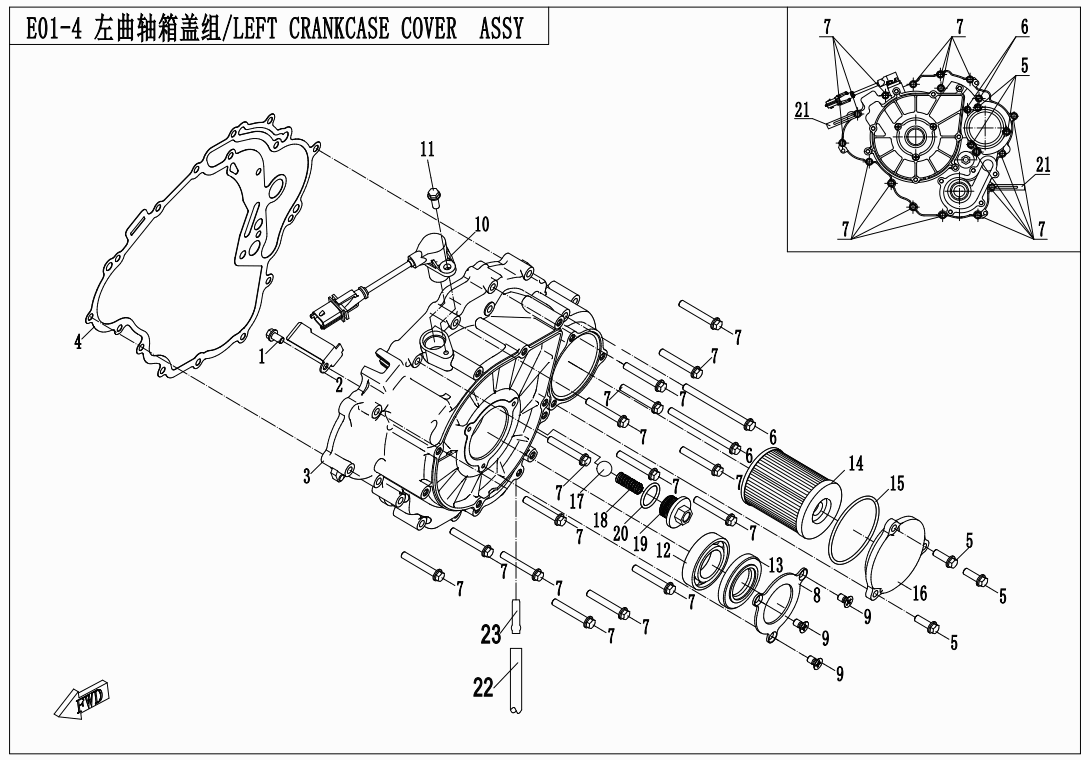

LEFT CRANKCASE COVER ASSY - E01-4 | 2015, ENGINE, 191R-Z550

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0010-080010-0010

Part Name: BOLT M6x10

Effective: 2021-02-26

Alternative parts: 0010-080010-00001

Specification: M6x10

Price: 0,55 € : 0,55 €

02

P/N (SKU): 0GR0-014005

Part Name: PLATE

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

03

P/N (SKU): 0GR0-014001

Part Name: COVER, LH CRANKCASE

Effective: 2021-02-26

Alternative parts:

Price: 68,10 € : 68,10 €

04

P/N (SKU): 0GR0-014002

Part Name: PAPER GASKET, LH CRANKCASE COVER

Effective: 2021-02-26

Alternative parts: 0GR0-014002-10000

Price: 6,05 € : 6,05 €

05

P/N (SKU): 0010-023008-0010

Part Name: BOLT M6x18

Effective: 2021-02-26

Alternative parts: 0010-023008-00001

Specification: M6x18

Price: 0,55 € : 0,55 €

06

P/N (SKU): 0A70-011005

Part Name: BOLT M6x75

Effective: 2021-02-26

Alternative parts: 0A70-011005-00001

Specification: M6x75

Price: 0,55 € : 0,55 €

07

P/N (SKU): 0010-013009-0010

Part Name: BOLT M6x40

Effective: 2021-02-26

Alternative parts:

Specification: M6x40

Price: 0,55 € : 0,55 €

08

P/N (SKU): 0180-014007-0010

Part Name: PRESS PLATE, OIL SEAL

Effective: 2021-02-26

Alternative parts:

Price: 4,05 € : 4,05 €

09

P/N (SKU): 0180-014009-0010

Part Name: SCREW, PRESS PLATE

Effective: 2021-02-26

Alternative parts: 0180-014009-00001

Price: 0,55 € : 0,55 €

10

P/N (SKU): 0800-014100

Part Name: RPM SENSOR

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 16,20 € : 16,20 €

10

P/N (SKU): 0800-014100-1000

Part Name: RPM SENSOR

Effective: 2021-02-26

Alternative parts:

Specification: SUMITOMO PLUG

Price: 18,30 € : 18,30 €

11

P/N (SKU): 0010-090005-0010

Part Name: BOLT M6x16

Effective: 2021-02-26

Alternative parts:

Specification: M6x16

Price: 0,55 € : 0,55 €

12

P/N (SKU): 30400-02800

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Price: 9,50 € : 9,50 €

13

P/N (SKU): 0180-014008

Part Name: OIL SEAL 28x52x7

Effective: 2021-02-26

Alternative parts:

Specification: 28x52x7

Price: 5,15 € : 5,15 €

14

P/N (SKU): 0800-011300-0004

Part Name: OIL FILTER ELEMENT

Effective: 2021-02-26

Alternative parts:

Price: 9,15 € : 9,15 €

15

P/N (SKU): 0800-014003

Part Name: O-RING

Effective: 2021-02-26

Alternative parts:

Specification: 63x2.5

Price: 0,95 € : 0,95 €

16

P/N (SKU): 0800-014002

Part Name: FILTER CAP

Effective: 2021-02-26

Alternative parts: 0800-014002-00001

Price: 4,05 € : 4,05 €

17

P/N (SKU): 3120015

Part Name: STEEL BALL

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

18

P/N (SKU): 0700-012603-1000

Part Name: SPRING, RELIEF VALVE

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

19

P/N (SKU): 0GR0-014003

Part Name: SCREW PLUG, RELIEF VALVE

Effective: 2021-02-26

Alternative parts:

Price: 2,20 € : 2,20 €

20

P/N (SKU): 0180-332004

Part Name: O-RING

Effective: 2021-02-26

Alternative parts:

Specification: 19x2.5

Price: 0,55 € : 0,55 €

21

P/N (SKU): 0180-014010

Part Name: WIRE CLIP

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

22

P/N (SKU): 0800-014013

Part Name: OVERFLOW HOSE

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

23

P/N (SKU): 01A0-022102

Part Name: PIPE JOINT

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €
