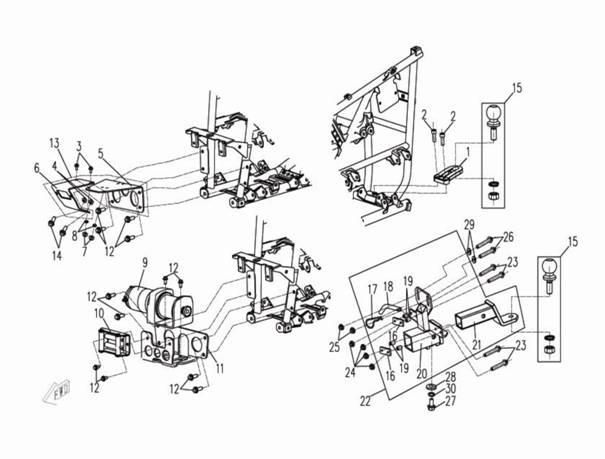

WINCH@^TOWING - F30

WINCH@^TOWING - F30

No.

01
P/N (SKU): 9010-030002
Part Name: TOWING BRACKET
Effective: 2021-02-26
Remarks: OPTIONAL ；is replaced by 4020-030002
Alternative parts:
Price: 12,50 € : 12,50 €
-+
02
P/N (SKU): 30102-102040840
Part Name:
Effective: 2021-02-26
Remarks: M10*1.25*40
Alternative parts:
Price: 0,95 € : 0,95 €
-+
03
P/N (SKU): 30006-060016840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: M6x16
Price: 0,55 € : 0,55 €
04
P/N (SKU): 30204-080840
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 30204-080810
Specification: M8
Price: 0,55 € : 0,55 €
05
P/N (SKU): 901D-037500
Part Name: WINCH BRACKET ASSY 1
Effective: 2021-02-26
Remarks: WT
Alternative parts:
Price: 11,40 € : 11,40 €
-+
06
P/N (SKU): 901E-037500
Part Name: WINCH BRACKET ASSY 2
Effective: 2021-02-26
Remarks: WT
Alternative parts:
Price: 23,10 € : 23,10 €
-+
07
P/N (SKU): 30302-060140
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 30204-060840
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 9010-150740-2000
Part Name: WINCH MOTOR
Effective: 2021-02-26
Remarks: OPTIONAL, LIANDA
Alternative parts:
Specification: LIANDA
Price: 178,50 € : 178,50 €
-+
09
P/N (SKU): 9010-150740-A000
Part Name: WINCH MOTOR
Effective: 2021-02-26
Remarks: ROCKY
Alternative parts:
Specification: ROCKY
Price: 245,00 € : 245,00 €
-+
10
P/N (SKU): 9010-150730-A000
Part Name: CABLE PULLEY
Effective: 2021-02-26
Remarks: ROCKY
Alternative parts:
Specification: ROCKY
Price: 18,00 € : 18,00 €
-+
10
P/N (SKU): 9010-150730
Part Name: CABLE PULLEY
Effective: 2021-02-26
Remarks: LIANDA
Alternative parts:
Specification: LIANDA
Price: 20,90 € : 20,90 €
-+
11
P/N (SKU): 9010-037500
Part Name: INSTALLING BRACKET, WINCH
Effective: 2021-02-26
Alternative parts:
Price: 33,70 € : 33,70 €
-+
11
P/N (SKU): 9010-037500-C000
Part Name: INSTALLING BRACKET, WINCH
Effective: 2021-02-26
Remarks: MILE MARKER
Alternative parts: 9010-037500
Price: 31,20 € : 31,20 €
12
P/N (SKU): 30006-080020840
Part Name: BOLT M8x20
Effective: 2021-02-26
Alternative parts: 30006-080020810
Specification: M8x20
Price: 0,55 € : 0,55 €
14
P/N (SKU): 30006-080016840
Part Name: BOLT M8x16
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: M8x16
Price: 1,65 € : 1,65 €
-+
15
P/N (SKU): 9010-204000
Part Name: TOWING HITCHBALL ASSY
Effective: 2021-02-26
Remarks: 1 7/8 inches
Alternative parts:
Specification: 1and 7/8"
Price: 22,40 € : 22,40 €
-+
15
P/N (SKU): 9010-205000-1000
Part Name: TOWING HITCHBALL ASSY
Effective: 2021-02-26
Alternative parts: 9010-205000-20000
Specification: 50mm Certificated ball head
Price: 19,40 € : 19,40 €
15
P/N (SKU): 9010-205000
Part Name: TOWING HITCHBALL ASSY
Effective: 2021-02-26
Remarks: 2 INCHES, OVERSEAS
Alternative parts:
Specification: 2"
Price: 20,50 € : 20,50 €
-+
16
P/N (SKU): 9010-400101
Part Name: FIXING PAD, BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
17
P/N (SKU): 9010-400102
Part Name: COTTER PIN, BRACKET
Effective: 2021-02-26
Alternative parts: 9010-400102-10000
Price: 2,05 € : 2,05 €
18
P/N (SKU): 9010-400103
Part Name: PIN SHAFT, BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
19
P/N (SKU): 9010-400104
Part Name: STAND FIXED BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9010-400110
Part Name: TOWING BRACKET SEAT
Effective: 2021-02-26
Alternative parts:
Price: 45,10 € : 45,10 €
-+
21
P/N (SKU): 9010-400120
Part Name: BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 30,10 € : 30,10 €
-+
22
P/N (SKU): 9010-400100
Part Name: AUXILIARY TOWING BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 72,30 € : 72,30 €
-+
23
P/N (SKU): 30006-080050850
Part Name: BOLT
Effective: 2021-02-26
Remarks: M8*50
Alternative parts: 30006-080050810
Specification: M8x50
Price: 0,95 € : 0,95 €
24
P/N (SKU): 30204-080850
Part Name: NUT M8
Effective: 2021-02-26
Remarks: M8
Alternative parts: 30204-080810
Specification: M8
Price: 0,55 € : 0,55 €
25
P/N (SKU): 30204-101850
Part Name: NUT M10
Effective: 2021-02-26
Remarks: M10
Alternative parts: 30204-102810
Specification: M10
Price: 0,55 € : 0,55 €
27
P/N (SKU): 30000-160040450
Part Name: HEX BOLT
Effective: 2021-02-26
Remarks: M16*40
Alternative parts:
Specification: M16x40
Price: 2,20 € : 2,20 €
-+
28
P/N (SKU): 30305-160152
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 16
Price: 2,60 € : 2,60 €
-+
29
P/N (SKU): 30305-100152
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10
Price: 0,95 € : 0,95 €
-+
30
P/N (SKU): 30303-160152
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 16
Price: 0,95 € : 0,95 €
-+
