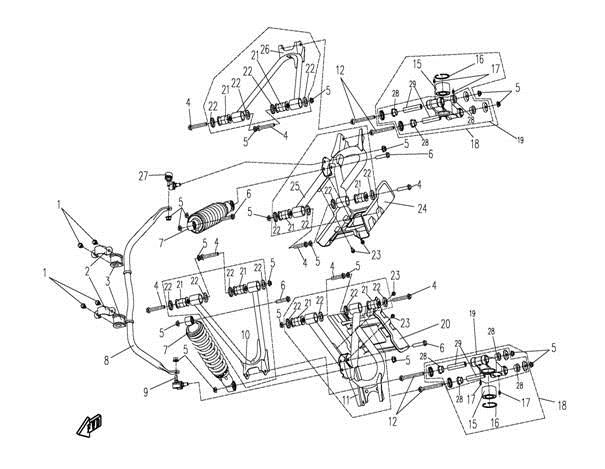

REAR SUSPENSION ASSY - F16

No.

01
P/N (SKU): 30006-080012840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-080012810
Specification: M8x12
Price: 0,55 € : 0,55 €
02
P/N (SKU): 9010-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
03
P/N (SKU): 9010-060003
Part Name: RUBBER SUPPORT SEAT
Effective: 2021-02-26
Alternative parts: 9GQ0-060003
Price: 5,60 € : 5,60 €
04
P/N (SKU): 30006-102070840
Part Name: BOLT M10x1.25x70
Effective: 2021-02-26
Alternative parts: 30006-102070810
Specification: M10x1.25x70
Price: 1,80 € : 1,80 €
05
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 0,95 € : 0,95 €
06
P/N (SKU): 30006-102050840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 9010-060600-20001
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Remarks: YiT;GAS;BLACK SPRING
Alternative parts:
Specification: YiT@BLACK SPRING
Price: 103,40 € : 103,40 €
-+
07
P/N (SKU): 9010-060600-1000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Remarks: GAS AND RED;is replaced by 9010-060600-10001
Alternative parts: 9010-060600-10001
Specification: YiT@RED SPRING
Price: 147,50 € : 147,50 €
07
P/N (SKU): 9010-060600-2000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Remarks: BLACK AND AIR;is replaced by 9010-060600-20001
Alternative parts: 9010-060600-20001
Specification: YiT@BLACK SPRING
Price: 103,40 € : 103,40 €
07
P/N (SKU): 9010-060600
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Remarks: YIT
Alternative parts:
Specification: YiT
Price: 62,60 € : 62,60 €
-+
07
P/N (SKU): 9010-060600-7000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Remarks: TuoPu;Ordinary
Alternative parts: 9010-060600-1000
Specification: TuoPu@ORDINARY
Price: 69,00 € : 69,00 €
07
P/N (SKU): 9010-060600-10001
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Remarks: YiT;GAS,RED SPRING
Alternative parts:
Specification: YiT@RED SPRING
Price: 147,50 € : 147,50 €
-+
08
P/N (SKU): 9010-060500
Part Name: SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 61,00 € : 61,00 €
-+
09
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
09
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
10
P/N (SKU): 9010-060300
Part Name:
Effective: 2021-02-26
Remarks: STEEL
Alternative parts:
Price: 38,40 € : 38,40 €
-+
10
P/N (SKU): 9010-060300-10000
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Remarks: STEEL
Alternative parts: 9010-060300-20000
Price: 23,80 € : 23,80 €
11
P/N (SKU): 9010-060400
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts: 9010-060400-20000
Price: 44,70 € : 44,70 €
11
P/N (SKU): 9010-060400-10000
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts: 9010-060400-20000
Price: 43,60 € : 43,60 €
12
P/N (SKU): 30006-102100840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
15
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
16
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2021-02-26
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
17
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 9010-060010
Part Name: REAR BEARING CARRIER
Effective: 2021-02-26
Alternative parts:
Price: 75,40 € : 75,40 €
-+
19
P/N (SKU): 9010-0600A0
Part Name: REAR BEARING CARRIER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 71,50 € : 71,50 €
-+
20
P/N (SKU): 9010-040021-10000
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Specification: INTERFERENCE IN PARKING CABLE
Price: 6,25 € : 6,25 €
-+
20
P/N (SKU): 9010-040021
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-02-26
Alternative parts: 9010-040021-10000
Price: 8,10 € : 8,10 €
21
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
22
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
24
P/N (SKU): 9010-040022-10000
Part Name: REAR SUSPENSION FENDER, RH
Effective: 2021-02-26
Alternative parts:
Specification: INTERFERENCE IN PARKING CABLE
Price: 6,25 € : 6,25 €
-+
24
P/N (SKU): 9010-040022
Part Name: REAR RH SUSPENSION FENDER
Effective: 2021-02-26
Alternative parts: 9010-040022-10000
Price: 7,70 € : 7,70 €
25
P/N (SKU): 9010-060200
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060200-20000
Price: 44,70 € : 44,70 €
25
P/N (SKU): 9010-060200-10000
Part Name: REAR SWING ARM (LOWER), RH
Effective: 2021-02-26
Alternative parts: 9010-060200-20000
Price: 43,60 € : 43,60 €
26
P/N (SKU): 9010-060100
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060100-10000
Price: 38,40 € : 38,40 €
26
P/N (SKU): 9010-060100-10000
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060100-20000
Price: 32,60 € : 32,60 €
27
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
27
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-02-26
Remarks: CCVI
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
28
P/N (SKU): 9010-060004
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 4,60 € : 4,60 €
-+
29
P/N (SKU): 9010-060005
Part Name: MIDDLE SPACER
Effective: 2021-02-26
Alternative parts:
Price: 5,60 € : 5,60 €
-+
