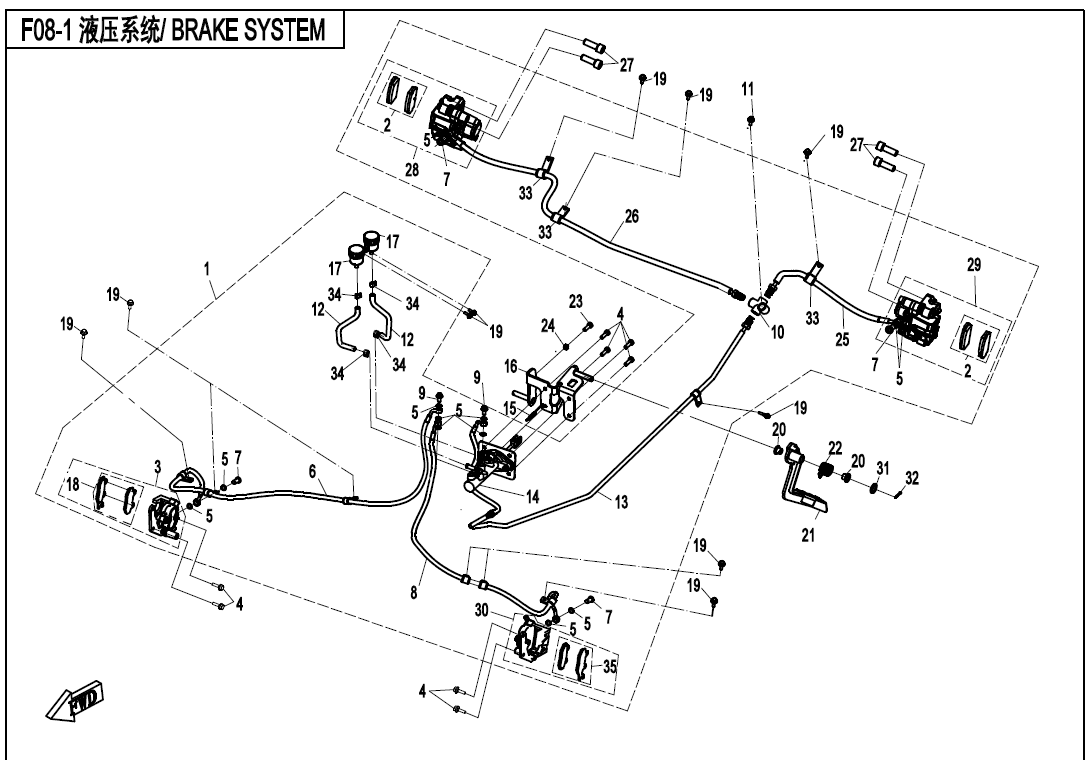

BRAKING SYSTEM - F08-1

BRAKING SYSTEM - F08-1

No.

01
P/N (SKU): 7000-080100
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 419,10 € : 419,10 €
-+
01
P/N (SKU): 7000-080100-20000
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2021-02-26
Remarks: SINTERED BRAKE PAD,SUMITOMO, WATERPROOF,WITH BRAKE SWITCH,OPTIONAL
Alternative parts:
Specification: SUMITOMO PLUG+SINTERED PAD
Price: 489,90 € : 489,90 €
-+
01
P/N (SKU): 7000-080100-10000
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2021-02-26
Remarks: SUMITOMO, OPTIONAL
Alternative parts: 7000-080100-20000
Specification: SUMITOMO PLUG
Price: 422,20 € : 422,20 €
02
P/N (SKU): 9060-081010
Part Name: REAR BRAKE PAD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 16,30 € : 16,30 €
-+
02
P/N (SKU): 7000-0801A0
Part Name: REAR BRAKE PAD
Effective: 2021-02-26
Remarks: SIINTERED BRAKE PAD, AFTER-SALE,OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 28,60 € : 28,60 €
-+
03
P/N (SKU): 4060-080800
Part Name: RH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 62,30 € : 62,30 €
-+
03
P/N (SKU): 7000-080800
Part Name: RH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Remarks: SINTERED BRAKE PAD/OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 78,10 € : 78,10 €
-+
04
P/N (SKU): 30006-080025840
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts: 30006-080025810
Specification: M8x25
Price: 0,55 € : 0,55 €
05
P/N (SKU): 5190-080104
Part Name: SEAL GASKET
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 7000-080110
Part Name: RH LOWER FLUID HOSE, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 29,30 € : 29,30 €
-+
07
P/N (SKU): 7000-080103
Part Name: CLAMP BOLT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 7000-080120
Part Name: LOWER FLUID HOSE, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 23,80 € : 23,80 €
-+
09
P/N (SKU): 9010-080101-B000
Part Name: BANJO BOLT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 7000-080102
Part Name: T-JOINT
Effective: 2021-02-26
Alternative parts:
Price: 11,40 € : 11,40 €
-+
11
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: M6x30
Price: 0,55 € : 0,55 €
12
P/N (SKU): 9060-080101
Part Name: FLUID HOSE, BRAKE FLUID RESERVOIR
Effective: 2021-02-26
Alternative parts:
Price: 1,85 € : 1,85 €
-+
13
P/N (SKU): 7000-080130
Part Name: FRONT FLUID HOSE, REAR BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 47,30 € : 47,30 €
-+
14
P/N (SKU): 4060-080200
Part Name: MASTER CYLINDER
Effective: 2021-02-26
Alternative parts:
Price: 133,20 € : 133,20 €
-+
15
P/N (SKU): 7020-080160-1000
Part Name: SWITCH, REAR BRAKE
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts:
Specification: SUMITOMO PLUG
Price: 25,50 € : 25,50 €
-+
16
P/N (SKU): 9060-081200-1000
Part Name: FIXING BRACKET, BRAKE PEDAL
Effective: 2021-02-26
Alternative parts:
Price: 20,50 € : 20,50 €
-+
17
P/N (SKU): 9030-080110
Part Name: FLUID RESERVOIR
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
18
P/N (SKU): 9060-080810
Part Name: FRONT BRAKE PAD, RH
Effective: 2021-02-26
Alternative parts:
Price: 16,30 € : 16,30 €
-+
18
P/N (SKU): 7000-0808A0
Part Name: FRONT BRAKE PAD, RH
Effective: 2021-02-26
Remarks: SIINTERED BRAKE PAD, AFTER-SALE,OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 25,30 € : 25,30 €
-+
19
P/N (SKU): 30006-060016840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: M6x16
Price: 0,55 € : 0,55 €
20
P/N (SKU): 9060-105002
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
21
P/N (SKU): 9060-081300
Part Name: BRAKE PEDAL ASSY
Effective: 2021-02-26
Alternative parts: 5BWV-081300-1000
Price: 38,10 € : 38,10 €
22
P/N (SKU): 9060-080003
Part Name: RETURN SPRING
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
23
P/N (SKU): 30107-060040440
Part Name: SCREW M6x40
Effective: 2021-02-26
Alternative parts: 30107-060040410
Specification: M6x40
Price: 0,55 € : 0,55 €
24
P/N (SKU): 30200-060840
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30200-060810
Specification: M6
Price: 0,55 € : 0,55 €
25
P/N (SKU): 7000-080140
Part Name: LH FLUID HOSE (LOWER), REAR BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 16,20 € : 16,20 €
-+
26
P/N (SKU): 7000-080160
Part Name: RH FLUID HOSE (LOWER), REAR BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 21,60 € : 21,60 €
-+
27
P/N (SKU): 30102-102035840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
28
P/N (SKU): 7000-080170
Part Name: REAR BRAKE CALIPER, RH
Effective: 2021-02-26
Alternative parts:
Price: 63,40 € : 63,40 €
-+
28
P/N (SKU): 7000-080170-10000
Part Name: REAR BRAKE CALIPER, RH
Effective: 2021-02-26
Remarks: SINTERED BRAKE PAD/OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 82,40 € : 82,40 €
-+
29
P/N (SKU): 7000-080150
Part Name: REAR BRAKE CALIPER, LH
Effective: 2021-02-26
Alternative parts:
Price: 63,40 € : 63,40 €
-+
29
P/N (SKU): 7000-080150-10000
Part Name: REAR BRAKE CALIPER, LH
Effective: 2021-02-26
Remarks: SINTERED BRAKE PAD/OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 82,40 € : 82,40 €
-+
30
P/N (SKU): 4060-080900
Part Name: LH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SILVER WHITE
Price: 62,30 € : 62,30 €
-+
30
P/N (SKU): 7000-080900
Part Name: LH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Remarks: SINTERED BRAKE PAD/OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 78,10 € : 78,10 €
-+
31
P/N (SKU): 30306-120142
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
32
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ3.2×22
Price: 0,55 € : 0,55 €
-+
33
P/N (SKU): 9010-080104
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
34
P/N (SKU): 9010-080405
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
35
P/N (SKU): 9060-080910
Part Name: FRONT BRAKE PAD, LH
Effective: 2021-02-26
Alternative parts:
Price: 16,30 € : 16,30 €
-+
35
P/N (SKU): 7000-0809A0
Part Name: FRONT BRAKE PAD, LH
Effective: 2021-02-26
Remarks: SIINTERED BRAKE PAD, AFTER-SALE,OPTIONAL
Alternative parts:
Specification: SINTERED PAD
Price: 25,30 € : 25,30 €
-+
36
P/N (SKU): 9030-080103
Part Name: CLAMP BOLT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
