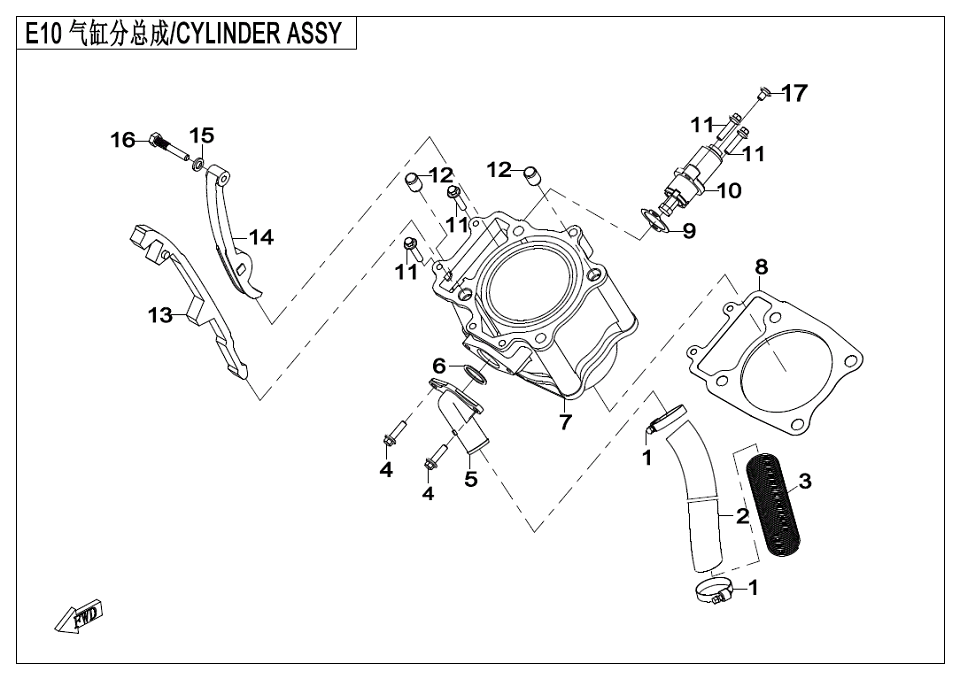

CYLINDER BODY - E10

CYLINDER BODY - E10

No.

01
P/N (SKU): 0180-023500-0030
Part Name: CLAMP, WATER HOSE
Effective: 2023-06-14
Alternative parts: 9010-180007
Price: 1,25 € : 1,25 €
02
P/N (SKU): 0180-023006
Part Name: WATER INLET HOSE, CYLINDER
Effective: 2023-06-14
Alternative parts:
Price: 13,30 € : 13,30 €
-+
03
P/N (SKU): 0180-023005-0050
Part Name: JACKET, WATER HOSE
Effective: 2023-06-14
Alternative parts:
Price: 4,10 € : 4,10 €
-+
04
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2023-06-14
Alternative parts:
Specification: M6x22
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 0180-023001-0080
Part Name: WATER INLET PORT
Effective: 2023-06-14
Alternative parts:
Price: 6,10 € : 6,10 €
-+
06
P/N (SKU): 0180-023002
Part Name: O-SEAL RING 24x2.5
Effective: 2023-06-14
Alternative parts:
Specification: 24x2.5
Price: 1,05 € : 1,05 €
-+
07
P/N (SKU): 0180-023100
Part Name: CYLINDER ASSY
Effective: 2023-06-14
Alternative parts:
Price: 133,70 € : 133,70 €
-+
08
P/N (SKU): 0180-023004
Part Name: GASKET, CYLINDER
Effective: 2023-06-14
Alternative parts:
Price: 7,15 € : 7,15 €
-+
09
P/N (SKU): 0180-023003
Part Name: GASKET, TENSIONER
Effective: 2023-06-14
Alternative parts:
Price: 1,05 € : 1,05 €
-+
10
P/N (SKU): 0180-023200-0080
Part Name: TENSIONER ASSY
Effective: 2023-06-14
Alternative parts:
Price: 12,10 € : 12,10 €
-+
11
P/N (SKU): 0010-021017-0030
Part Name: BOLT M6x25
Effective: 2023-06-14
Alternative parts: 0010-021017-0010
Specification: M6x25
Price: 0,55 € : 0,55 €
12
P/N (SKU): 0180-011005
Part Name: DOWEL PIN Dia 13x18
Effective: 2023-06-14
Alternative parts:
Specification: Dia13x18
Price: 1,65 € : 1,65 €
-+
13
P/N (SKU): 0180-023400
Part Name: CHAIN GUIDE
Effective: 2023-06-14
Alternative parts:
Price: 10,20 € : 10,20 €
-+
14
P/N (SKU): 0180-023300
Part Name: TENSION PLATE ASSY
Effective: 2023-06-14
Alternative parts:
Price: 10,50 € : 10,50 €
-+
15
P/N (SKU): 0010-021016
Part Name: WASHER 8
Effective: 2023-06-14
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 0180-023007-0030
Part Name: TENSIONER PLATE BOLT
Effective: 2023-06-14
Alternative parts: 0180-023007-0010
Price: 2,35 € : 2,35 €
-+
17
P/N (SKU): 0040-014001
Part Name: CROSS SCREW
Effective: 2023-06-14
Alternative parts:
Price: 0,55 € : 0,55 €
-+
