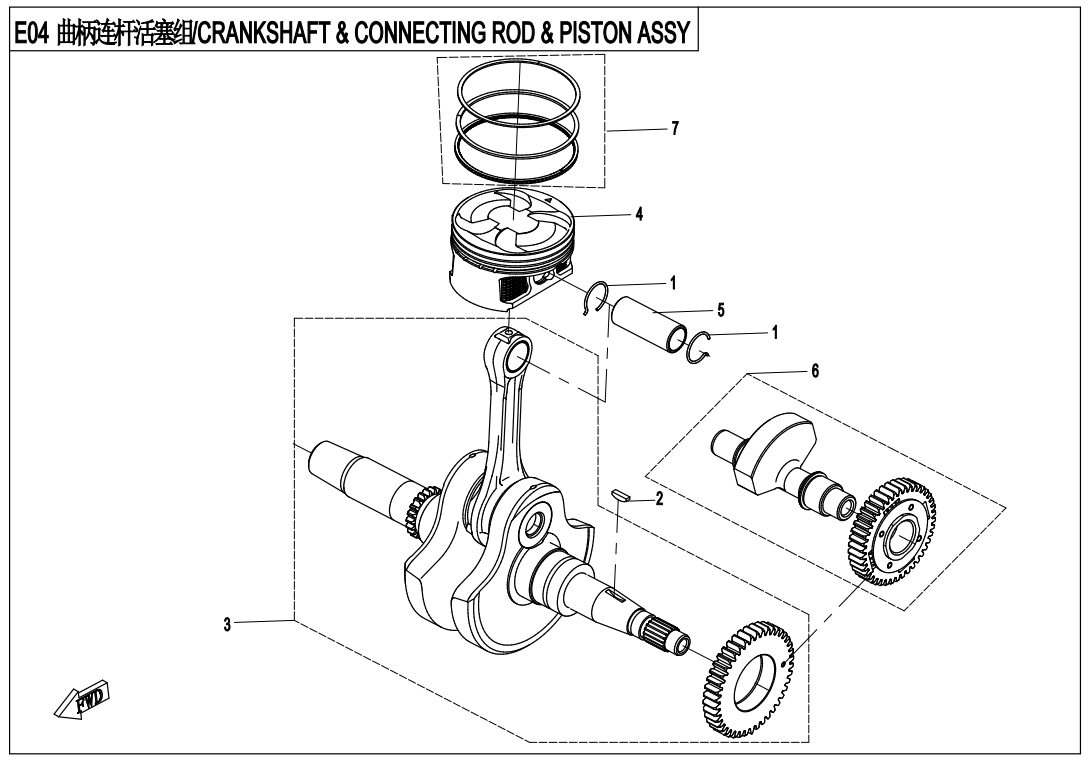

CRANKSHAFT,CONNECTING ROD,PISTON ASSY. - E04

CRANKSHAFT,CONNECTING ROD,PISTON ASSY. - E04

No.

01
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
02
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
03
P/N (SKU): 0GR0-041000-00010
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Alternative parts: 0GR0-041000-10013
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 272,40 € : 272,40 €
03
P/N (SKU): 0GR0-041000-00020
Part Name: CRANKSHAFT ASSEMBLY
Effective: 2021-02-26
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 272,40 € : 272,40 €
-+
04
P/N (SKU): 0800-040001-10010
Part Name: PISTON
Effective: 2021-02-26
Remarks: (small)MARK“Ⅰ” / 90.94-90.95mm
Alternative parts: 0800-040001-20011
Price: 57,90 € : 57,90 €
04
P/N (SKU): 0800-040001-10020
Part Name: PISTON
Effective: 2021-02-26
Remarks: (big)MARK“Ⅱ”/90.95-90.96mm
Alternative parts: 0800-040001-20021
Price: 57,90 € : 57,90 €
05
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2021-02-26
Alternative parts: 0800-040002-00001
Price: 8,05 € : 8,05 €
-+
06
P/N (SKU): 0GR0-160000
Part Name: BALANCE SHAFT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 130,60 € : 130,60 €
-+
07
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUPPLIERS:DY
Price: 43,80 € : 43,80 €
-+
