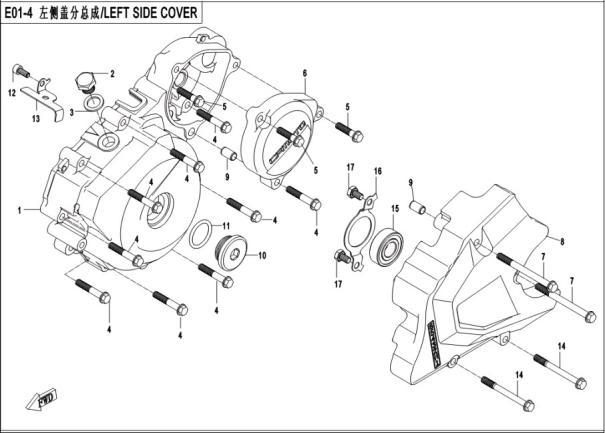

LEFT CRANKCASE COVER ASSY - E01-4

No.

01
P/N (SKU): 0A80-014001-1B20
Part Name: FRONT COVER, LH
Effective: 2021-02-26
Remarks: MATTE BLACK
Alternative parts:
Specification: MATTE BLACK
Price: 60,70 € : 60,70 €
-+
02
P/N (SKU): 0A70-014007
Part Name: BOLT PLUG
Effective: 2021-02-26
Alternative parts: 0A70-014007-00001
Price: 0,95 € : 0,95 €
03
P/N (SKU): 0010-021014
Part Name: WASHER 12
Effective: 2021-02-26
Alternative parts:
Specification: 12
Price: 1,65 € : 1,65 €
-+
04
P/N (SKU): 0010-013008-0030
Part Name: BOLT M6x35
Effective: 2021-02-26
Remarks: is replaced by 0010-013008-0010
Alternative parts: 0010-013008-0010
Specification: M6x35
Price: 0,55 € : 0,55 €
05
P/N (SKU): 0010-021017-0030
Part Name: BOLT M6x25
Effective: 2021-02-26
Remarks: is replaced by 0010-021017-0010
Alternative parts: 0010-021017-0010
Specification: M6x25
Price: 0,55 € : 0,55 €
06
P/N (SKU): 0A80-014003-0B20
Part Name: COVER, GEARBOX
Effective: 2021-02-26
Alternative parts: 0A80-014003-1B20
Specification: MATTE BLACK
Price: 8,10 € : 8,10 €
07
P/N (SKU): 0010-060012-0030
Part Name: BOLT M6x30
Effective: 2021-02-26
Remarks: is replaced by 0010-060012-0010
Alternative parts: 0010-060012-0010
Specification: M6x30
Price: 0,55 € : 0,55 €
08
P/N (SKU): 0A80-014002-1B20
Part Name: REAR COVER, LH
Effective: 2021-02-26
Remarks: MATTE BLACK
Alternative parts:
Specification: MATTE BLACK
Price: 35,20 € : 35,20 €
-+
09
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: 8X14
Price: 1,05 € : 1,05 €
-+
10
P/N (SKU): 0A70-014005-0B20
Part Name: BOLT CAP, LH FRONT SIDE COVER
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 3,70 € : 3,70 €
-+
11
P/N (SKU): 0A70-014006
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 22.7x3.1
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 30102-050012840
Part Name: INNER HEX SCREW M5x12
Effective: 2021-02-26
Alternative parts: 30102-050012810
Specification: M5x12
Price: 0,55 € : 0,55 €
13
P/N (SKU): 0A80-014005
Part Name: WIRE CLAMP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 0010-011017-0030
Part Name: BOLT M6x60
Effective: 2021-02-26
Remarks: is replaced by 0010-011017-0010
Alternative parts: 0010-011017-0010
Specification: M6x60
Price: 0,55 € : 0,55 €
15
P/N (SKU): 30499-01504
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6202
Price: 2,95 € : 2,95 €
-+
16
P/N (SKU): 0A70-011006
Part Name: OIL SEAL PRESS, COUNTERSHAFT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 30004-060010850
Part Name: BOLT M6x10
Effective: 2021-02-26
Alternative parts:
Specification: M6x10
Price: 0,55 € : 0,55 €
-+
